Geared Stepper Motor
Created with Pixso.

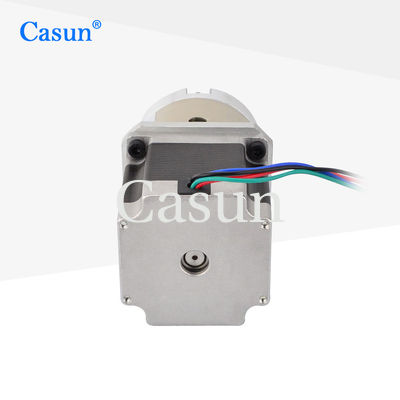

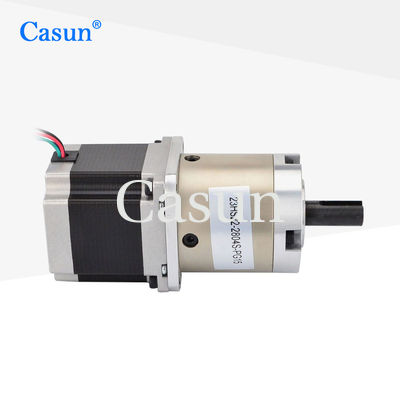

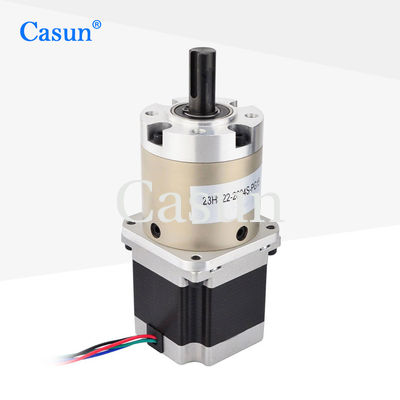

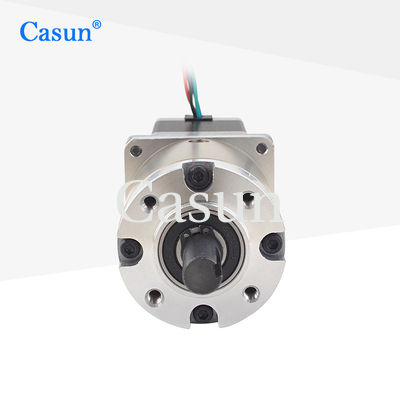

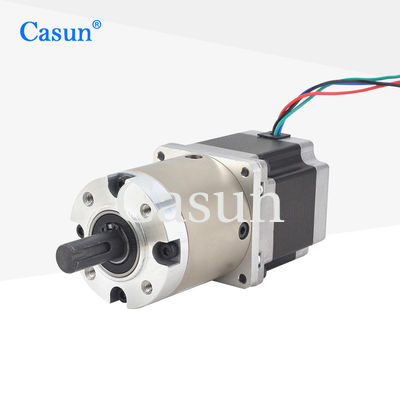

NEMA23 Ratio 15/1 With Gearbox Planetary Reducer 57mm Stepping Motor for CNC

name

NEMA23 Ratio 15/1 With Gearbox Planetary Reducer 57mm Stepping Motor for CNC

Brand Name: Casun
Model Number: 23HS22-2804S-PG15
MOQ: 1PC
Price: $22.49-$27
Payment Terms: D/A, T/T, L/C, D/P
Supply Ability: 40000+PCS+Month
Detail Information
Product Description
Detail Information
Place of Origin:
CHINA
Certification:
CE,ROSH,ISO
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Reduction Ratio:
15.3：1
Rated Current:
2.8A
Motor Weight:
1.1kg
Packaging Details:
Carton:38x29x18cm
Highlight:

57mm NEMA23 Planetary Reducer

,

CNC NEMA23 Planetary Reducer

,

NEMA23 Planetary Reducer

Product Description

Stepper motors themselves have good positioning accuracy, and when combined with reducers, they can achieve higher positioning accuracy at low speeds.

3D printers, CNC machine tools, automated production lines, and industrial robots.



Features:

  • Versions in unipolar or bipolar are offered.

  • Deliver "multiple international certifications" for electrical and high-tech devices.

  • Available in single or double shaft versions

  • High torque and high precision

  • offer custom services

Dimensions

NEMA23 Ratio 15/1 With Gearbox Planetary Reducer 57mm Stepping Motor for CNC 0





Motor Specifications

Step Angel



1.8 °

Fram Size



57 mm

Number of Phase



2 Phase

Rated Current



2.8 A

Holding Torque



1250mN.m

Resistance



0.9 hm

Inductance



2.5 mH

Rotor Inertia



260 g-cm²

Motor weight



1.1 kg

Gear Reduction Ratio



15.3:1

Connection



Bipolar



Operating Specifications



Motor



Step Angle: 1.8°

Maximum  Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min



Gear Box



Housing Material:Metal

Bearing at Output:Ball Bearings

Max.Radial Load(12mm from flange):≤250N

Max.Shaft Axial Load:≤100N

Radial Play of Shaft (near to Flange):≤0.08m

Axial Play of Shaft:≤0.4mm

Backlash at No-load:≤2.5°













Torque Curves









Submodels

Motor Length Length of Gearbox Raio Efficiency
41 mm

54 mm

76 mm

83 mm

100 mm
 		 48 mm 3.6 90%
4.25
60 mm 12.96 80%
15.3
18.1
72 mm 46.66 70%
55.08
65.025
76.77




Download



If our standard motor cannot meet your needs,

we can customize the motor according to your needs


Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:
            Encoder          |               Brake           |              Gearbox            |           Shaft

NEMA23 Ratio 15/1 With Gearbox Planetary Reducer 57mm Stepping Motor for CNC 1 NEMA23 Ratio 15/1 With Gearbox Planetary Reducer 57mm Stepping Motor for CNC 2 NEMA23 Ratio 15/1 With Gearbox Planetary Reducer 57mm Stepping Motor for CNC 3 NEMA23 Ratio 15/1 With Gearbox Planetary Reducer 57mm Stepping Motor for CNC 4





Please click the "Get  a quote" button below to tell us your requirements.











Tags:

57mm NEMA23 Planetary Reducer

CNC NEMA23 Planetary Reducer

NEMA23 Planetary Reducer
