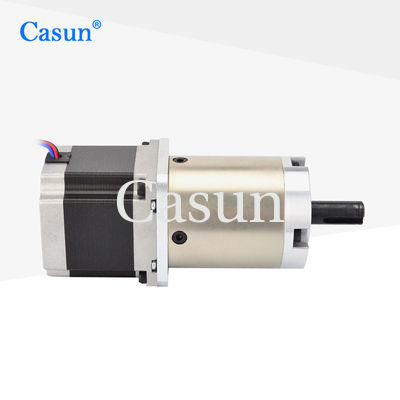

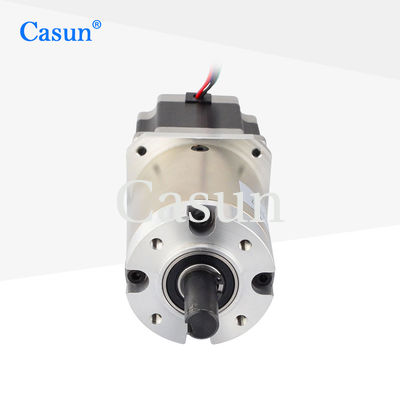

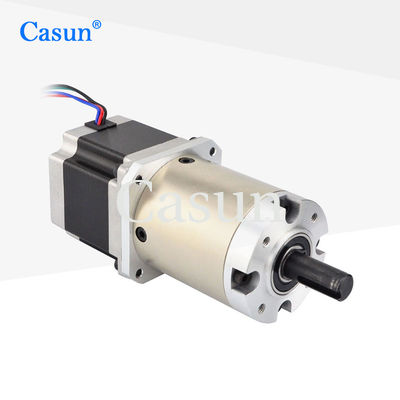

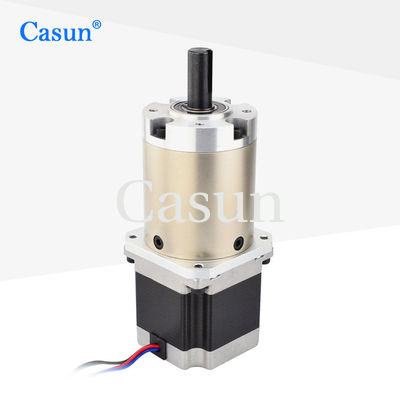

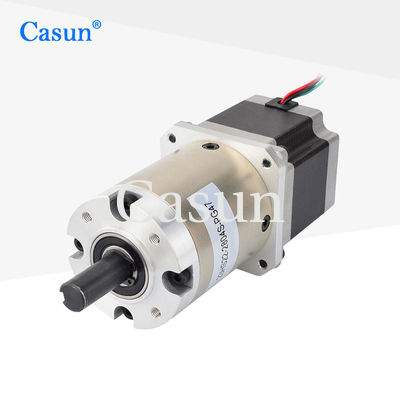

Gear Reduction Ratio 1/47 NEMA 23 Stepper Motor 57×57×54mm With CE ISO

Gear Reduction Ratio 1/47 NEMA 23 Stepper Motor 57×57×54mm With CE ISO

Brand Name:	Casun
Model Number:	23HS22-2804S-PG47
MOQ:	1PC
Price:	$22.49-$27
Payment Terms:	D/A, T/T, L/C, D/P
Supply Ability:	40000+PCS+Month

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

CE,ROSH,ISO

Customized:

The Motor Can Be Designed &manufactured With Customized Request.

Rated Current:

2.8A

Holding Torque:

1.25N.m

Packaging Details:

Carton:38x29x18cm

Highlight:

57×57×54mm NEMA 23 Stepper Motor

2.8A NEMA 23 Stepper Motor

NEMA 23 Stepper Motor

Product Description

Gear Reduction Ratio 1/47 NEMA 23 Stepper Motor 57×57×54mm With CE ISO

The NEMA 23 reduction motor reduces speed and increases torque through a reduction mechanism, which can output greater torque at low speeds and is suitable for situations where high torque is required. Widely used in fields such as machine tool equipment, automated production lines, 3D printers, etc.

Key Features

Versions in unipolar or bipolar are offered
Deliver multiple international certifications for electrical and high-tech devices
Available in single or double shaft versions
Ten-year warranty and purchase with confidence
Customizations on request

Dimensions

Motor Specifications

Step Angle	1.8°
Frame Size	57 mm
Number of Phase	2 Phase
Rated Current	2.8 A
Holding Torque	1250 mN.m
Resistance	0.9 Ω
Inductance	2.5 mH
Rotor Inertia	260 g-cm²
Motor Weight	1.1 kg
Gear Reduction Ratio	46.66:1
Connection	Bipolar

Operating Specifications

Motor

Step Angle	1.8°
Maximum Temperature	80°C maximum
Ambient Temperature	-20°C to 50°C
Storage Temperature	-20°C to 100°C
Humidity Range	85% or less, non-condensing
Magnet Wire Insulation	Class B 130°C
Insulation Resistance	100M Ohm at 500 VDC
Dielectric Strength	500 VDC for 1 min

Gear Box

Housing Material	Metal
Bearing at Output	Ball Bearings
Max. Radial Load (12mm from flange)	≤250N
Max. Shaft Axial Load	≤100N
Radial Play of Shaft (near to Flange)	≤0.08mm
Axial Play of Shaft	≤0.4mm
Backlash at No-load	≤2.5°

Submodels

Motor Length	Length of Gearbox	Ratio	Efficiency
41 mm	48 mm	3.6	90%
54 mm		4.25	90%
76 mm		12.96	80%
83 mm		15.3	80%
100 mm		18.1	80%
Various lengths	60 mm	46.66	70%
Various lengths	72 mm	55.08, 65.025, 76.77	70%

Customization Options

If our standard motor cannot meet your needs, we can customize the motor according to your requirements. Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Encoder

Brake

Gearbox

Shaft
