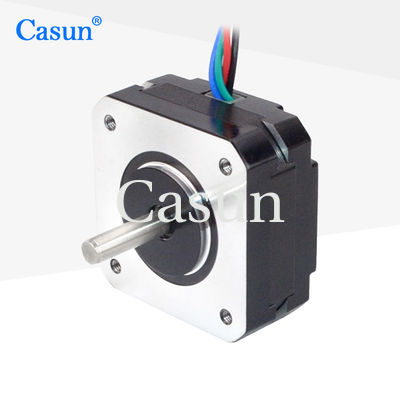

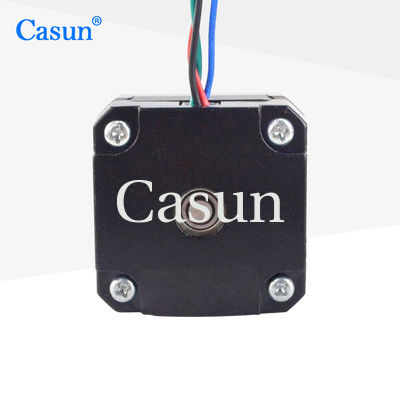

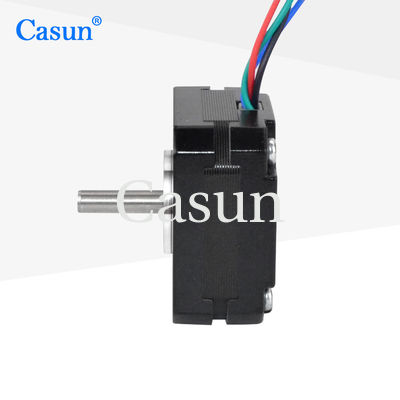

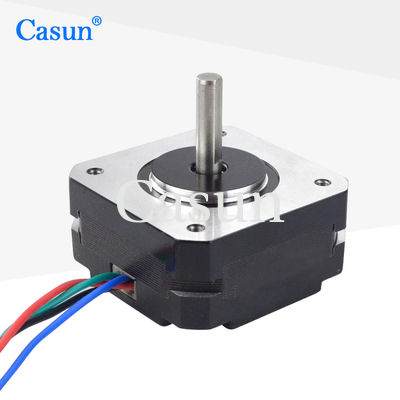

Thin Stepper Motor 20mm Body 130mN.m 1.0A For 3D Printer With CE

Thin Stepper Motor 20mm Body 130mN.m 1.0A For 3D Printer With CE

Brand Name:	CASUN
Model Number:	17HS08-1004S
MOQ:	1pcs-10pcs
Price:	$4.54/pcs - $6.34/pcs
Payment Terms:	L/C, D/A, T/T
Supply Ability:	40000+PCS+Month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE,ROHS,ISO

Step Angle:

1.8degree

Phase:

Rated Voltage:

3.5V

Rate Current:

Holding Torque:

130mN.m

Customized:

The Motor Can Be Designed &manufactured With Customized Request.

Packaging Details:

Carton:38x29xc14m

Highlight:

1.0A Thin Stepper Motor

130mN.m Thin Stepper Motor

3D printer Thin Stepper Motor

Product Description

Thin Stepper Motor 20mm Body 130mN.m 1.0A For 3D Printer With CE

The 42mm Hybrid Stepper Motor Series offers powerful holding torque in a variety of sizes. Use with a microstepping driver to reduce vibration and achieve higher step resolution.

Key Features

Bipolar or unipolar versions available
Hybrid stepper construction
Available in single or double shaft versions
Established in China for 12 years serving over 800 customers
Ten-year warranty for purchase confidence

Dimensions

Motor Specifications

Step Angle	1.8°
Frame Size	20 mm
Number of Phase	2 Phase
Rated Current	1 A
Resistance	3.5 Ohm
Rotor Inertia	2 g-cm²
Motor Weight	0.1 kg
Connection	Bipolar

Operating Specifications

Step Angle: 1.8°

Maximum Temperature: 80°C maximum

Ambient Temperature: -20°C to 50°C

Storage Temperature: -20°C to 100°C

Humidity Range: 85% or less, non-condensing

Magnet Wire Insulation: Class B 130°C

Insulation Resistance: 100M Ohm at 500 VDC

Dielectric Strength: 500 VDC for 1 min

Shaft Radial Play: 0.02Max. (450g-load)

Shaft Axial Play: 0.08Max. (450g-load)

Max. radial force: 28N (20mm from the flange)

Max. axial force: 10N

Customization Services

If our standard motor cannot meet your needs, we can customize the motor according to your requirements. Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, travel, linear travel per step, etc.

Frequently Asked Questions

Who are we?

We are based in Guangdong, China, established in 2011. We serve Domestic Market (63.00%), Western Europe (12.00%), North America (9.00%), Eastern Asia (8.00%), and other global markets. Our team consists of 51-100 professionals.

How can we guarantee quality?

Always provide pre-production samples before mass production; Always conduct final inspection before shipment.

What can you buy from us?

Stepper Motor, BLDC Motor

Why should you buy from us instead of other suppliers?

We specialize in producing and selling stepper motors for more than 11 years.

What services can we provide?

Accepted Delivery Terms: FOB, CFR, CIF, EXW, Express Delivery
Accepted Payment Currency: USD, CNY
Accepted Payment Type: T/T, L/C, D/P D/A, PayPal
Languages Spoken: English, Chinese, Japanese
