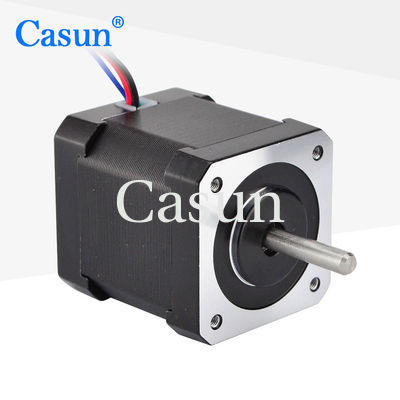

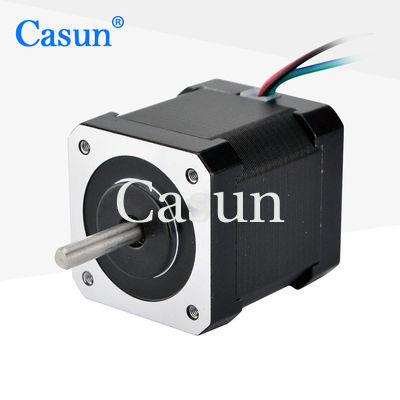

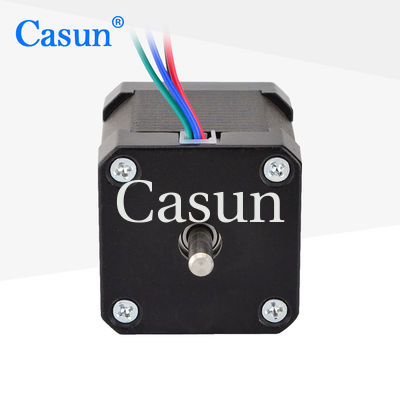

NEMA 17 Dual Axis Stepper Motor 42×42×48mm 1.68A With Packaging Equipment

name

NEMA 17 Dual Axis Stepper Motor 42×42×48mm 1.68A With Packaging Equipment

Brand Name: Casun
Model Number: 42SHD4438-24SH
MOQ: 1PC
Price: $3.14-$5
Payment Terms: D/A, T/T, L/C, D/P
Supply Ability: 40000+PCS+Month
Detail Information
Product Description
Detail Information
Place of Origin:
CHINA
Certification:
CE,ROHS,ISO
Step Angel:
1.8°
Holding Torque:
440mN.m
Current:
1.68A
Motor Length:
48mm
Shaft:
Dual Shaft 24mm Length
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Packaging Details:
Carton:36x29x14cm
Highlight:

42×42×48mm Dual Axis Stepper Motor

,

Packaging Equipment Dual Axis Stepper Motor

,

1.68A Dual Axis Stepper Motor

Product Description

The dual axis motor occupies less space, which is beneficial for the miniaturization and lightweight design of the equipment.

Widely used in industrial automation, mechanical equipment and other fields.



Features:

  • Expertise in professional research and development manufacturing

  • For high-tech industry and electronic industry equipment

  • Offering high torque and precision

  • Our engineers will be in touch within 48 hours to provide the best solution

  • Offers a 10-year warranty and buy with confidence

Appearance

NEMA 17 Dual Axis Stepper Motor 42×42×48mm 1.68A With Packaging Equipment 0

Dimensions

NEMA 17 Dual Axis Stepper Motor 42×42×48mm 1.68A With Packaging Equipment 1

Motor Specifications

Step Angel

1.8 °

Fram Size

42 mm

Number of Phase

2 Phase

Rated Current

1.68 A

Holding Torque

440 mN.m

Resistance

1.65 ohm

Inductance

2.8 mH

Rotor Inertia

72 g-cm²

Motor weight

0.38 kg

Number of leads

4

Connection

Bipolar

Operating Specifications

Step Angle: 1.8°

Maximum  Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min







Torque Curves













Submodels

Model Holding Torque Step Angle Motor Length Type of Shaft Rated Current
42SHD4950 0.13N.m 1.8° 20mm D Shaft-20mm 1.0A
42SHD4003 0.26N.m 1.8° 34mm D Shaft-20mm 0.4A
42SHD0261 0.45N.m 1.8° 40mm D Shaft-20mm 1.68A
42SHD4425 0.59N.m 1.8° 48mm D Shaft-24mm 2.0A
42SHD4813 0.8N.m 1.8° 60mm D Shaft-24mm 2.1A





Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs


Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:

Encoder

Brake

Gearbox

Shaft
NEMA 17 Dual Axis Stepper Motor 42×42×48mm 1.68A With Packaging Equipment 2 NEMA 17 Dual Axis Stepper Motor 42×42×48mm 1.68A With Packaging Equipment 3 NEMA 17 Dual Axis Stepper Motor 42×42×48mm 1.68A With Packaging Equipment 4 NEMA 17 Dual Axis Stepper Motor 42×42×48mm 1.68A With Packaging Equipment 5



Please click the "Get a quote" button below to tell us your requirements.
