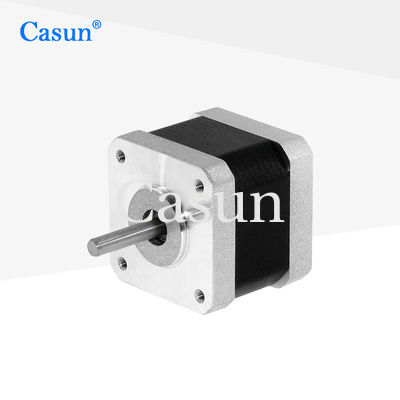

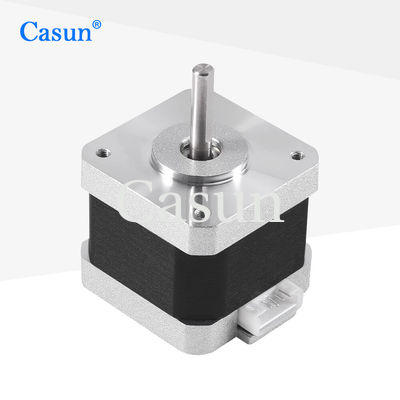

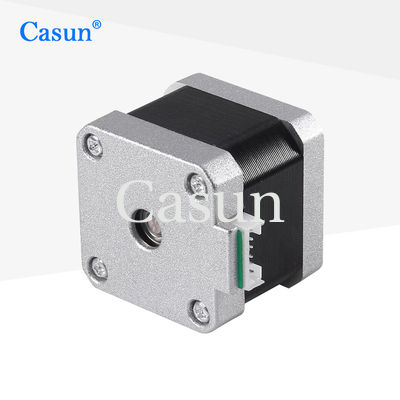

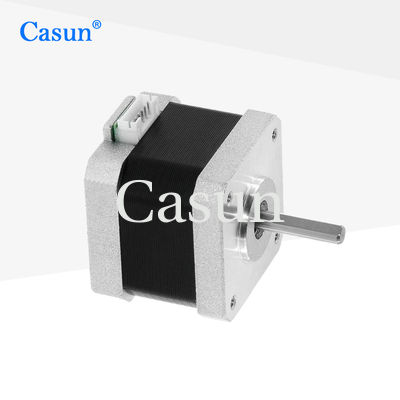

Stepper Motor 40mm body 500mN.m 1.5A for 3D printers and robots

Stepper Motor 40mm body 500mN.m 1.5A for 3D printers and robots

Brand Name:	CASUN
Model Number:	42SHD0217-24B
MOQ:	1pcs-10pcs
Price:	$4.54/pcs - $6.34/pcs
Payment Terms:	L/C, D/A, T/T
Supply Ability:	40000+PCS+Month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE,ROHS,ISO

Step Angle:

1.8degree

Phase:

Rated Voltage:

3.75V

Rate Current:

1.5A

Holding Torque:

500mN.m

Customized:

The Motor Can Be Designed &manufactured With Customized Request.

Packaging Details:

Carton:38x29xc14m

Highlight:

500mN.m Stepper Motor

40mm body Stepper Motor

40mm Stepper Motor

Product Description

Stepper Motor 40mm body 500mN.m 1.5A for 3D printers and robots

The 42mm Hybrid Stepper Motor Series offers powerful holding torque in a variety of sizes. Use with a microstepping driver to reduce vibration and achieve higher step resolution.

Key Features

Exclusive distribution channel openings
OEM/ODM contract production capabilities
Custom services available
Established in China for 12 years, serving over 800 customers
Ten-year warranty for purchase confidence

Dimensions

Motor Specifications

Step Angle	1.8°
Frame Size	40 mm
Number of Phase	2 Phase
Rated Current	1.5 A
Resistance	2.2 Ohm
Inductance	5.0 mH
Rotor Inertia	57 g-cm²
Motor Weight	0.24 kg
Connection	Bipolar

Operating Specifications

Maximum Temperature: 80°C maximum
Ambient Temperature: -20°C to 50°C
Storage Temperature: -20°C to 100°C
Humidity Range: 85% or less, non-condensing
Magnet Wire Insulation: Class B 130°C
Insulation Resistance: 100M Ohm at 500 VDC
Dielectric Strength: 500 VDC for 1 min
Shaft Radial Play: 0.02Max. (450g-load)
Shaft Axial Play: 0.08Max. (450g-load)
Max. radial force: 28N (20mm from the flange)
Max. axial force: 10N

Customization Services

If our standard motor cannot meet your needs, we can customize the motor according to your requirements. Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, travel, linear travel per step, and more.

Frequently Asked Questions

Who are we?

We are based in Guangdong, China, established in 2011. We serve Domestic Market (63.00%), Western Europe (12.00%), North America (9.00%), Eastern Asia (8.00%), Northern Europe (2.00%), and other global markets. Our office employs 51-100 people.

How can we guarantee quality?

We always provide a pre-production sample before mass production and conduct final inspection before shipment.

What can you buy from us?

Stepper Motor, BLDC Motor

Why should you buy from us instead of other suppliers?

We specialize in producing and selling stepper motors for more than 11 years.

What services can we provide?

Accepted Delivery Terms: FOB, CFR, CIF, EXW, Express Delivery
Accepted Payment Currency: USD, CNY
Accepted Payment Type: T/T, L/C, D/P D/A, PayPal
Languages Spoken: English, Chinese, Japanese

Please click the "Get a quote" button below to tell us your requirements.
