Casun Nema 14 Hollow Shaft Stepper Motor High Precision 2.7 V DC 1.0 AMP for CNC Machine

Casun Nema 14 Hollow Shaft Stepper Motor High Precision 2.7 V DC 1.0 AMP for CNC Machine

Brand Name:	Casun
Model Number:	P35SHD4113-21SH
MOQ:	1PC
Price:	$4~$4.6
Payment Terms:	D/A, T/T, L/C, D/P
Supply Ability:	40000+PCS+Month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE,ROHS,ISO

Phase:

Insulation Class:

Class B

Phase Resistance:

2.7ohm

Current:

1.0A

Voltage:

2.7V

Body Length:

34 Mm

Holding Torque:

140 MN.m

Weight:

0.2 Kg

Shaft Length:

21 Mm

Packaging Details:

Carton:38x29x18cm

Highlight:

CNC Machine Hollow Shaft Stepper Motor

Hollow Shaft Stepper Motor

Nema 14 Hollow Shaft Stepper Motor

Product Description

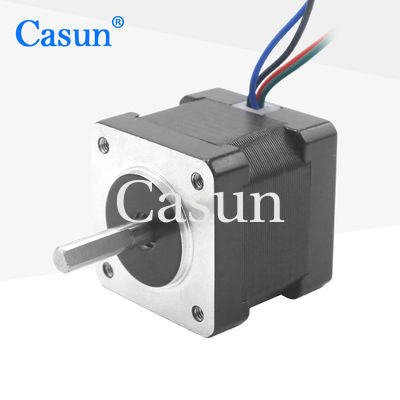

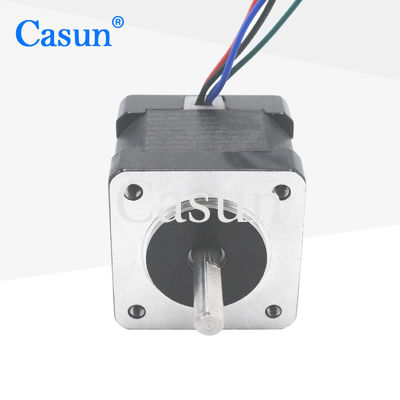

Casun Nema 14 Hollow Shaft Stepper Motor

High precision 2.7V DC 1.0A stepper motor designed specifically for CNC machines. The hollow shaft design enables easy cable routing while maintaining accurate motion control and reliability for demanding automation applications.

Key Features

Bipolar or unipolar versions available
Hybrid stepper construction
Available in single- or double-shaft versions
CE and RoHS approved
Customizations available on request

Dimensions

Motor Specifications

Step Angle	1.8°
Frame Size	34 mm
Number of Phase	2 Phase
Rated Current	1 Amp
Holding Torque	140 mN.m
Resistance	2.7 ohm
Inductance	4.3 mH
Rotor Inertia	14 g.cm²
Motor Weight	0.2 kg
Connection	Bipolar

Operating Specifications

Step Angle	1.8°
Maximum Temperature	80°C maximum
Ambient Temperature	-20°C to 50°C
Storage Temperature	-20°C to 100°C
Humidity Range	85% or less, non-condensing
Magnet Wire Insulation	Class B 130°C
Insulation Resistance	100M Ohm at 500 VDC
Dielectric Strength	500 VDC for 1 min

Encoder Specifications

Voltage	5V
Output	A + A - B + B - Z + Z -

Available Models

Model	Holding Torque	Step Angle	Length	Shaft Type	Rated Current
35SHD0307	80 mN.m	1.8°	20 mm	D Shaft-20mm	0.4A
35SHD0001	100 mN.m	1.8°	26 mm	D Shaft-20mm	0.4A
35SHD0102	150 mN.m	1.8°	34 mm	D Shaft-20mm	0.75A
35SHD0801	230 mN.m	1.8°	40 mm	D Shaft-20mm	0.5A

Custom Motor Solutions

If our standard motor cannot meet your requirements, we can customize the motor according to your specific needs. Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, and more.

Available Options

Please click the "Get a quote" button below to tell us your requirements.
