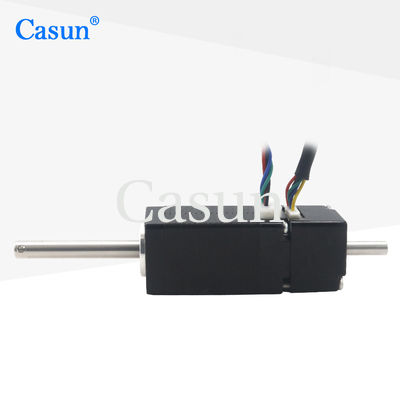

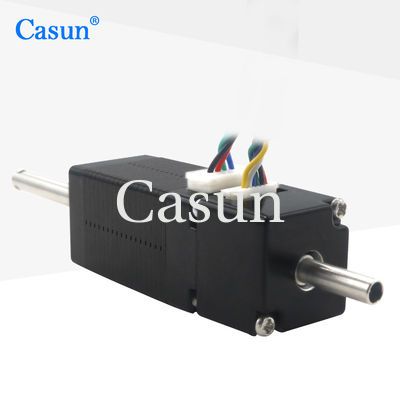

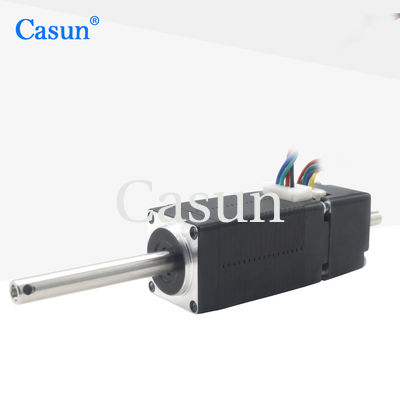

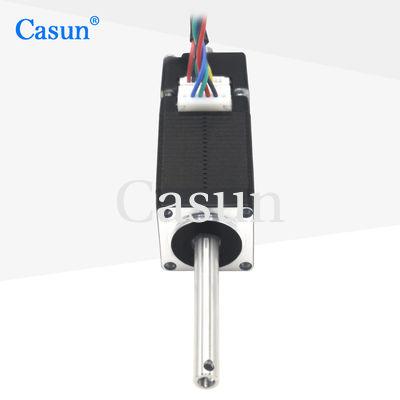

Casun Nema 8 Special Shaft Stepper Motor with Encoder 40mN.m 0.6Amp Light weight

name

Casun Nema 8 Special Shaft Stepper Motor with Encoder 40mN.m 0.6Amp Light weight

Brand Name: Casun
Model Number: 20SHD4255-3SKQ
MOQ: 1PC
Price: $35~$41.77
Payment Terms: D/A, T/T, L/C, D/P
Supply Ability: 40000+PCS+Month
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
CE,ROHS,ISO
Phase:
2
Insulation Class:
Class B
Phase Resistance:
12ohm ± 10%（At 20ssd）
Current:
0.6A
Voltage:
7.5V
Body Length:
38 Mm
Holding Torque:
40 MN.m
Weight:
0.08 Kg
Shaft Length:
36 Mm
Packaging Details:
Carton:38x29x18cm
Product Description

Casun Nema 8 Special Shaft Stepper Motor with Encoder mN.m 0.6 Amp Lightweight

The Casun Nema 8 Special Shaft Stepper Motor features a high-torque 40mN.m output with low power consumption (0.6A), integrated encoder for precise control, and a lightweight design for compact applications. Ideal for automation, robotics, and precision motion systems requiring reliable performance in a small form factor.



Features:

  • Bipolar or unipolar versions available

  • Hybrid stepper construction

  • Available in single- or double-shaft versions

  • CE and RoHS approved

  • Customizations on request

Dimensions

                    Casun Nema 8 Special Shaft Stepper Motor with Encoder 40mN.m 0.6Amp Light weight 0



Motor Specifications



Step Angel



 1.8°

Frame Size



 38 mm

Number of Phase



 2 Phase

Rated Current



 0.6 Amp

Holding Torque



 40 mN.m

Resistance



 12.5 ohm

Inductance



 5.5 mH

Rotor Inertia



 3.8 g.cm²

Motor weight



 0.08 kg

Connection



 Bipolar



Operating Specifications



Motor



Step Angle: 1.8°

Maximum Temperature: 80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range: 85% or less, non-condensing

Magnet Wire Insulation: Class B 130 deg C

Insulation Resistance: 100M Ohm at 500 VDC

Dielectric Strength: 500 VDC for 1 min



Encoder







Voltage: 5 v

Output: A + A - B + B - Z + Z -



Submodels



              Casun Nema 8 Special Shaft Stepper Motor with Encoder 40mN.m 0.6Amp Light weight 1



Download



If our standard motor cannot meet your needs,

we can customize the motor according to your needs


Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:
Encoder | Brake | Gearbox | Shaft

Casun Nema 8 Special Shaft Stepper Motor with Encoder 40mN.m 0.6Amp Light weight 2 Casun Nema 8 Special Shaft Stepper Motor with Encoder 40mN.m 0.6Amp Light weight 3 Casun Nema 8 Special Shaft Stepper Motor with Encoder 40mN.m 0.6Amp Light weight 4 Casun Nema 8 Special Shaft Stepper Motor with Encoder 40mN.m 0.6Amp Light weight 5





Please click the "Get a quote" button below to tell us your requirements.
