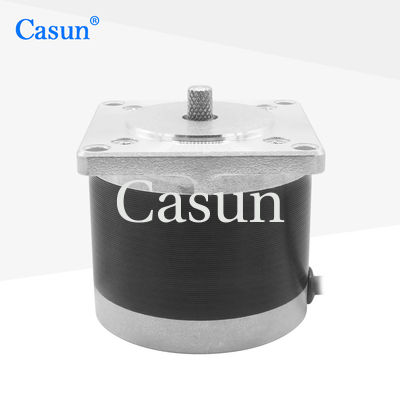

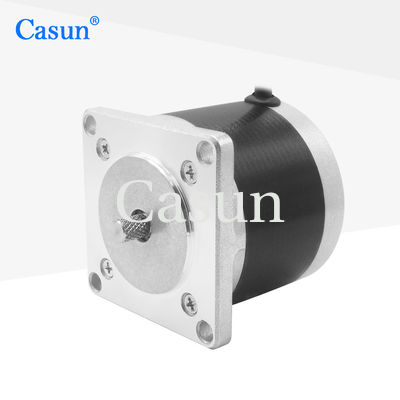

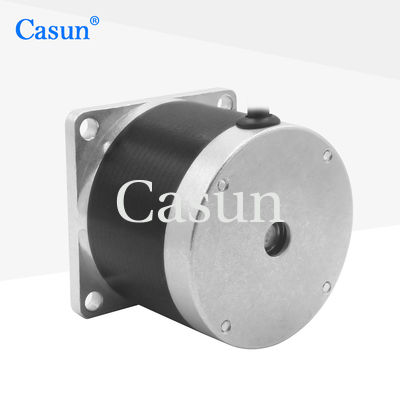

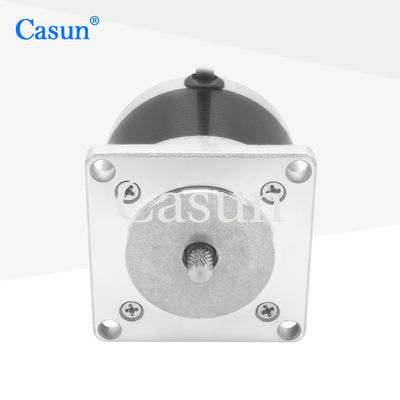

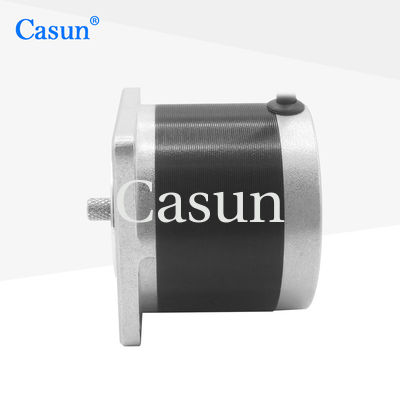

Casun Flat Stepper Motor Nema 23 57*51mm 1000mN.m 2.68V Hybrid Stepper Motor with Gear for Automation

name

Casun Flat Stepper Motor Nema 23 57*51mm 1000mN.m 2.68V Hybrid Stepper Motor with Gear for Automation

Brand Name: Casun
Model Number: 57SHY4601-9P
MOQ: 5PC
Price: $8.39~$10.46
Payment Terms: D/A, T/T, L/C, D/P
Supply Ability: 10000+PCS+Month
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
CE,ROHS,ISO
Holding Torque:
1000 MN.m
Voltage:
2.68V
Current:
4A
Body Length:
51mm
Weight:
0.58 Kg
Phase Resistance:
0.67 Ohm ±10% （At 20℃）
Shaft Length:
9 Mm
Phase:
2
Insulation Class:
Class B
Packaging Details:
Carton:38x29x18cm
Product Description

Casun Flat Stepper Motor Nema 23 57*51mm 1000mN.m 2.68V Hybrid Stepper Motor with Gear for Automation

A compact flat-profile Nema 23 stepper motor (57×51mm) delivering 1000mN.m holding torque at 2.68V, designed for space-constrained automation systems. The integrated gear mechanism enhances torque transmission, making it ideal for robotics, CNC machines, and industrial equipment.



Features:

  • Bipolar or unipolar versions available

  • Hybrid stepper construction

  • Available in single or double shaft versions

  • CE and RoHS approved

  • Customizations on request

Dimensions

                    Casun Flat Stepper Motor Nema 23 57*51mm 1000mN.m 2.68V Hybrid Stepper Motor with Gear for Automation 0



Motor Specifications



Step Angel



 1.8°

Frame Size



 51 mm

Number of Phase



 2 Phase

Rated Current



 4 Amp

Holding Torque



 1000 mN.m

Resistance



 0.67 ohm

Inductance



 2 mH

Rotor Inertia



 220 g.cm²

Motor weight



 0.58 kg

Connection



 Bipolar



Operating Specifications



Motor



Step Angle: 1.8°

Maximum Temperature: 80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range: 85% or less, non-condensing

Magnet Wire Insulation: Class B 130 deg C

Insulation Resistance: 100M Ohm at 500 VDC

Dielectric Strength: 500 VDC for 1 min



Encoder







Voltage: 5 v

Output: A + A - B + B - Z + Z -



Submodels



                    Casun Flat Stepper Motor Nema 23 57*51mm 1000mN.m 2.68V Hybrid Stepper Motor with Gear for Automation 1



Download



If our standard motor cannot meet your needs,

we can customize the motor according to your needs


Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:
Encoder | Brake | Gearbox | Shaft

Casun Flat Stepper Motor Nema 23 57*51mm 1000mN.m 2.68V Hybrid Stepper Motor with Gear for Automation 2 Casun Flat Stepper Motor Nema 23 57*51mm 1000mN.m 2.68V Hybrid Stepper Motor with Gear for Automation 3 Casun Flat Stepper Motor Nema 23 57*51mm 1000mN.m 2.68V Hybrid Stepper Motor with Gear for Automation 4 Casun Flat Stepper Motor Nema 23 57*51mm 1000mN.m 2.68V Hybrid Stepper Motor with Gear for Automation 5





Please click the "Get a quote" button below to tell us your requirements.
