Special Shaft Stepper Motor
Created with Pixso.

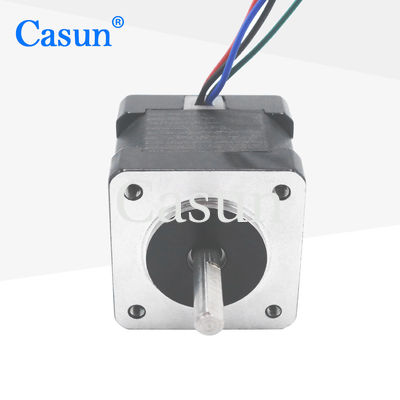

Customizable Hybrid Stepper Motor with Hollow Shaft Nema 14 140mN.m 1.0A with CE RoHS Certificated

name

Customizable Hybrid Stepper Motor with Hollow Shaft Nema 14 140mN.m 1.0A with CE RoHS Certificated

Brand Name: Casun
Model Number: P35SHD4113-21SH
MOQ: 5PC
Price: $3~$4.6
Payment Terms: D/A, T/T, L/C, D/P
Supply Ability: 10000+PCS+Month
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
CE,ROHS,ISO
Holding Torque:
140 MN.m
Voltage:
2.7V
Current:
1A
Body Length:
34mm
Weight:
0.2 Kg
Phase Resistance:
2.7 Ohm ±10% （At 20℃）
Shaft Length:
70 Mm
Phase:
2
Insulation Class:
Class B
Packaging Details:
Carton:38x29x18cm
Highlight:

Nema 14 Hollow Shaft Stepper Motor

,

Hybrid Stepper Motor with Hollow Shaft

Product Description
Customizable Hybrid Stepper Motor with Hollow Shaft Nema 14
A CE/RoHS-certified hybrid stepper motor featuring a hollow shaft design for cable routing applications. Delivers 140 mN.m holding torque at 1.0 A, ideal for medical devices, small robotics, and automation systems.
Key Features
  • Bipolar or unipolar versions available
  • Hybrid stepper construction
  • Available in single or double shaft versions
  • CE and RoHS approved
  • Customizations on request
Dimensions
Customizable Hybrid Stepper Motor with Hollow Shaft Nema 14 140mN.m 1.0A with CE RoHS Certificated 0
Motor Specifications
Step Angle 1.8°
Frame Size 34 mm
Number of Phase 2 Phase
Rated Current 1 Amp
Holding Torque 140 mN.m
Resistance 2.7 ohm
Inductance 4.3 mH
Rotor Inertia 14 g.cm²
Motor Weight 0.2 kg
Connection Bipolar
Operating Specifications
Motor Operating Conditions
Step Angle 1.8°
Maximum Temperature 80°C maximum
Ambient Temperature -20°C to 50°C
Storage Temperature -20°C to 100°C
Humidity Range 85% or less, non-condensing
Magnet Wire Insulation Class B 130°C
Insulation Resistance 100M Ohm at 500 VDC
Dielectric Strength 500 VDC for 1 min
Encoder Specifications
Voltage 5V
Output A + A - B + B - Z + Z -
Submodels
Customizable Hybrid Stepper Motor with Hollow Shaft Nema 14 140mN.m 1.0A with CE RoHS Certificated 1
Customization Options
If our standard motor cannot meet your needs, we can customize the motor according to your requirements. Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.
Available Options
Customizable Hybrid Stepper Motor with Hollow Shaft Nema 14 140mN.m 1.0A with CE RoHS Certificated 2
Encoder
Customizable Hybrid Stepper Motor with Hollow Shaft Nema 14 140mN.m 1.0A with CE RoHS Certificated 3
Brake
Customizable Hybrid Stepper Motor with Hollow Shaft Nema 14 140mN.m 1.0A with CE RoHS Certificated 4
Gearbox
Customizable Hybrid Stepper Motor with Hollow Shaft Nema 14 140mN.m 1.0A with CE RoHS Certificated 5
Shaft
Ready to Get Started?
Please click the "Get a quote" button below to tell us your requirements.
Tags:

Nema 14 Hollow Shaft Stepper Motor

Hybrid Stepper Motor with Hollow Shaft
