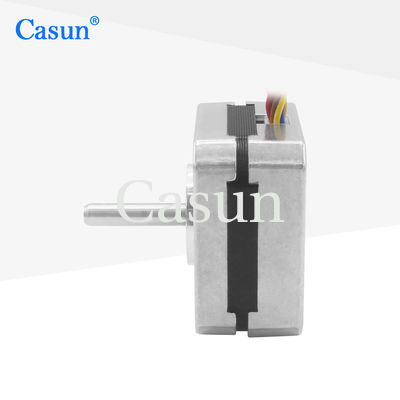

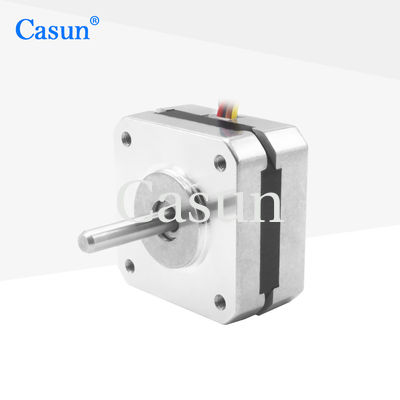

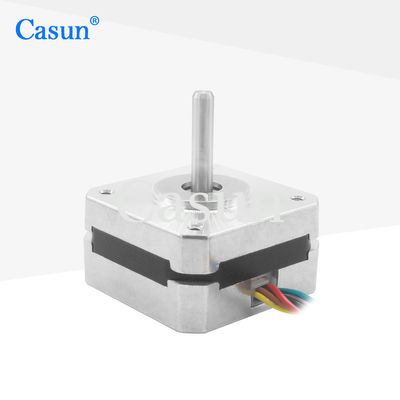

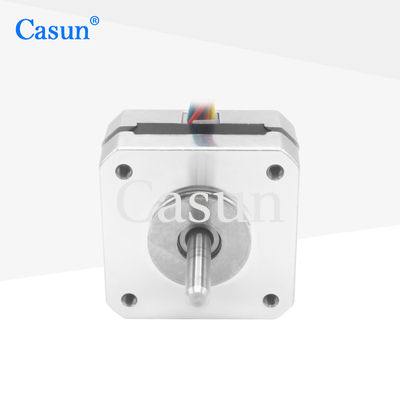

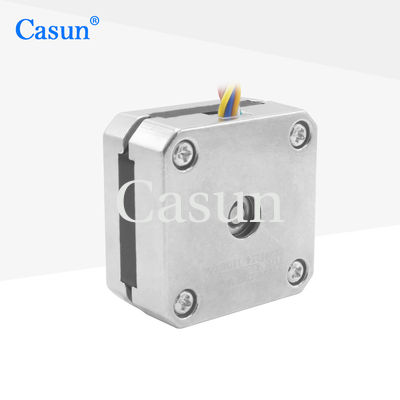

Nema 17 1.8° Degree 125mN.m 23mm Body With CE RoHS Certification Stepper Motor For Beauty Equipment

name

Nema 17 1.8° Degree 125mN.m 23mm Body With CE RoHS Certification Stepper Motor For Beauty Equipment

Brand Name: Casun
Model Number: 42SHD8909-24
MOQ: 5PC
Price: $5~$7
Payment Terms: D/A, T/T, L/C, D/P
Supply Ability: 10000+PCS+Month
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
CE,ROHS,ISO
Holding Torque:
125 MN.m
Voltage:
2.26V
Current:
1.2A
Body Length:
23mm
Weight:
0.2 Kg
Phase Resistance:
1.88 Ohm ±10% （At 20℃）
Shaft Length:
24 Mm
Phase:
2
Insulation Class:
Class B
Packaging Details:
Carton:38x29x18cm
Highlight:

NEMA 17 Stepper Motor

,

23mm Body NEMA 17 Stepper Motor

,

1.8° Degree Stepper Motor

Product Description
Nema 17 Stepper Motor for Beauty Equipment
The Casun Nema 17 Hybrid Stepper Motor delivers precision performance with 125mN.m holding torque, specifically designed for beauty equipment applications. This CE and RoHS certified motor features a compact 23mm body and 1.8° step angle for reliable motion control.
Key Features
  • Bipolar or unipolar versions available
  • Hybrid stepper construction
  • Available in single or double shaft versions
  • CE and RoHS certified
  • Customizations available on request
Dimensions
Nema 17 1.8° Degree 125mN.m 23mm Body With CE RoHS Certification Stepper Motor For Beauty Equipment 0
Motor Specifications
Step Angle 1.8°
Frame Size 23 mm
Number of Phase 2 Phase
Rated Current 1.2 Amp
Holding Torque 125 mN.m
Resistance 1.88 ohm
Inductance 1.9 mH
Rotor Inertia 15 g.cm²
Motor Weight 0.2 kg
Connection Bipolar
Operating Specifications
Motor Operating Conditions
Step Angle 1.8°
Maximum Temperature 80°C maximum
Ambient Temperature -20°C to 50°C
Storage Temperature -20°C to 100°C
Humidity Range 85% or less, non-condensing
Magnet Wire Insulation Class B 130°C
Insulation Resistance 100M Ohm at 500 VDC
Dielectric Strength 500 VDC for 1 min
Encoder Specifications
Voltage 5V
Output A + A - B + B - Z + Z -
Submodels
Nema 17 1.8° Degree 125mN.m 23mm Body With CE RoHS Certification Stepper Motor For Beauty Equipment 1
Custom Motor Solutions
If our standard motor cannot meet your requirements, we can customize the motor according to your specific needs. Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, and more.
Available Options
Encoder
Nema 17 1.8° Degree 125mN.m 23mm Body With CE RoHS Certification Stepper Motor For Beauty Equipment 2
Brake
Nema 17 1.8° Degree 125mN.m 23mm Body With CE RoHS Certification Stepper Motor For Beauty Equipment 3
Gearbox
Nema 17 1.8° Degree 125mN.m 23mm Body With CE RoHS Certification Stepper Motor For Beauty Equipment 4
Shaft
Nema 17 1.8° Degree 125mN.m 23mm Body With CE RoHS Certification Stepper Motor For Beauty Equipment 5
Ready to Get Started?
Please click the "Get a quote" button below to tell us your specific requirements.
