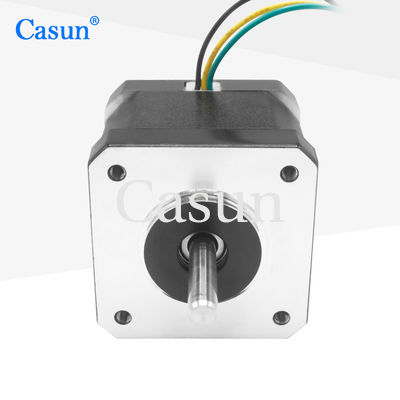

Casun Motor Nema17 1.2° Degree Stepper Motor 360mN.m 10.8V With CE RoHS Certification

name

Casun Motor Nema17 1.2° Degree Stepper Motor 360mN.m 10.8V With CE RoHS Certification

Brand Name: Casun
Model Number: 42SHF3202-22L1
MOQ: 5PC
Price: $5.29~$6.86
Payment Terms: D/A, T/T, L/C, D/P
Supply Ability: 10000+PCS+Month
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
CE,ROHS,ISO
Holding Torque:
360 MN.m
Voltage:
10.8V
Current:
1.2A
Body Length:
40mm
Weight:
0.24 Kg
Phase Resistance:
10.3 Ohm ±10% （At 20℃）
Shaft Length:
22 Mm
Phase:
2
Insulation Class:
Class B
Packaging Details:
Carton:38x29x18cm
Highlight:

Nema17 Stepper Motor

,

CASUN 1.2 Degree Stepper Motor

,

10.8V Degree Stepper Motor

Product Description
Casun Motor Nema17 1.2° Degree Stepper Motor 360mN.m 10.8V
The Casun Nema17 Stepper Motor delivers exceptional positioning accuracy with its 1.2° step angle, providing 30% finer resolution than standard 1.8° motors. Engineered for high-performance automation, this motor combines 360mN.m torque with 10.8V optimized operation, making it ideal for CNC machines, 3D printers, and precision instrumentation. Certified with CE and RoHS compliance.
Key Features
  • Bipolar or unipolar versions available
  • Hybrid stepper construction
  • Available in single- or double-shaft versions
  • CE and RoHS approved
  • Customizations available upon request
Dimensions
Casun Motor Nema17 1.2° Degree Stepper Motor 360mN.m 10.8V With CE RoHS Certification 0
Motor Specifications
Step Angle 1.8°
Frame Size 40 mm
Number of Phase 2 Phase
Rated Current 1.2 Amp
Holding Torque 360 mN.m
Resistance 9 ohm
Inductance 10.3 mH
Rotor Inertia 57 g.cm²
Motor Weight 0.24 kg
Connection Bipolar
Operating Specifications
Motor Operating Conditions
Step Angle 1.8°
Maximum Temperature 80°C maximum
Ambient Temperature -20°C to 50°C
Storage Temperature -20°C to 100°C
Humidity Range 85% or less, non-condensing
Magnet Wire Insulation Class B 130°C
Insulation Resistance 100M Ohm at 500 VDC
Dielectric Strength 500 VDC for 1 min
Encoder Specifications
Voltage 5V
Output A + A - B + B - Z + Z -
Submodels
Casun Motor Nema17 1.2° Degree Stepper Motor 360mN.m 10.8V With CE RoHS Certification 1
Custom Motor Solutions
If our standard motor cannot meet your requirements, we can customize the motor according to your specific needs. Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, and more.
Available Options
Encoder
Casun Motor Nema17 1.2° Degree Stepper Motor 360mN.m 10.8V With CE RoHS Certification 2
Brake
Casun Motor Nema17 1.2° Degree Stepper Motor 360mN.m 10.8V With CE RoHS Certification 3
Gearbox
Casun Motor Nema17 1.2° Degree Stepper Motor 360mN.m 10.8V With CE RoHS Certification 4
Shaft
Casun Motor Nema17 1.2° Degree Stepper Motor 360mN.m 10.8V With CE RoHS Certification 5
