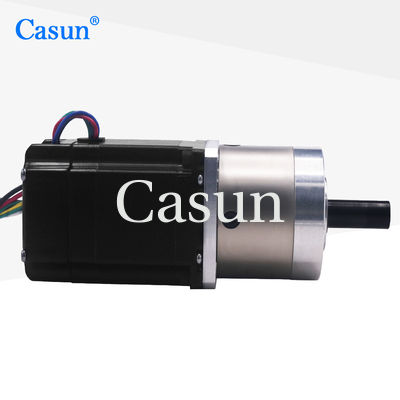

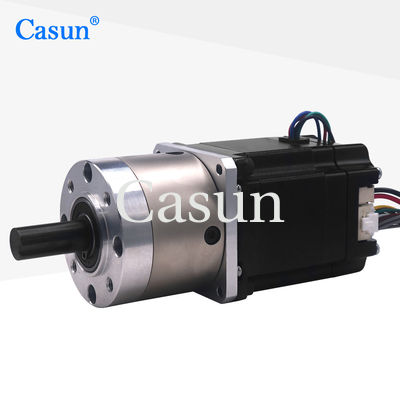

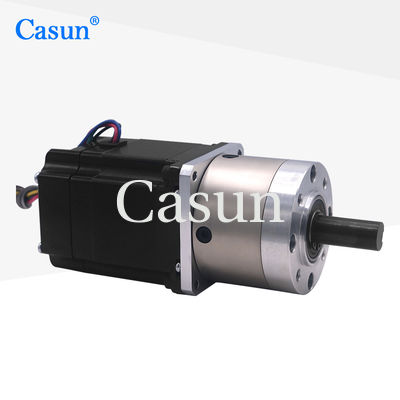

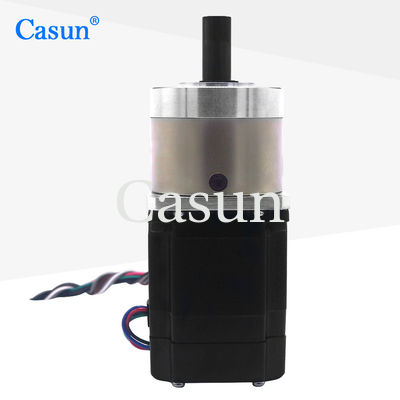

Nema 23 Geared Stepper Motor With 4.25:1 Ratio Stepper Motor For CNC Machine

name

Nema 23 Geared Stepper Motor With 4.25:1 Ratio Stepper Motor For CNC Machine

Brand Name: Casun
Model Number: 57SHD4425-4GH
MOQ: 5PC
Price: $26.9~$29
Payment Terms: D/A, T/T, L/C, D/P
Supply Ability: 10000+PCS+Month
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
CE,ROHS,ISO
Holding Torque:
1250 MN.m
Voltage:
2.52V
Current:
2.8A
Body Length:
48mm
Weight:
1 Kg
Phase Resistance:
0.9 Ohm ±10% （At 20℃）
Shaft Length:
30 Mm
Phase:
2
Insulation Class:
Class B
Packaging Details:
Carton:38x29x18cm
Highlight:

CNC Machine Stepper Motor

,

Geared Stepper Motor

,

Nema 23 Geared Stepper Motor

Product Description

Nema 23 Geared Stepper Motor with 4.25:1 Ratio High-Quality Stepper Motor Factory Prices for CNC Machine

The NEMA 23 Geared Stepper Motor with a 4.25:1 gear ratio delivers high torque and precision, making it ideal for CNC machines and automation projects. Built for durability and smooth performance, this motor ensures reliable motion control at factory-direct prices. Perfect for applications requiring accurate positioning and power efficiency.



Features:

  • Bipolar or unipolar versions available

  • Hybrid stepper construction

  • Available in single- or double-shaft versions

  • CE and RoHS approved

  • Customizations on request

Dimensions



                      Nema 23 Geared Stepper Motor With 4.25:1 Ratio Stepper Motor For CNC Machine 0

Motor Specifications



Step Angel



 1.8°

Frame Size



 48 mm

Number of Phase



 2 Phase

Rated Current



 2.8 Amp

Holding Torque



 1250 mN.m

Resistance



 0.9 ohm

Inductance



 2.5 mH

Rotor Inertia



 260 g.cm²

Motor weight



 1 kg

Connection



 Bipolar



Operating Specifications



Motor



Step Angle: 1.8°

Maximum Temperature: 80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range: 85% or less, non-condensing

Magnet Wire Insulation: Class B 130 deg C

Insulation Resistance: 100M Ohm at 500 VDC

Dielectric Strength: 500 VDC for 1 min



Encoder







Voltage: 5 v

Output: A + A - B + B - Z + Z -



Submodels



                    Nema 23 Geared Stepper Motor With 4.25:1 Ratio Stepper Motor For CNC Machine 1



Download



If our standard motor cannot meet your needs,

we can customize the motor according to your needs


Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:
Encoder | Brake | Gearbox | Shaft

Nema 23 Geared Stepper Motor With 4.25:1 Ratio Stepper Motor For CNC Machine 2 Nema 23 Geared Stepper Motor With 4.25:1 Ratio Stepper Motor For CNC Machine 3 Nema 23 Geared Stepper Motor With 4.25:1 Ratio Stepper Motor For CNC Machine 4 Nema 23 Geared Stepper Motor With 4.25:1 Ratio Stepper Motor For CNC Machine 5





Please click the "Get a quote" button below to tell us your requirements.
