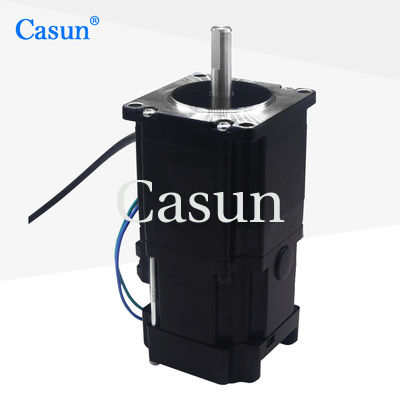

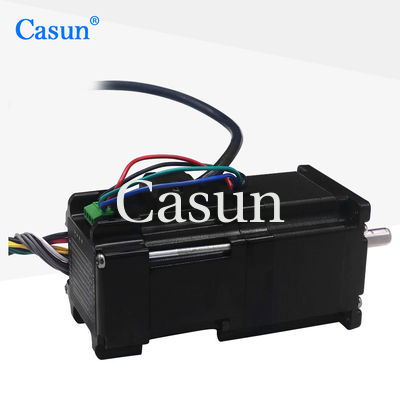

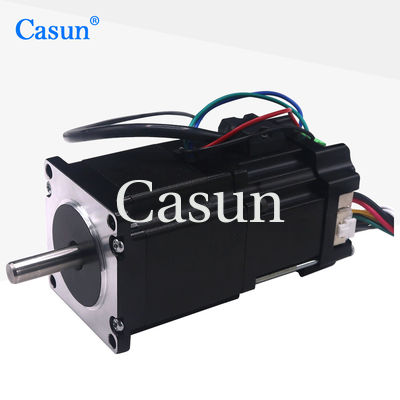

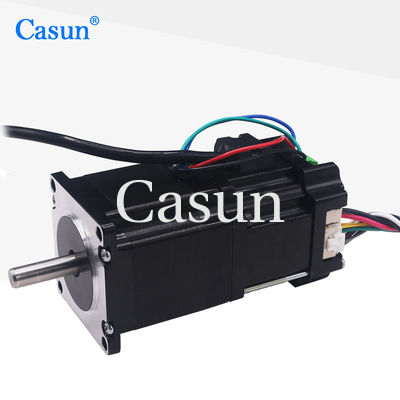

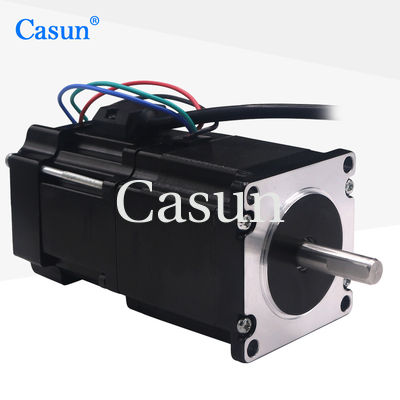

Casun Stepper Motor 1200mN.m All-in-one machine Stepper Motor with Brake for Industrial Robot

name

Casun Stepper Motor 1200mN.m All-in-one machine Stepper Motor with Brake for Industrial Robot

Brand Name: Casun
Model Number: 57SHD4417-27CBH-HP57-IDH57
MOQ: 5PC
Price: $41~$43.8
Payment Terms: D/A, T/T, L/C, D/P
Supply Ability: 10000+PCS+Month
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
CE,ROHS,ISO
Holding Torque:
1200 MN.m
Voltage:
1.93 V
Current:
3.5 A
Body Length:
54mm
Weight:
0.6 Kg
Phase Resistance:
0.55 Ohm ±10% （At 20℃）
Shaft Length:
27 Mm
Phase:
2
Insulation Class:
Class B
Packaging Details:
Carton:38x29x18cm
Highlight:

All-in-one machine Stepper Motor

,

Industrial Robot Stepper Motor

,

Stepper Motor with Brake

Product Description

Casun Stepper Motor 1200mN.m All-in-one machine Stepper Motor with Brake for Industrial Robot

The Casun Stepper Motor delivers high torque (1200mN.m) and precise control, making it perfect for all-in-one machines and industrial robots. Featuring an integrated brake for instant stopping and holding, this motor ensures reliable performance in demanding automation applications. Built for durability and efficiency, it’s an ideal choice for CNC, robotics, and automated systems.



Features:

  • Bipolar or unipolar versions available

  • Hybrid stepper construction

  • Available in single- or double-shaft versions

  • CE and RoHS approved

  • Customizations on request

Dimensions



                      Casun Stepper Motor 1200mN.m All-in-one machine Stepper Motor with Brake for Industrial Robot 0

Motor Specifications



Step Angel



 1.8°

Frame Size



 54 mm

Number of Phase



 2 Phase

Rated Current



 3.5 Amp

Holding Torque



 1200 mN.m

Resistance



 0.55 ohm

Inductance



 2 mH

Rotor Inertia



 260 g.cm²

Motor weight



 0.6 kg

Connection



 Bipolar



Operating Specifications



Motor



Step Angle: 1.8°

Maximum Temperature: 80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range: 85% or less, non-condensing

Magnet Wire Insulation: Class B 130 deg C

Insulation Resistance: 100M Ohm at 500 VDC

Dielectric Strength: 500 VDC for 1 min



Encoder







Voltage: 5 v

Output: A + A - B + B - Z + Z -



Submodels



                    Casun Stepper Motor 1200mN.m All-in-one machine Stepper Motor with Brake for Industrial Robot 1



Download



If our standard motor cannot meet your needs,

we can customize the motor according to your needs


Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:
Encoder | Brake | Gearbox | Shaft

Casun Stepper Motor 1200mN.m All-in-one machine Stepper Motor with Brake for Industrial Robot 2 Casun Stepper Motor 1200mN.m All-in-one machine Stepper Motor with Brake for Industrial Robot 3 Casun Stepper Motor 1200mN.m All-in-one machine Stepper Motor with Brake for Industrial Robot 4 Casun Stepper Motor 1200mN.m All-in-one machine Stepper Motor with Brake for Industrial Robot 5





Please click the "Get a quote" button below to tell us your requirements.
