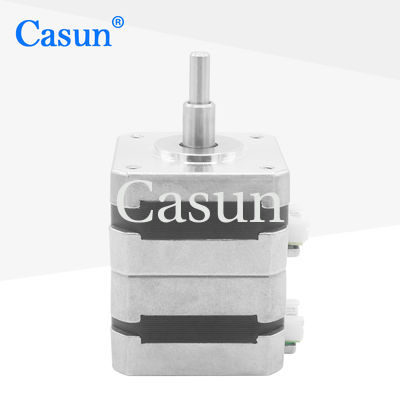

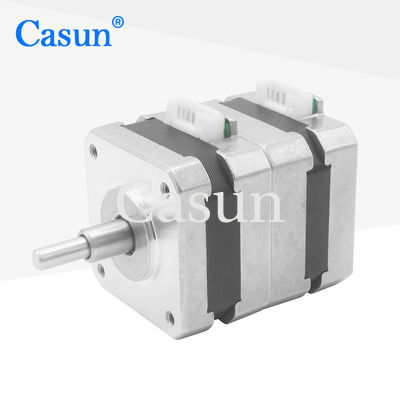

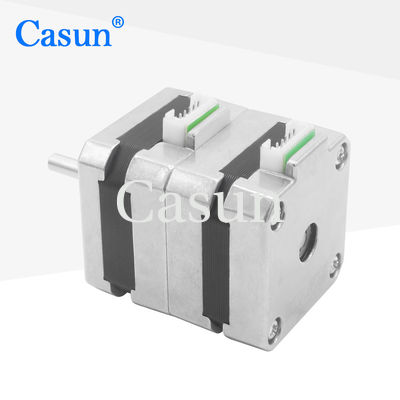

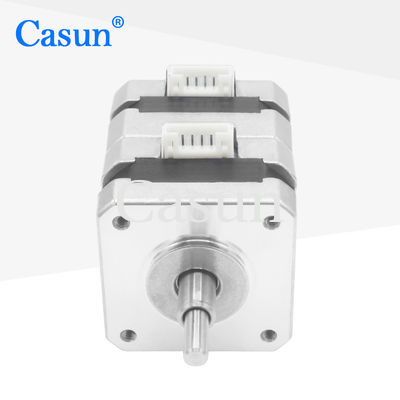

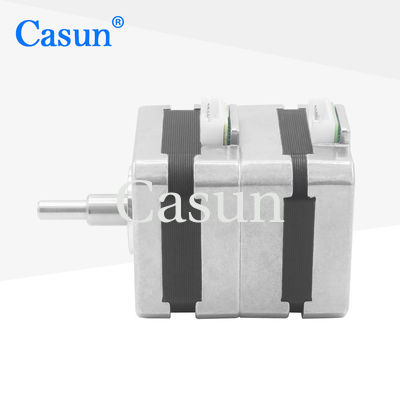

Casun Customized Double Layer Stepper Motor 1,8° Degree 0.4AMP For Medical Equipment

Casun Customized Double Layer Stepper Motor 1,8° Degree 0.4AMP For Medical Equipment

Brand Name:	Casun
Model Number:	E42D-03-1224
MOQ:	5PC
Price:	$13.8~$16
Payment Terms:	D/A, T/T, L/C, D/P
Supply Ability:	10000+PCS+Month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE,ROHS,ISO

Holding Torque:

210 MN.m

Voltage:

12 V

Current:

0.4 A

Body Length:

52mm

Weight:

0.5 Kg

Phase Resistance:

30 Ohm ±10% （At 20℃）

Shaft Length:

24 Mm

Phase:

Insulation Class:

Class B

Packaging Details:

Carton:38x29x18cm

Highlight:

Customized Stepper Motor

Double layer Stepper Motor

Stepper Motor For Medical Equipment

Product Description

Casun Customized Double Layer Stepper Motor 1.8° Degree 0.4AMP For Medical Equipment

The Casun Customized Double-Layer Stepper Motor delivers high precision (1.8° step angle) and smooth operation, specifically optimized for medical equipment and other sensitive applications. With a low current (0.4A) design, it ensures energy efficiency while maintaining reliable performance. Available at factory-direct prices, this motor can be customized to meet specific requirements, making it ideal for custom automation solutions. Built for durability and accuracy, it delivers consistent results in critical medical and industrial systems.

Key Features

Bipolar or unipolar versions available
Hybrid stepper construction
Available in single- or double-shaft versions
CE and RoHS approved
Customizations on request

Dimensions

Motor Specifications

Step Angle	1.8°
Frame Size	52 mm
Number of Phase	2 Phase
Rated Current	0.4 Amp
Holding Torque	210 mN.m
Resistance	30 ohm
Inductance	38 mH
Rotor Inertia	2 g.cm²
Motor Weight	0.5 kg
Connection	Bipolar

Operating Specifications

Motor

Step Angle	1.8°
Maximum Temperature	80°C maximum
Ambient Temperature	-20°C to 50°C
Storage Temperature	-20°C to 100°C
Humidity Range	85% or less, non-condensing
Magnet Wire Insulation	Class B 130 deg C
Insulation Resistance	100M Ohm at 500 VDC
Dielectric Strength	500 VDC for 1 min

Encoder

Voltage	5V
Output	A + A - B + B - Z + Z -

Submodels

Customization Options

If our standard motor cannot meet your requirements, we can customize the motor according to your specific needs. Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, and more.

Available Options

Encoder

Brake

Gearbox

Shaft

Please click the "Get a quote" button below to tell us your requirements.
