Nema 23 Warm Gear Stepper Motor RV030 Reducer 3000mN.m High Tough 8.4V Casun Motor with CNC Machine

Brand Name:	Casun
Model Number:	57SHD4934-20NMRV030
MOQ:	5PC
Price:	$44.8~$46
Payment Terms:	D/A, T/T, L/C, D/P
Supply Ability:	10000+PCS+Month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE,ROHS,ISO

Holding Torque:

2000 MN.m

Voltage:

8.4 V

Current:

3 A

Body Length:

100 Mm

Weight:

1.3 Kg

Phase Resistance:

2.8 Ohm ±10% （At 20℃）

Shaft Length:

14 Mm

Phase:

Insulation Class:

Class B

Packaging Details:

Carton:38x29x18cm

Highlight:

CNC Machine Stepper Motor

rv030 Warm Gear Stepper Motor

3000mN.m Warm Gear Stepper Motor

Product Description

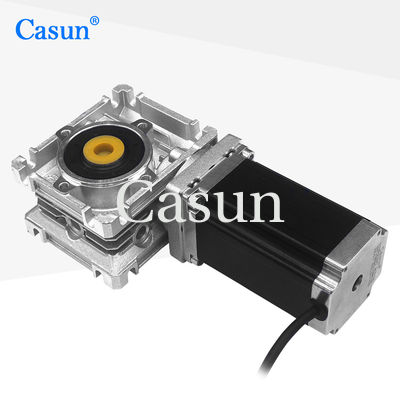

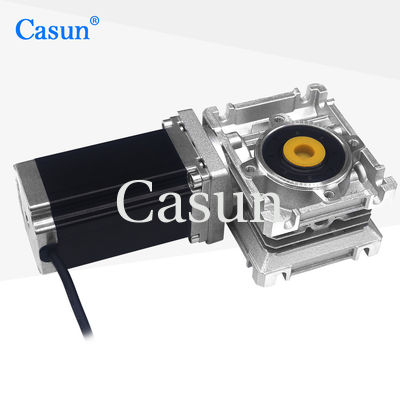

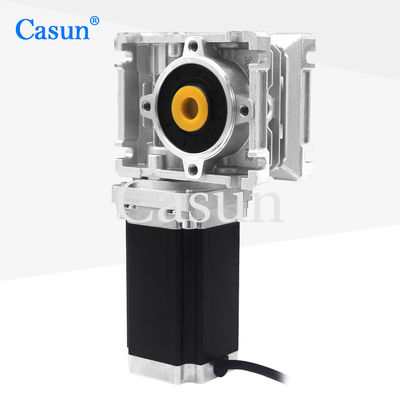

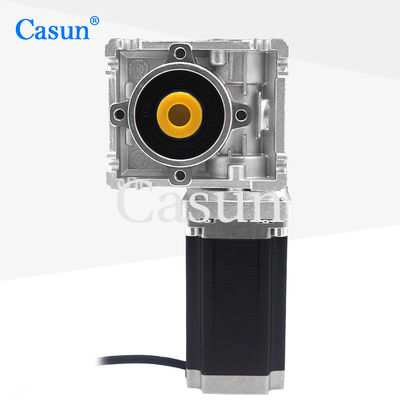

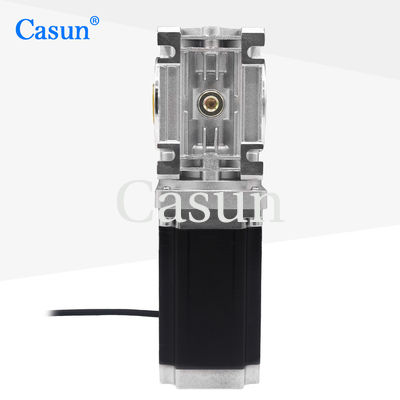

Nema 23 Worm Gear Stepper Motor with RV030 Reducer

The Nema 23 Worm Gear Stepper Motor with RV030 Reducer delivers high torque (3000mN.m) and exceptional durability for demanding CNC and automation applications. Operating at 8.4V, this Casun motor ensures smooth power transmission and precise positioning, making it ideal for CNC machines, robotics, and industrial equipment. Built for long-lasting performance, it combines rugged construction with reliable worm gear technology for superior motion control.

Key Features

Bipolar or unipolar versions available
Hybrid stepper construction
Available in single- or double-shaft versions
CE and RoHS approved
Customizations on request

Dimensions

Motor Specifications

Step Angle	1.8°
Frame Size	100 mm
Number of Phase	2 Phase
Rated Current	3 Amp
Holding Torque	2000 mN.m
Resistance	2.8 ohm
Inductance	11 mH
Rotor Inertia	650 g.cm²
Motor Weight	1.3 kg
Connection	Bipolar

Operating Specifications

Motor Operating Conditions

Step Angle	1.8°
Maximum Temperature	80°C maximum
Ambient Temperature	-20°C to 50°C
Storage Temperature	-20°C to 100°C
Humidity Range	85% or less, non-condensing
Magnet Wire Insulation	Class B 130°C
Insulation Resistance	100M Ohm at 500 VDC
Dielectric Strength	500 VDC for 1 min

Encoder Specifications

Voltage	5V
Output	A + A - B + B - Z + Z -

Submodels

Custom Motor Solutions

If our standard motor cannot meet your needs, we can customize the motor according to your requirements. Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, and more.
