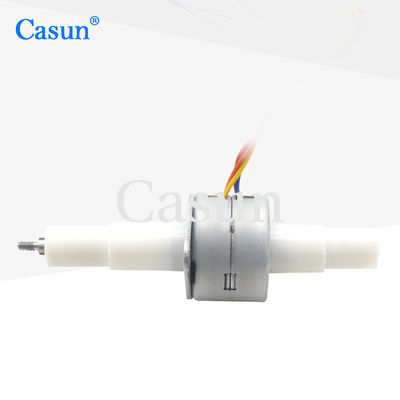

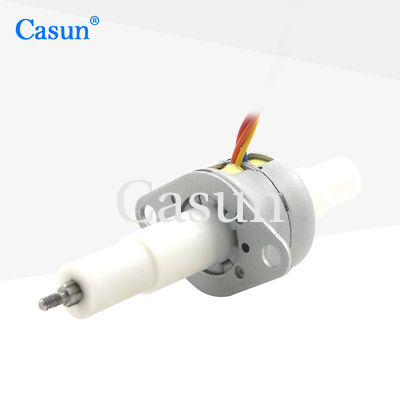

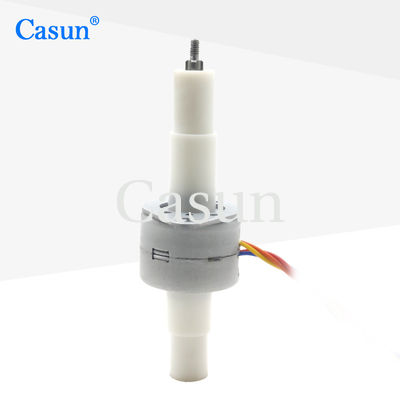

Casun PM Stepper Motor High Precision Motor for Automation Customized Motor

Brand Name:	Casun
Model Number:	20LCH0011-04
MOQ:	5
Price:	$6.9~$8.2
Payment Terms:	D/A,T/T,L/C,D/P
Supply Ability:	10000+PCS+Month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE,ROHS,ISO

Holding Torque:

60 G.cm

Voltage:

24V

Current:

0.2 A

Body Length:

15 Mm

Weight:

0.03 Kg

Phase Resistance:

20 Ohm ±10% （At 20℃）

Shaft Length:

27 Mm

Phase:

Insulation Class:

Class B

Packaging Details:

Carton:38x29x18cm

Highlight:

high precision PM stepper motor

customized automation stepper motor

PM stepper motor for automation

Product Description

Casun PM Stepper Motor - High Precision Automation Motor

The Casun PM (Permanent Magnet) Stepper Motor delivers exceptional reliability and precision for demanding automation applications. Engineered for superior motion control, this motor provides exact incremental movement with outstanding performance in positioning and speed control tasks.

Product Specifications

Attribute	Value
Holding Torque	60 g.cm
Voltage	24 V
Current	0.2 A
Body Length	15.1 mm
Weight	0.03 kg
Phase Resistance	20 ohm ±10% (At 20℃)
Shaft Length	27 mm
Phase	2
Insulation Class	Class B

Key Features

Bipolar or unipolar versions available
Hybrid stepper construction
Available in single or double shaft versions
CE and RoHS approved
Customizations available on request

Motor Dimensions

Detailed Motor Specifications

Parameter	Specification
Step Angle	15°
Frame Size	15.1 mm
Number of Phase	2-2 Phase
Rated Current	0.2 Amp
Holding Torque	60g.cm
Resistance	20 ohm
Inductance	8 mH
Rotor Inertia	38 g.cm²
Motor Weight	30 g
Connection	Bipolar

Operating Specifications

Parameter	Specification
Step Angle	15°
Maximum Temperature	80°C maximum
Ambient Temperature	-20°C to 50°C
Storage Temperature	-20°C to 100°C
Humidity Range	85% or less, non-condensing
Magnet Wire Insulation	Class B 130°C
Insulation Resistance	100M Ohm at 500 VDC
Dielectric Strength	500 VDC for 1 min

Encoder Specifications

Parameter	Specification
Voltage	5 V
Output	A + A - B + B - Z + Z -

Available Submodels

Customization Options

If our standard motor configurations don't meet your specific requirements, we offer comprehensive customization services. Our engineering team can modify the motor to your exact specifications.

Customization Areas Include:

Special shaft configurations
Custom winding parameters
Modified installation dimensions
Lead wires with special requirements
Custom connector solutions

Available Accessory Options

Encoder Option

Brake Option

Gearbox Option

Shaft Option

Ready to discuss your specific motor requirements? Contact our engineering team for a customized solution.
