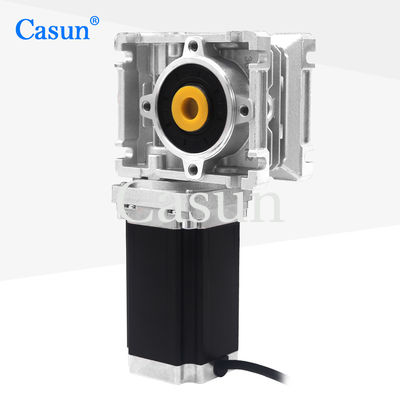

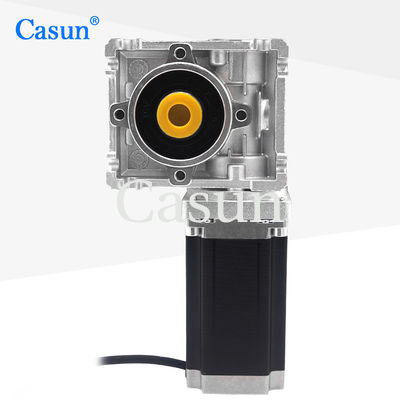

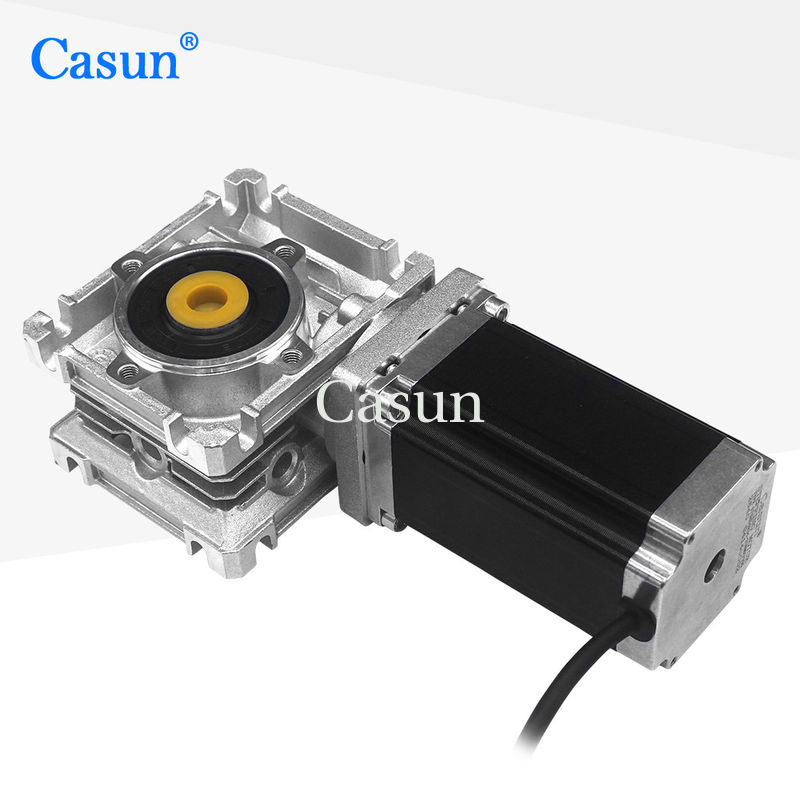

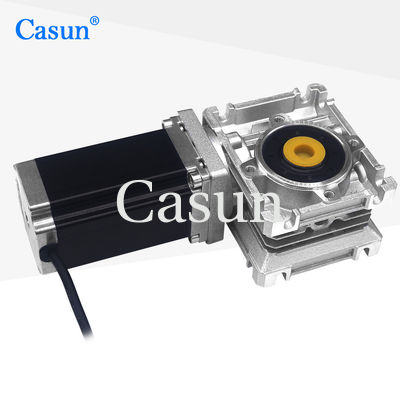

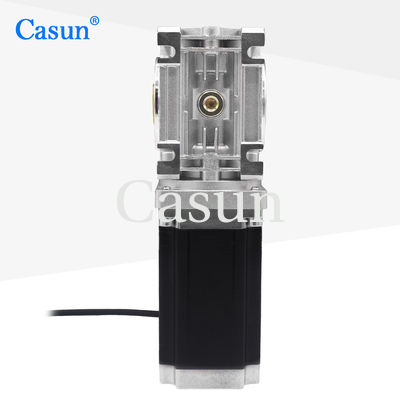

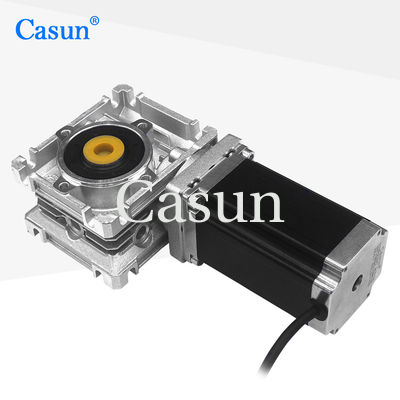

Nema 23 Hybrid stepper motor with Worm Gear Motor 56x100mm

Brand Name:	Casun
Model Number:	57SHD4934-20NMRV030
MOQ:	1PC
Price:	$34-$28
Payment Terms:	L/C, D/A, D/P, T/T
Supply Ability:	40000+PCS+Month

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

CE,ROHS,ISO

Customized:

The Motor Can Be Designed &manufactured With Customized Request.

Motor Length:

55mm

Product Name:

Stepper Motor With Geared

Current / Phase:

3.0A

Packaging Details:

Carton:36x29x14cm

Highlight:

Nema 23 stepper motor with worm gear

56x100mm hybrid stepper motor

NEMA 23 geared stepper motor

Product Description

Nema 23 Hybrid Stepper Motor with Worm Gear Motor 56x100mm

High Quality Casun NEMA 23 Geared Stepper Motors for printing machinery, medical equipment, and industrial applications. CE, ISO, and RoHS certified.

Product Features

Bipolar or unipolar versions available
Hybrid stepper construction
Available in single or double shaft versions
CE and RoHS approved
Customizations on request

Dimensions

Motor Specifications

Step Angle	1.8°
Frame Size	57mm
Number of Phase	2 Phase
Rated Current	3.0 Amp
Holding Torque	3.0 N.m
Resistance	2.8 Ω
Inductance	11mH
Rotor Inertia	650g-cm²
Motor Weight	1.4kg
Gear Reduction Ratio	20:1
Connection	Bipolar

Operating Specifications

Motor

Maximum Temperature	80°C maximum
Ambient Temperature	-20°C to 50°C
Storage Temperature	-20°C to 100°C
Humidity Range	85% or less, non-condensing
Magnet Wire Insulation	Class B 130°C
Insulation Resistance	100M Ω at 500 VDC
Dielectric Strength	500 VDC for 1 min

Gear Box

Housing Material	Metal
Bearing at Output	Ball Bearings
Max. Radial Load (12mm from flange)	≤80N
Max. Shaft Axial Load	≤30N
Radial Play of Shaft (near to Flange)	≤0.06mm
Axial Play of Shaft	≤0.3mm
Backlash at No-load	1.5°

Submodels

Motor Length	Length of Gearbox	Ratio	Efficiency
34 mm	27.2 mm	3.71	90%
40 mm	35 mm	13.76	80%
48 mm	42.7 mm	51	70%
60 mm	42.7 mm	139	70%

Customization Options

If our standard motor cannot meet your needs, we can customize the motor according to your requirements. Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, and more.

Encoder

Brake

Gearbox

Shaft
