Home > products > Hybrid Stepper Motor > 【42SHD0261】42X42X40mm 1.68A 2 Phase Bipolar Hybrid 12V DC NEMA 17 Stepper Motor 17HS4401

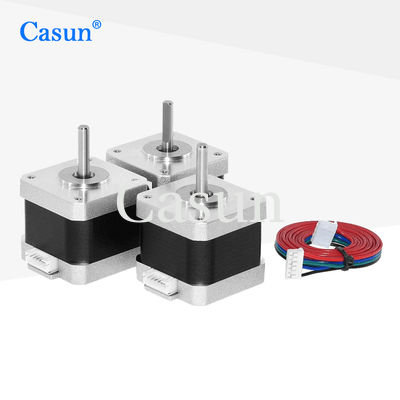

【42SHD0261】42X42X40mm 1.68A 2 Phase Bipolar Hybrid 12V DC NEMA 17 Stepper Motor 17HS4401
【42SHD0261】42X42X40mm 1.68A 2 Phase Bipolar Hybrid 12V DC NEMA 17 Stepper Motor 17HS4401
【42SHD0261】42X42X40mm 1.68A 2 Phase Bipolar Hybrid 12V DC NEMA 17 Stepper Motor 17HS4401
【42SHD0261】42X42X40mm 1.68A 2 Phase Bipolar Hybrid 12V DC NEMA 17 Stepper Motor 17HS4401
【42SHD0261】42X42X40mm 1.68A 2 Phase Bipolar Hybrid 12V DC NEMA 17 Stepper Motor 17HS4401
【42SHD0261】42X42X40mm 1.68A 2 Phase Bipolar Hybrid 12V DC NEMA 17 Stepper Motor 17HS4401
【42SHD0261】42X42X40mm 1.68A 2 Phase Bipolar Hybrid 12V DC NEMA 17 Stepper Motor 17HS4401
【42SHD0261】42X42X40mm 1.68A 2 Phase Bipolar Hybrid 12V DC NEMA 17 Stepper Motor 17HS4401

【42SHD0261】42X42X40mm 1.68A 2 Phase Bipolar Hybrid 12V DC NEMA 17 Stepper Motor 17HS4401

Product Details

Place of Origin: CHINA

Brand Name: Casun

Certification: CE,ROHS,ISO

Model Number: 42SHD0261-24BH

Payment & Shipping Terms

Minimum Order Quantity: 1PC

Price: $3.14-$5

Packaging Details: Carton:36x29x14cm

Delivery Time: 7-15 days

Payment Terms: D/A, T/T, L/C, D/P

Supply Ability: 40000+PCS+Month

Get Best Price

Product Details

Product Description
Product Details
Highlight:
Step Angel:
1.8°
Holding Torque:
450mN.m
Current:
1.68A
Motor Length:
40mm
Shaft:
Milling Flat Shaft 24mm Length
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Step Angel:
1.8°
Holding Torque:
450mN.m
Current:
1.68A
Motor Length:
40mm
Shaft:
Milling Flat Shaft 24mm Length
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Product Description

The 42mm stepper motor has undergone good manufacturing and design, with a longer lifespan and lower failure rate.

Printers, engraving machines, 3D printers, and robots.



Features:

  • Bipolar or unipolar versions available

  • Hybrid stepper construction

  • Deliver "multiple international certifications" for electrical and high-tech devices

  • CE and RoHS approved

  • Ten-year warranty and purchase with confidence





Motor Specifications



Step Angel

1.8 °

Fram Size

40 mm

Number of Phase

2 Phase

Rated Current

1.68 A

Holding Torque

450 mN.m

Resistance

1.95 ohm

Inductance

4.4 mH

Rotor Inertia

57 g-cm²

Motor weight

0. kg

Number of leads

4

Connection

Bipolar

Appearance

【42SHD0261】42X42X40mm 1.68A 2 Phase Bipolar Hybrid 12V DC NEMA 17 Stepper Motor 17HS4401 0

Dimensions

【42SHD0261】42X42X40mm 1.68A 2 Phase Bipolar Hybrid 12V DC NEMA 17 Stepper Motor 17HS4401 1














Operating Specifications

Step Angle: 1.8°

Maximum  Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min







Torque Curves













Submodels

Model Holding Torque Step Angle Motor Length Type of Shaft Rated Current
42SHD4950 0.13N.m 1.8° 20mm D Shaft-20mm 1.0A
42SHD4003 0.26N.m 1.8° 34mm D Shaft-20mm 0.4A
42SHD0261 0.45N.m 1.8° 40mm D Shaft-20mm 1.68A
42SHD4425 0.59N.m 1.8° 48mm D Shaft-24mm 2.0A
42SHD4813 0.8N.m 1.8° 60mm D Shaft-24mm 2.1A





Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs


Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:

Encoder

Brake

Gearbox

Shaft
【42SHD0261】42X42X40mm 1.68A 2 Phase Bipolar Hybrid 12V DC NEMA 17 Stepper Motor 17HS4401 2 【42SHD0261】42X42X40mm 1.68A 2 Phase Bipolar Hybrid 12V DC NEMA 17 Stepper Motor 17HS4401 3 【42SHD0261】42X42X40mm 1.68A 2 Phase Bipolar Hybrid 12V DC NEMA 17 Stepper Motor 17HS4401 4 【42SHD0261】42X42X40mm 1.68A 2 Phase Bipolar Hybrid 12V DC NEMA 17 Stepper Motor 17HS4401 5



Please click the "Get a quote" button below to tell us your requirements.
