180 MNm NEMA 14 Geared Stepper Motor Planetary Gear Reducer Motor

180 MNm NEMA 14 Geared Stepper Motor Planetary Gear Reducer Motor

  • High Light

    Planetary Gear Reducer Motor

    ,

    180 mNm NEMA 14 Stepper Motor

    ,

    NEMA 14 Planetary Gear Reducer Motor

  • Place of Origin
    CHINA
  • Brand Name
    Casun
  • Certification
    CE,ROSH,ISO
  • Model Number
    P35SHD4118-19G
  • Minimum Order Quantity
    1PC
  • Price
    $18.9-$24
  • Packaging Details
    Carton:38x29x18cm
  • Delivery Time
    7-15 days
  • Payment Terms
    D/A, T/T, L/C, D/P
  • Supply Ability
    40000+PCS+Month

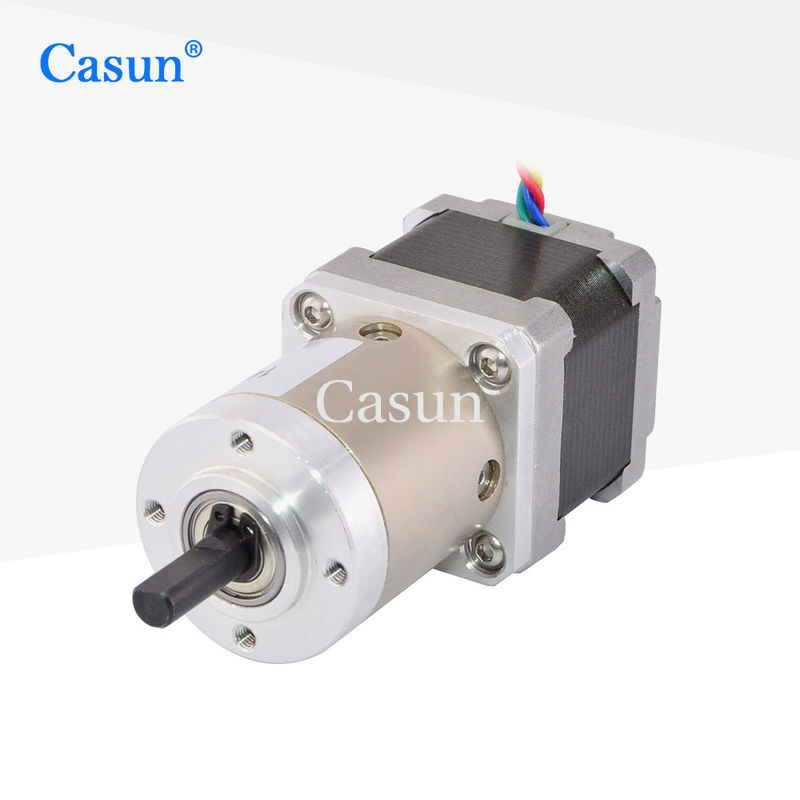

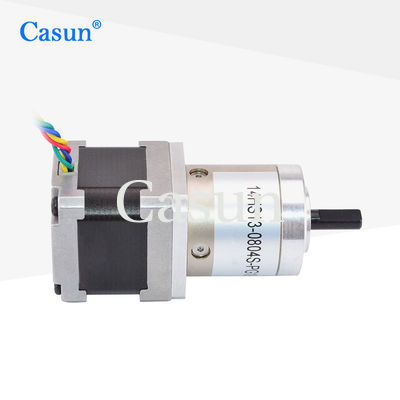

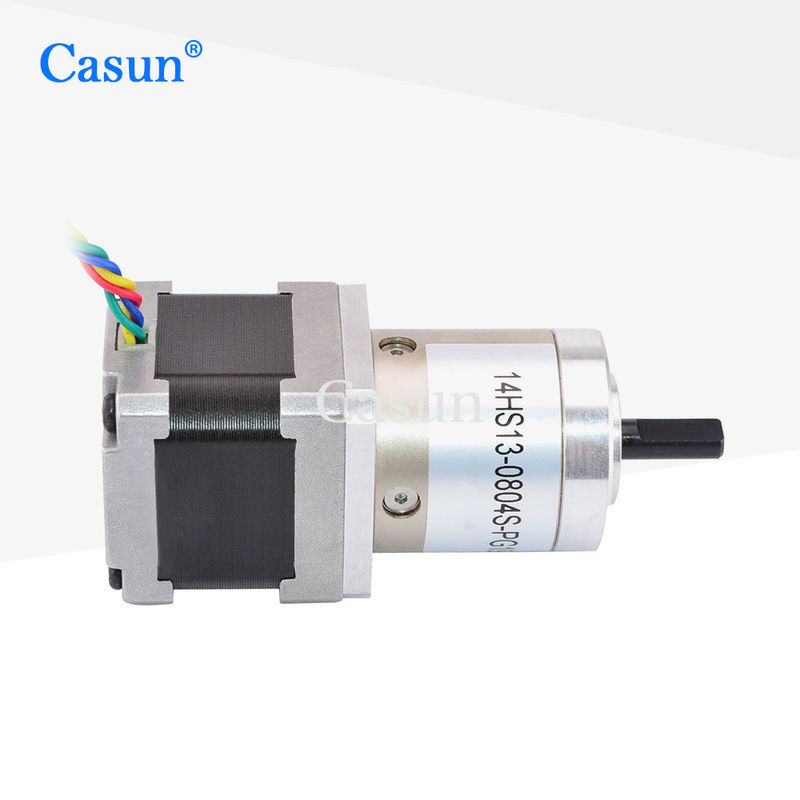

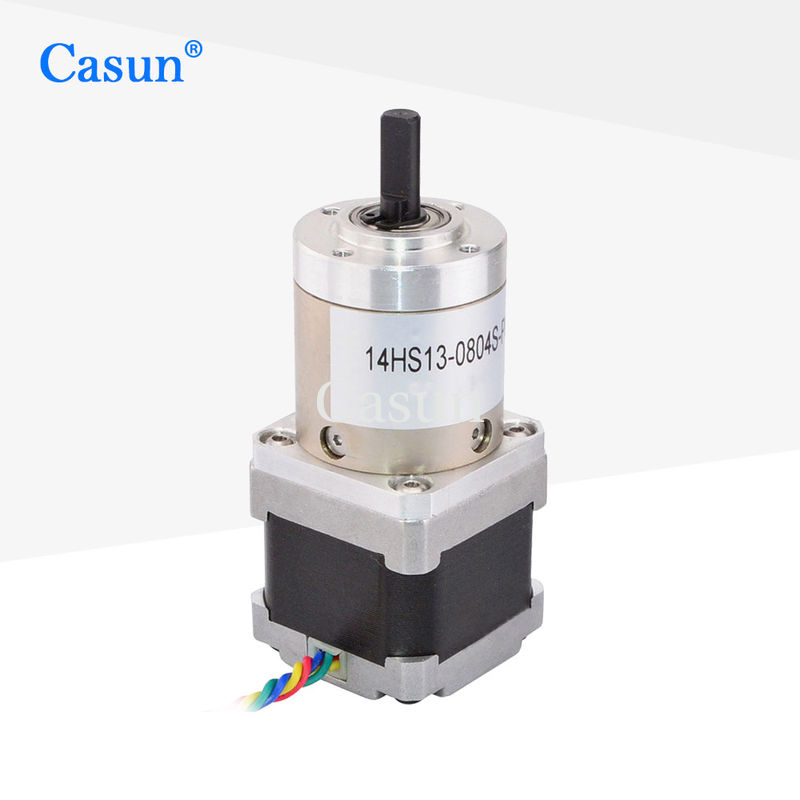

180 MNm NEMA 14 Geared Stepper Motor Planetary Gear Reducer Motor

Gear Reduction Ratio 19:1 High Efficiency Planetary Gearbox Reducer Motor 14HS13-0804S-PG19 Nema 14 Stepper Motor

The 42mm Hybrid Stepper Motor Series offers powerful holding torque in a variety of sizes.

Use with a microstepping driver to reduce vibration and achieve higher step resolution.

Choose a baseline version or request your own customized configuration.



Features:

  • Bipolar or unipolar versions available

  • Hybrid stepper construction

  • Available in single or double shaft versions

  • CE and RoHS approved

  • Customizations on request

Dimensions

180 MNm NEMA 14 Geared Stepper Motor Planetary Gear Reducer Motor 0







Motor Specifications



Step Angel



1.8 °

Fram Size



35 mm

Number of Phase



2 Phase

Rated Current



1.0 A

Holding Torque



180 mN.m

Resistance



6.8 hm

Inductance



10 mH

Rotor Inertia



180 g-cm²

Motor weight



0.4 kg

Gear Reduction Ratio





19.2:1

Connection



Bipolar



Operating Specifications



Motor



Step Angle: 1.8°

Maximum  Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min



Gear Box




Housing Material:Metal

Bearing at Output:Ball Bearings

Max.Radial Load(12mm from flange):≤80N

Max.Shaft Axial Load:≤30N

Radial Play of Shaft (near to Flange):≤0.06m

Axial Play of Shaft:≤0.3mm

Backlash at No-load:≤1.5°













Torque Curves









Submodels

Motor Length Length of Gearbox Raio Efficiency
26 mm

34 mm

40 mm
29.1 mm 3.71 90%
5.18
36.8 mm 13.76 80%
19.2
26.8
44.6 mm 51 70%
71
99.5
139

Download



If our standard motor cannot meet your needs,

we can customize the motor according to your needs


Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:
            Encoder          |               Brake           |              Gearbox            |           Shaft

180 MNm NEMA 14 Geared Stepper Motor Planetary Gear Reducer Motor 1 180 MNm NEMA 14 Geared Stepper Motor Planetary Gear Reducer Motor 2 180 MNm NEMA 14 Geared Stepper Motor Planetary Gear Reducer Motor 3 180 MNm NEMA 14 Geared Stepper Motor Planetary Gear Reducer Motor 4





Please click the "Get  a quote" button below to tell us your requirements.
