Home > products > PM Stepper Motor > 15 Degree 12V PM Stepper Motor Casun Permanent Magnet Linear Motor

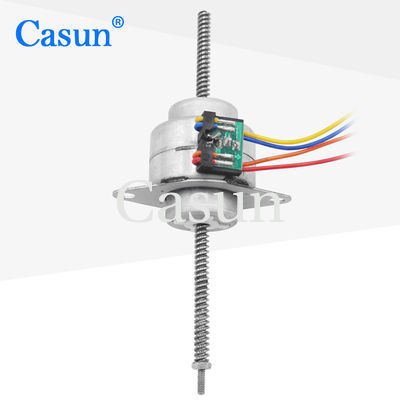

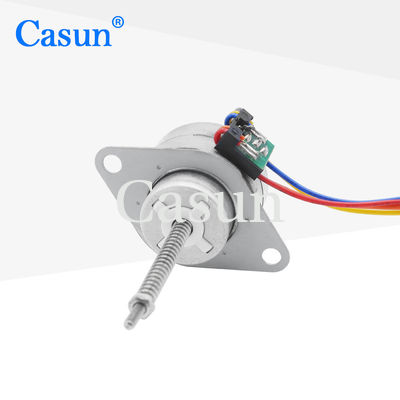

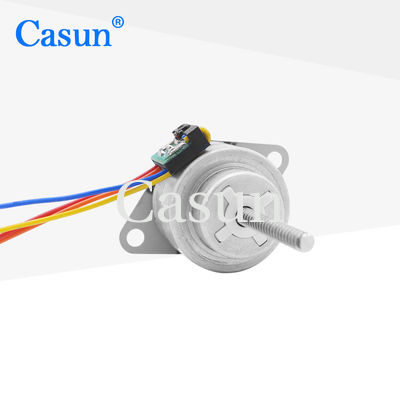

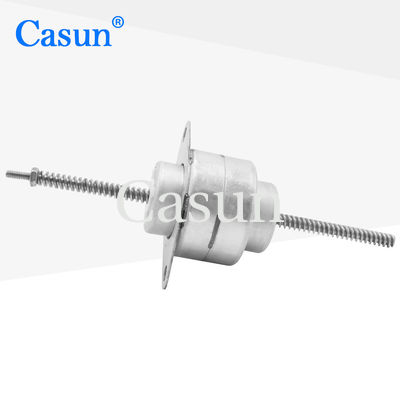

15 Degree 12V PM Stepper Motor Casun Permanent Magnet Linear Motor
15 Degree 12V PM Stepper Motor Casun Permanent Magnet Linear Motor
15 Degree 12V PM Stepper Motor Casun Permanent Magnet Linear Motor
15 Degree 12V PM Stepper Motor Casun Permanent Magnet Linear Motor
15 Degree 12V PM Stepper Motor Casun Permanent Magnet Linear Motor

15 Degree 12V PM Stepper Motor Casun Permanent Magnet Linear Motor

Product Details

Place of Origin: CHINA

Brand Name: Casun

Certification: CE,ROHS,ISO

Model Number: G25LNH0012-16V3

Payment & Shipping Terms

Minimum Order Quantity: 1PC

Price: $9-$15

Packaging Details: Carton:36x29x14cm

Delivery Time: 7-15 days

Payment Terms: D/A, T/T, L/C, D/P

Supply Ability: 40000+PCS+Month

Get Best Price

Product Details

Product Description
Product Details
Highlight:

15 Degree 12V PM Stepper Motor

,

PM Stepper Motor Casun

,

Casun Permanent Magnet Linear Motor

Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Product Description

1. High precision positioning capability: NEMA 17 stepper motors can achieve small stepper movements by controlling current and pulses, which makes them have high-precision positioning capability and suitable for applications that require precise position control.


2. Low hysteresis and stall: The structural design of the NEMA 17 stepper motor determines its excellent performance in hysteresis and stall.


3. Easy to control: The controller of the NEMA 17 stepper motor can generate precise pulse signals at extremely high speeds, achieving very precise control.



Features:

  • Bipolar or unipolar versions available

  • Hybrid stepper construction

  • Available in single or double shaft versions

  • CE and RoHS approved

  • Customizations on request

Dimensions

15 Degree 12V PM Stepper Motor Casun Permanent Magnet Linear Motor 0







Motor Specifications



Step Angel



15°

Fram Size



25 mm

Number of Phase



2 Phase

Rated Current



0.5 A

Holding Torque



180 g.cm

Resistance



8.0 om

Inductance



4.0 mH

Resolution



0.0508mm

Motor weight



0.04 kg

Number of leads



4

Inductance Class



Class E

















Download





If our standard motor cannot meet your needs,

we can customize the motor according to your needs



Please click the "Get  a quote" button below to tell us your requirements.












Tags:

Casun Permanent Magnet Linear Motor,

PM Stepper Motor Casun,

15 Degree 12V PM Stepper Motor
