【42SHD4231】NEMA 17 Bipolar Stepper Motor DC 12V 1.7A 40mm body with 4 wire for CNC Machine

Product Details

Place of Origin: CHINA

Brand Name: Casun

Certification: CE,ROSH,ISO

Model Number: 42SHD4231-24

Payment & Shipping Terms

Minimum Order Quantity: 1PC

Price: $3.14-$5

Packaging Details: Carton:36x29x14cm

Delivery Time: 7-15 days

Payment Terms: D/A, T/T, L/C, D/P

Supply Ability: 40000+PCS+Month

Get Best Price
Product Details
Highlight:
Step Angel:
1.8°
Holding Torque:
400mN.m
Current:
1.7A
Motor Length:
40mm
Shaft:
Round Shaft 24mm Length
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Step Angel:
1.8°
Holding Torque:
400mN.m
Current:
1.7A
Motor Length:
40mm
Shaft:
Round Shaft 24mm Length
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Product Description

The 42mm Hybrid Stepper Motor Series offers powerful holding torque in a variety of sizes.

Use with a microstepping driver to reduce vibration and achieve higher step resolution.

Choose a baseline version or request your own customized configuration.



Features:

  • Customizations on request

  • Hybrid stepper construction

  • Available in single or double shaft versions

  • Professional research and development manufacturing

  • Established in China for 12 years and has served more than 800 customers

Appearance

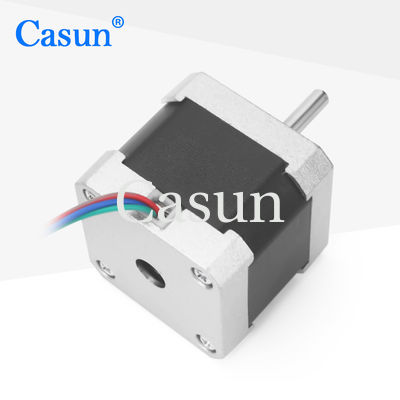

【42SHD4231】NEMA 17 Bipolar Stepper Motor DC 12V 1.7A 40mm body with 4 wire for CNC Machine 0

Dimensions

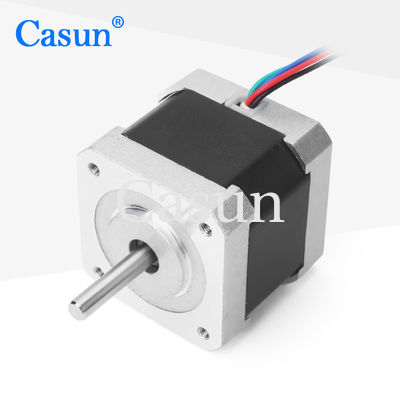

【42SHD4231】NEMA 17 Bipolar Stepper Motor DC 12V 1.7A 40mm body with 4 wire for CNC Machine 1



Motor Specifications



Step Angel

1.8 °

Fram Size

40 mm

Number of Phase

2 Phase

Rated Current

1.7 A

Holding Torque

400 mN.m

Resistance

1.5 ohm

Inductance

2.8 mH

Rotor Inertia

57 g-cm²

Motor weight

0.3 kg

Number of leads

4

Connection

Bipolar

Operating Specifications

Step Angle: 1.8°

Maximum  Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min







Torque Curves













Submodels

Model Holding Torque Step Angle Motor Length Type of Shaft Rated Current
42SHD4950 0.13N.m 1.8° 20mm D Shaft-20mm 1.0A
42SHD4003 0.26N.m 1.8° 34mm D Shaft-20mm 0.4A
42SHD0261 0.45N.m 1.8° 40mm D Shaft-20mm 1.68A
42SHD4425 0.59N.m 1.8° 48mm D Shaft-24mm 2.0A
42SHD4813 0.8N.m 1.8° 60mm D Shaft-24mm 2.1A





Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs


Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:

Encoder

Brake

Gearbox

Shaft

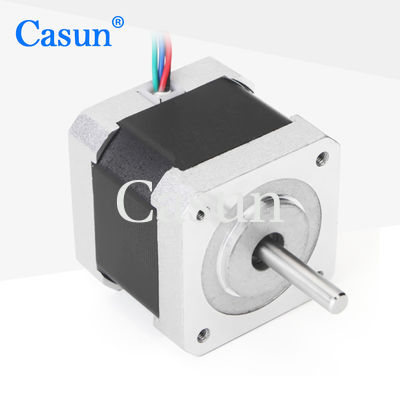

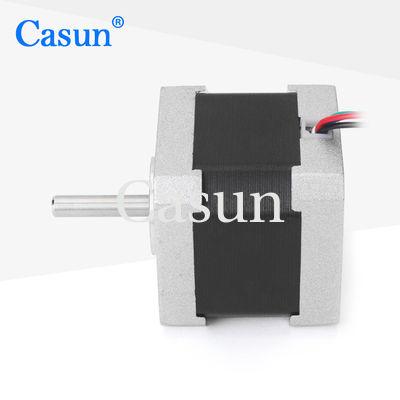

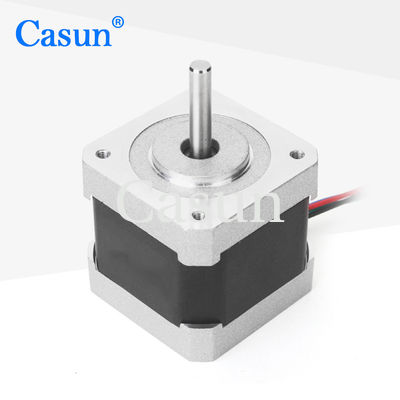

【42SHD4231】NEMA 17 Bipolar Stepper Motor DC 12V 1.7A 40mm body with 4 wire for CNC Machine 2 【42SHD4231】NEMA 17 Bipolar Stepper Motor DC 12V 1.7A 40mm body with 4 wire for CNC Machine 3 【42SHD4231】NEMA 17 Bipolar Stepper Motor DC 12V 1.7A 40mm body with 4 wire for CNC Machine 4 【42SHD4231】NEMA 17 Bipolar Stepper Motor DC 12V 1.7A 40mm body with 4 wire for CNC Machine 5
