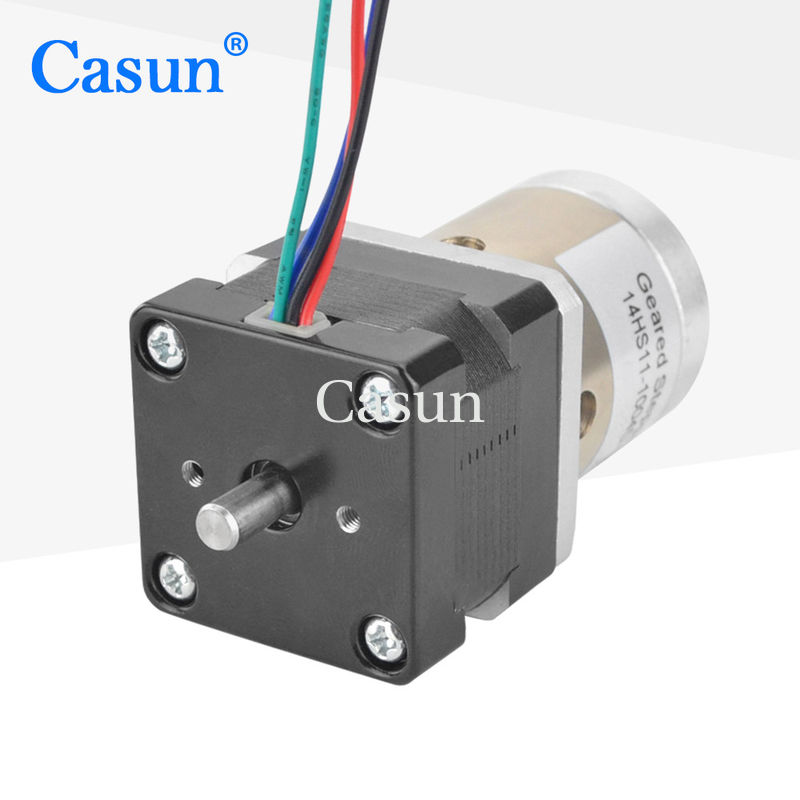

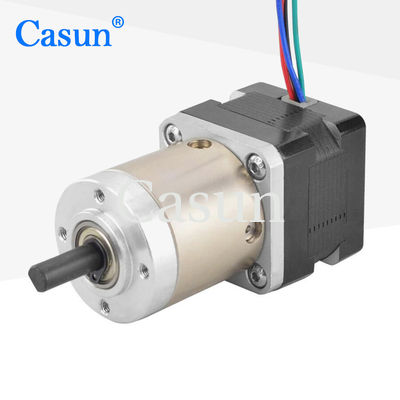

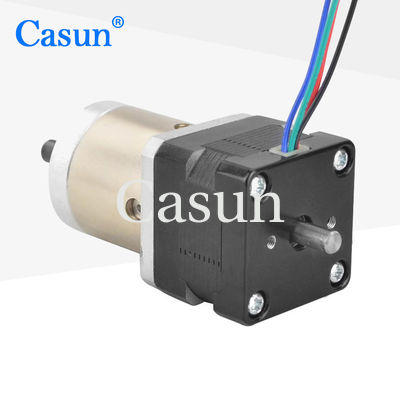

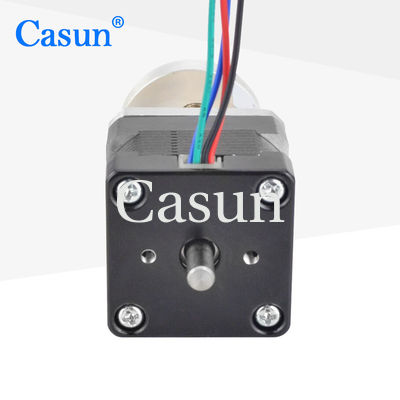

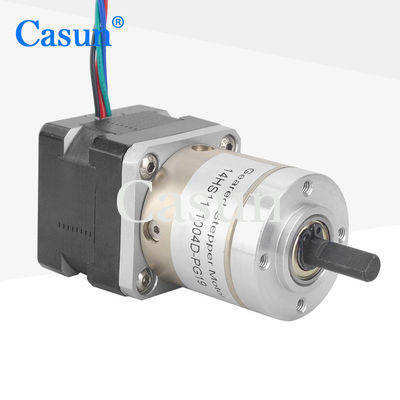

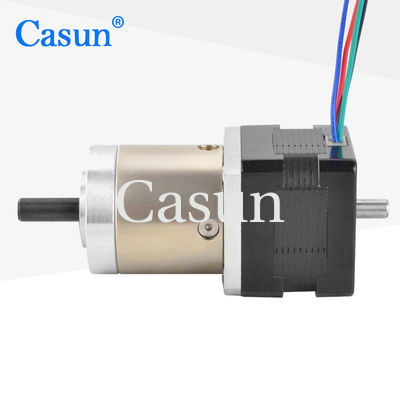

1.0A NEMA 14 Geared Stepper Motor 35x35x28.5mm Gearbox Stepper Motor

Product Details

Place of Origin: CHINA

Brand Name: Casun

Certification: CE,ROHS,ISO

Model Number: 14HS11-1004D-PG19

Payment & Shipping Terms

Minimum Order Quantity: 1PC

Price: $24.15-$27.15

Packaging Details: Carton:36x29x14cm

Delivery Time: 7-15 days

Payment Terms: D/A, T/T, L/C, D/P

Supply Ability: 40000+PCS+Month

Get Best Price
Product Details
High Light:

35x35 Gearbox Stepper Motor

,

28.5mm Gearbox Stepper Motor

,

1.0A NEMA 14 Geared Stepper Motor

Key Words:
Geared Stepper Motor
Voltage:
3.5
Weight:
0.4KG
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Key Words:
Geared Stepper Motor
Voltage:
3.5
Weight:
0.4KG
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Product Description

35mmx35mmx28.5mm China Nema14 gearbox stepper motor high speed step motor

The 42mm Hybrid Stepper Motor Series offers powerful holding torque in a variety of sizes.

Use with a microstepping driver to reduce vibration and achieve higher step resolution.

Choose a baseline version or request your own customized configuration.



Features:

  • Bipolar or unipolar versions available

  • Hybrid stepper construction

  • Available in single or double shaft versions

  • CE and RoHS approved

  • Customizations on request

Dimensions

1.0A NEMA 14 Geared Stepper Motor 35x35x28.5mm Gearbox Stepper Motor 0







Motor Specifications



Step Angel



1.8 °

Fram Size



35 mm

Number of Phase



2 Phase

Rated Current



1.0 A

Holding Torque



125 mN.m

Resistance



3.5 0hm

Inductance



3.5 mH

Rotor Inertia



10g-cm²

Motor weight



0.4kg

Gear Reduction Ratio





19.2:1

Connection



Bipolar



Operating Specifications



Motor



Step Angle: 1.8°

Maximum  Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min



Gear Box



Housing Material:Metal
Bearing at Output:Ball Bearings
Max.Radial Load(12mm from flange):≤80N
Max.Shaft Axial Load:≤30N
Radial Play of Shaft (near to Flange):≤0.06mm
Axial Play of Shaft:≤0.3mm
Backlash at No-load:1.5°











Torque Curves







Submodels

Motor Length Length of Gearbox Raio Efficiency
34 mm

40 mm

48 mm

60 mm
27.2 mm 3.71 90%
5.18
35 mm 13.76 80%
19.2
26.8
42.7 mm 51 70%
71
99.5
139


Download





If our standard motor cannot meet your needs,

we can customize the motor according to your needs


Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:
            Encoder          |               Brake           |              Gearbox            |           Shaft

1.0A NEMA 14 Geared Stepper Motor 35x35x28.5mm Gearbox Stepper Motor 1 1.0A NEMA 14 Geared Stepper Motor 35x35x28.5mm Gearbox Stepper Motor 2 1.0A NEMA 14 Geared Stepper Motor 35x35x28.5mm Gearbox Stepper Motor 3 1.0A NEMA 14 Geared Stepper Motor 35x35x28.5mm Gearbox Stepper Motor 4





Please click the "Get  a quote" button below to tell us your requirements.
