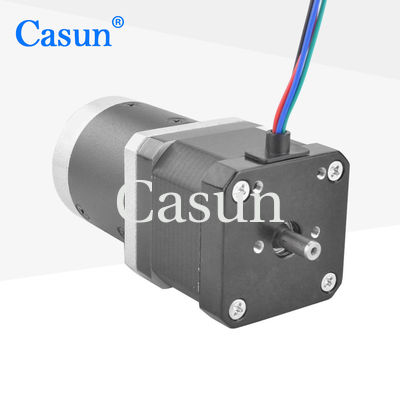

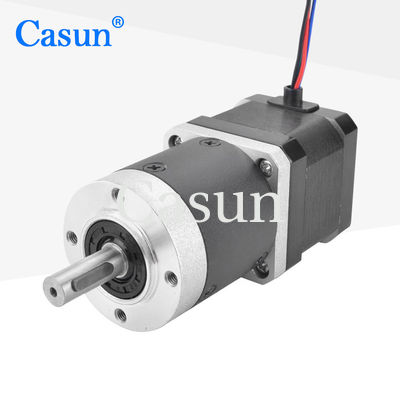

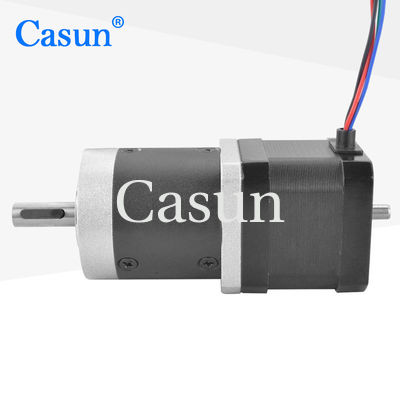

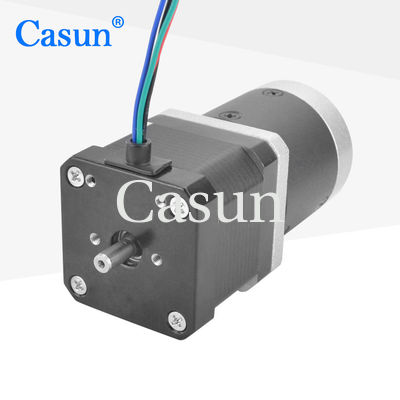

Bipolar Nema 17 Stepper Motor With Gearbox Casun Stepper Motor CE RoHS

Bipolar Nema 17 Stepper Motor With Gearbox Casun Stepper Motor CE RoHS

Bipolar Nema 17 Stepper Motor

Nema 17 Stepper Motor With Gearbox

Gearbox Casun Stepper Motor

Place of Origin:

CHINA

Brand Name:

Casun

Certification:

CE,ROHS,ISO

Model Number:

17HS15-1684D-HG50

Contact Us

Request A Quote
Product Details
Key Words:
Geared Stepper Motor
Voltage:
2.8V DC
Weight:
0.9KG
Step Angle(degrees):
1.8 Degree
Ratio:
50:1
Payment & Shipping Terms
Minimum Order Quantity
1PC
Price
$24-$27
Packaging Details
Carton:36x29x14cm
Delivery Time
7-15 days
Payment Terms
D/A, T/T, L/C, D/P
Supply Ability
40000+PCS+Month
RELATED PRODUCTS
Contact Us
86-020-36907671
Contact Now
Product Description

Nema 17 stepper motor gear reduction 2.8V 1.6Amp 42mmx42mm stepper motor with planetary gearbox

The 42mm Hybrid Stepper Motor Series offers powerful holding torque in a variety of sizes.

Use with a microstepping driver to reduce vibration and achieve higher step resolution.

Choose a baseline version or request your own customized configuration.



Features:

  • Bipolar or unipolar versions available

  • Hybrid stepper construction

  • Available in single or double shaft versions

  • CE and RoHS approved

  • Customizations on request

Dimensions

Bipolar Nema 17 Stepper Motor With Gearbox Casun Stepper Motor CE RoHS 0







Motor Specifications



Step Angel



1.8 °

Fram Size



42mm

Number of Phase



2 Phase

Rated Current



1.68Amp

Holding Torque



390mN.m

Resistance



1.65 ohm

Inductance



3.2 mH

Rotor Inertia



57g-cm²

Motor weight



0.9kg

Gear Reduction Ratio





50:1

Connection



Bipolar



Operating Specifications



Motor



Step Angle: 1.8°

Maximum  Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min



Gear Box



Housing Material:Metal
Bearing at Output:Ball Bearings
Max.Radial Load(12mm from flange):≤80N
Max.Shaft Axial Load:≤30N
Radial Play of Shaft (near to Flange):≤0.06mm
Axial Play of Shaft:≤0.3mm
Backlash at No-load:1.5°











Torque Curves







Submodels

Motor Length Length of Gearbox Raio Efficiency
34 mm

40 mm

48 mm

60 mm
27.2 mm 3.71 90%
5.18
35 mm 13.76 80%
19.2
26.8
42.7 mm 51 70%
71
99.5
139


Download





If our standard motor cannot meet your needs,

we can customize the motor according to your needs


Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:
            Encoder          |               Brake           |              Gearbox            |           Shaft

Bipolar Nema 17 Stepper Motor With Gearbox Casun Stepper Motor CE RoHS 1 Bipolar Nema 17 Stepper Motor With Gearbox Casun Stepper Motor CE RoHS 2 Bipolar Nema 17 Stepper Motor With Gearbox Casun Stepper Motor CE RoHS 3 Bipolar Nema 17 Stepper Motor With Gearbox Casun Stepper Motor CE RoHS 4
