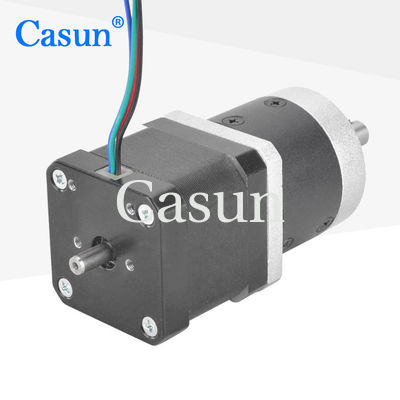

2.8V 1.6Amp Nema 17 Gear Reduction Motor 390mNm 42mm Stepper Motor

2.8V 1.6Amp Nema 17 Gear Reduction Motor 390mNm 42mm Stepper Motor

Brand Name: Casun
Model Number: 17HS15-1684D-HG10
MOQ: 1PC
Price: $20-$23
Payment Terms: D/A, T/T, L/C, D/P
Supply Ability: 40000+PCS+Month
Detail Information
Place of Origin:
CHINA
Certification:
CE,ROHS,ISO
Key Words:
Geared Stepper Motor
Voltage:
2.8V DC
Weight:
0.9KG
Step Angle(degrees):
1.8 Degree
Ratio:
10:1
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Packaging Details:
Carton:36x29x14cm
Highlight:

1.6Amp Nema 17 Gear Reduction Motor

,

2.8V Nema 17 Gear Reduction Motor

,

42mm Stepper Motor

Product Description

stepper motor gear reduction Nema 17 2.8V 1.6Amp 42mmx42mm stepper motor gear reduction motor

The 42mm Hybrid Stepper Motor Series offers powerful holding torque in a variety of sizes.

Use with a microstepping driver to reduce vibration and achieve higher step resolution.

Choose a baseline version or request your own customized configuration.



Features:

  • Bipolar or unipolar versions available

  • Hybrid stepper construction

  • Available in single or double shaft versions

  • CE and RoHS approved

  • Customizations on request

Dimensions

2.8V 1.6Amp Nema 17 Gear Reduction Motor 390mNm 42mm Stepper Motor 0







Motor Specifications



Step Angel



1.8 °

Fram Size



42mm

Number of Phase



2 Phase

Rated Current



1.68Amp

Holding Torque



390mN.m

Resistance



1.65 ohm

Inductance



3.2 mH

Rotor Inertia



57g-cm²

Motor weight



0.9kg

Gear Reduction Ratio





10:1

Connection



Bipolar



Operating Specifications



Motor



Step Angle: 1.8°

Maximum  Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min



Gear Box



Housing Material:Metal
Bearing at Output:Ball Bearings
Max.Radial Load(12mm from flange):≤80N
Max.Shaft Axial Load:≤30N
Radial Play of Shaft (near to Flange):≤0.06mm
Axial Play of Shaft:≤0.3mm
Backlash at No-load:1.5°











Torque Curves







Submodels

Motor Length Length of Gearbox Raio Efficiency
34 mm

40 mm

48 mm

60 mm
27.2 mm 3.71 90%
5.18
35 mm 13.76 80%
19.2
26.8
42.7 mm 51 70%
71
99.5
139


Download





If our standard motor cannot meet your needs,

we can customize the motor according to your needs


Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:
            Encoder          |               Brake           |              Gearbox            |           Shaft

2.8V 1.6Amp Nema 17 Gear Reduction Motor 390mNm 42mm Stepper Motor 1 2.8V 1.6Amp Nema 17 Gear Reduction Motor 390mNm 42mm Stepper Motor 2 2.8V 1.6Amp Nema 17 Gear Reduction Motor 390mNm 42mm Stepper Motor 3 2.8V 1.6Amp Nema 17 Gear Reduction Motor 390mNm 42mm Stepper Motor 4





Please click the "Get  a quote" button below to tell us your requirements.
