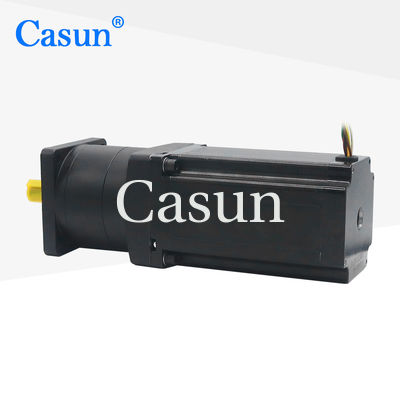

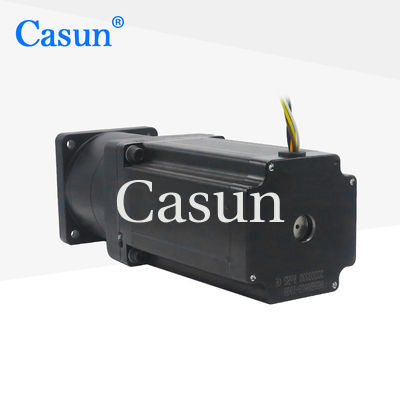

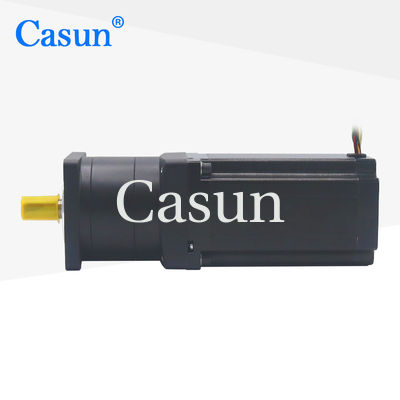

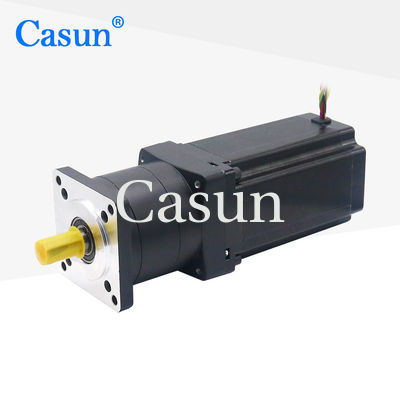

2.8Amp 86mm NEMA 34 Geared Stepper Motor 3D Printed Robot Arm Stepper Motors
  • 2.8Amp 86mm NEMA 34 Geared Stepper Motor 3D Printed Robot Arm Stepper Motors
  • 2.8Amp 86mm NEMA 34 Geared Stepper Motor 3D Printed Robot Arm Stepper Motors
  • 2.8Amp 86mm NEMA 34 Geared Stepper Motor 3D Printed Robot Arm Stepper Motors
  • 2.8Amp 86mm NEMA 34 Geared Stepper Motor 3D Printed Robot Arm Stepper Motors
  • 2.8Amp 86mm NEMA 34 Geared Stepper Motor 3D Printed Robot Arm Stepper Motors

2.8Amp 86mm NEMA 34 Geared Stepper Motor 3D Printed Robot Arm Stepper Motors

Place of Origin CHINA
Brand Name Casun
Certification CE,ROHS,ISO
Model Number 86SHD8503-10GH
Product Details
Key Words:
Geared Stepper Motor
Voltage:
5.04V DC
Weight:
5.0KG
Step Angle(degrees):
1.8 Degree
Ratio:
10.562:1
High Light:

86mm NEMA 34 Geared Stepper Motor

,

2.8Amp NEMA 34 Geared Stepper Motor

,

3D Printed Robot Arm Stepper Motors

Payment & Shipping Terms
Minimum Order Quantity
1PC
Price
$68.15-$71.15
Packaging Details
Carton:36x29x14cm
Delivery Time
7-15 days
Payment Terms
D/A, T/T, L/C, D/P
Supply Ability
40000+PCS+Month
Product Description

NEMA34 86MM gearbox stepper motor high torque stepper motor for robotics monitoring equipment

The 42mm Hybrid Stepper Motor Series offers powerful holding torque in a variety of sizes.

Use with a microstepping driver to reduce vibration and achieve higher step resolution.

Choose a baseline version or request your own customized configuration.



Features:

  • Bipolar or unipolar versions available

  • Hybrid stepper construction

  • Available in single or double shaft versions

  • CE and RoHS approved

  • Customizations on request

Dimensions

2.8Amp 86mm NEMA 34 Geared Stepper Motor 3D Printed Robot Arm Stepper Motors 0







Motor Specifications



Step Angel



1.8 °

Fram Size



86mm

Number of Phase



2 Phase

Rated Current



2.8Amp

Holding Torque



10.6N.m

Resistance



1.68ohm

Inductance



18.8mH

Rotor Inertia



3600g-cm²

Motor weight



5.0kg

Gear Reduction Ratio





10.562:1

Connection



Bipolar



Operating Specifications



Motor



Step Angle: 1.8°

Maximum  Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min



Gear Box



Housing Material:Metal
Bearing at Output:Ball Bearings
Max.Radial Load(12mm from flange):≤80N
Max.Shaft Axial Load:≤30N
Radial Play of Shaft (near to Flange):≤0.06mm
Axial Play of Shaft:≤0.3mm
Backlash at No-load:1.5°











Torque Curves







Submodels

Motor Length Length of Gearbox Raio Efficiency
34 mm

40 mm

48 mm

60 mm
27.2 mm 3.71 90%
5.18
35 mm 13.76 80%
19.2
26.8
42.7 mm 51 70%
71
99.5
139


Download





If our standard motor cannot meet your needs,

we can customize the motor according to your needs


Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:
            Encoder          |               Brake           |              Gearbox            |           Shaft

2.8Amp 86mm NEMA 34 Geared Stepper Motor 3D Printed Robot Arm Stepper Motors 1 2.8Amp 86mm NEMA 34 Geared Stepper Motor 3D Printed Robot Arm Stepper Motors 2 2.8Amp 86mm NEMA 34 Geared Stepper Motor 3D Printed Robot Arm Stepper Motors 3 2.8Amp 86mm NEMA 34 Geared Stepper Motor 3D Printed Robot Arm Stepper Motors 4





Please click the "Get  a quote" button below to tell us your requirements.
