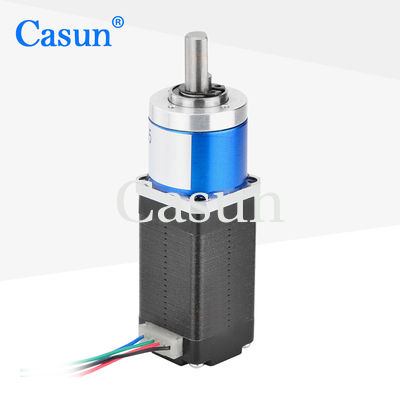

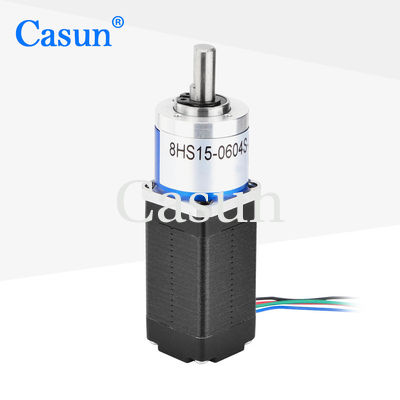

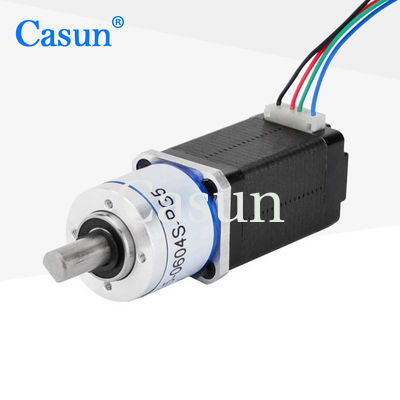

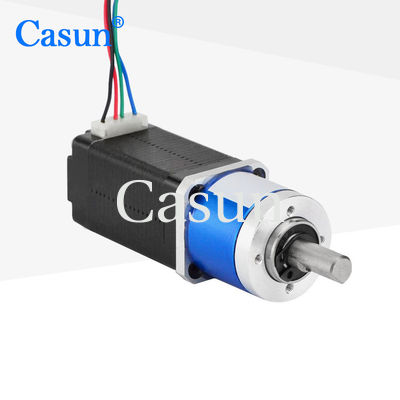

20x20mm NEMA 8 Geared Stepper Motor Gear Reducer Miniature Deceleration
  • 20x20mm NEMA 8 Geared Stepper Motor Gear Reducer Miniature Deceleration
  • 20x20mm NEMA 8 Geared Stepper Motor Gear Reducer Miniature Deceleration
  • 20x20mm NEMA 8 Geared Stepper Motor Gear Reducer Miniature Deceleration
  • 20x20mm NEMA 8 Geared Stepper Motor Gear Reducer Miniature Deceleration
  • 20x20mm NEMA 8 Geared Stepper Motor Gear Reducer Miniature Deceleration

20x20mm NEMA 8 Geared Stepper Motor Gear Reducer Miniature Deceleration

Place of Origin CHINA
Brand Name Casun
Certification CE,ROHS,ISO
Model Number 20SHD4303-16G-2
Product Details
Current / Phase:
0.2Amp
Product Name:
Stepper Motor With Geared
Motor Length:
28mm
High Light:

20x20mm NEMA 8 Geared Stepper Motor

,

NEMA 8 Stepper Motor Gear Reducer

,

Miniature Deceleration Stepper Motor

Payment & Shipping Terms
Minimum Order Quantity
1PC
Price
$23.8-$26.9
Packaging Details
Carton:36x29x14cm
Delivery Time
7-15 days
Payment Terms
D/A, T/T, L/C, D/P
Supply Ability
40000+PCS+Month
Product Description

Stepper Motor Gear Reducer 20mmx20mm 2 Phase Miniature Deceleration Stepper Motor

The 42mm Hybrid Stepper Motor Series offers powerful holding torque in a variety of sizes.

Use with a microstepping driver to reduce vibration and achieve higher step resolution.

Choose a baseline version or request your own customized configuration.



Features:

  • Bipolar or unipolar versions available

  • Hybrid stepper construction

  • Available in single or double shaft versions

  • CE and RoHS approved

  • Customizations on request

Dimensions

20x20mm NEMA 8 Geared Stepper Motor Gear Reducer Miniature Deceleration 0







Motor Specifications



Step Angel



1.8 °

Fram Size



20mm

Number of Phase



2 Phase

Rated Current



0.2 Amp

Holding Torque



14 mN.m

Resistance



22om

Inductance



6.0mH

Rotor Inertia



2g-cm²

Motor weight



0.1kg

Gear Reduction Ratio





16:1

Connection



Bipolar



Operating Specifications



Motor



Step Angle: 1.8°

Maximum  Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min



Gear Box



Housing Material:Metal
Bearing at Output:Ball Bearings
Max.Radial Load(12mm from flange):≤80N
Max.Shaft Axial Load:≤30N
Radial Play of Shaft (near to Flange):≤0.06mm
Axial Play of Shaft:≤0.3mm
Backlash at No-load:1.5°











Torque Curves







Submodels

Motor Length Length of Gearbox Raio Efficiency
34 mm

40 mm

48 mm

60 mm
27.2 mm 3.71 90%
5.18
35 mm 13.76 80%
19.2
26.8
42.7 mm 51 70%
71
99.5
139


Download





If our standard motor cannot meet your needs,

we can customize the motor according to your needs


Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:
            Encoder          |               Brake           |              Gearbox            |           Shaft

20x20mm NEMA 8 Geared Stepper Motor Gear Reducer Miniature Deceleration 1 20x20mm NEMA 8 Geared Stepper Motor Gear Reducer Miniature Deceleration 2 20x20mm NEMA 8 Geared Stepper Motor Gear Reducer Miniature Deceleration 3 20x20mm NEMA 8 Geared Stepper Motor Gear Reducer Miniature Deceleration 4





Please click the "Get  a quote" button below to tell us your requirements.
