12.5V 0.5A Nema 17 40mm Stepper Motor With Planetary Gearbox

12.5V 0.5A Nema 17 40mm Stepper Motor With Planetary Gearbox

Brand Name:	Casun
Model Number:	42SHD0202-5G
MOQ:	1PC
Price:	$20.92-$23.92
Payment Terms:	D/A, T/T, L/C, D/P
Supply Ability:	40000+PCS+Month

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

CE,ROHS,ISO

Current / Phase:

0.5A

Product Name:

Stepper Motor With Geared

Motor Length:

40mm

Customized:

The Motor Can Be Designed &manufactured With Customized Request.

Packaging Details:

Carton:36x29x14cm

Highlight:

12.5V 0.5A Nema 17 40mm

Nema 17 40mm Stepper Motor

40mm Stepper Motor With Planetary Gearbox

Product Description

12.5V 0.5A Nema 17 40mm Stepper Motor With Planetary Gearbox

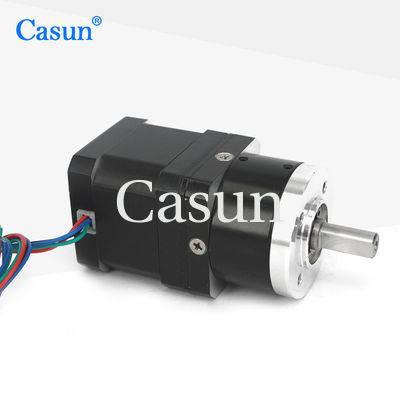

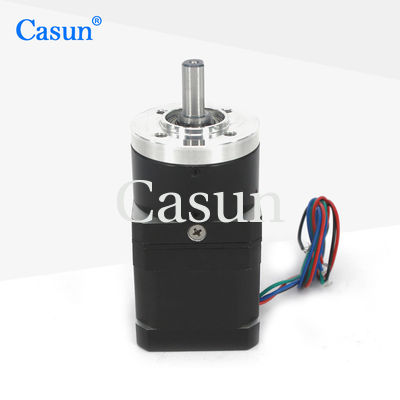

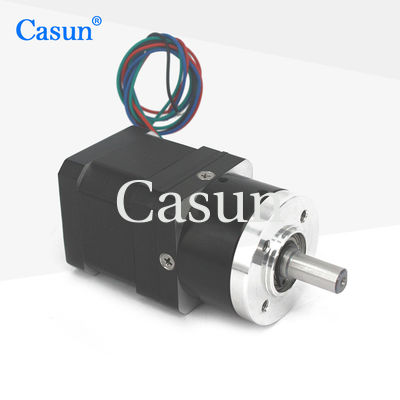

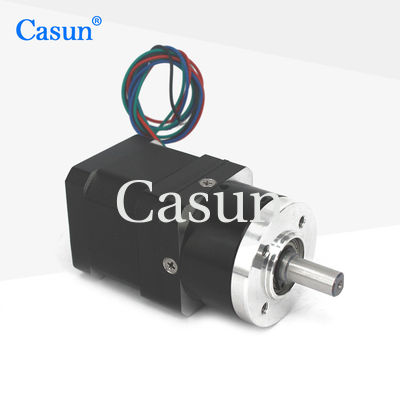

Geared stepper motor Nema 17 12.5V 0.5A 0.65KG step motor with planetary gearbox. The 42mm Hybrid Stepper Motor Series offers powerful holding torque in a variety of sizes. Use with a microstepping driver to reduce vibration and achieve higher step resolution. Choose a baseline version or request your own customized configuration.

Features

Bipolar or unipolar versions available
Hybrid stepper construction
Available in single or double shaft versions
CE and RoHS approved
Customizations on request

Dimensions

Motor Specifications

Step Angle	1.8°
Frame Size	42mm
Number of Phase	2 Phase
Rated Current	0.5A
Holding Torque	1.3N.m
Resistance	25Ω
Inductance	50mH
Rotor Inertia	57g-cm²
Motor Weight	0.65kg
Gear Reduction Ratio	5.18:1
Connection	Bipolar

Operating Specifications

Motor

Step Angle	1.8°
Maximum Temperature	80°C maximum
Ambient Temperature	-20°C to 50°C
Storage Temperature	-20°C to 100°C
Humidity Range	85% or less, non-condensing
Magnet Wire Insulation	Class B 130°C
Insulation Resistance	100M Ohm at 500 VDC
Dielectric Strength	500 VDC for 1 min

Gear Box

Housing Material	Metal
Bearing at Output	Ball Bearings
Max. Radial Load (12mm from flange)	≤80N
Max. Shaft Axial Load	≤30N
Radial Play of Shaft (near to Flange)	≤0.06mm
Axial Play of Shaft	≤0.3mm
Backlash at No-load	1.5°

Submodels

Motor Length	Length of Gearbox	Ratio	Efficiency
34 mm	27.2 mm	3.71	90%
40 mm		5.18	35 mm
48 mm		13.76
60 mm		19.2
26.8	42.7 mm	51	70%
71		99.5
139

Customization Options

If our standard motor cannot meet your needs, we can customize the motor according to your requirements. Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Encoder

Brake

Gearbox

Shaft

Please click the "Get a quote" button below to tell us your requirements.

Get a Quote
