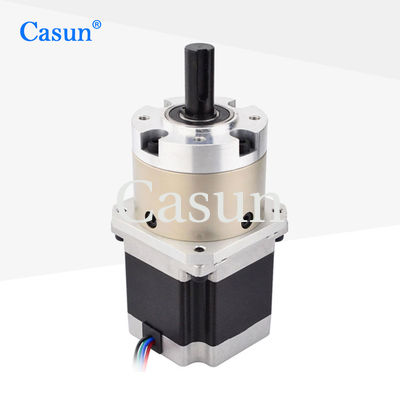

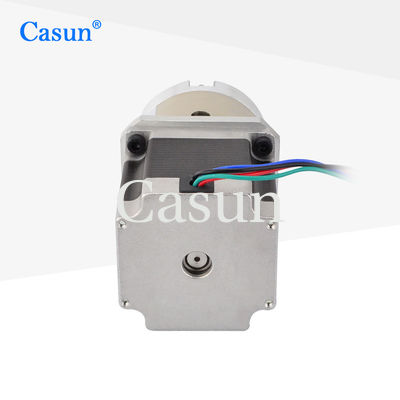

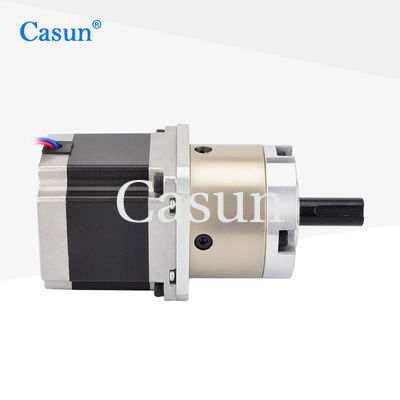

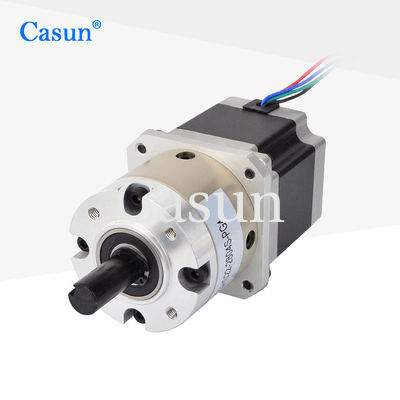

NEMA23 Geared Casun Motor 2.8A 1.2N.M Robot Arm Gearbox Stepper Motor

NEMA23 Geared Casun Motor 2.8A 1.2N.M Robot Arm Gearbox Stepper Motor

  • High Light

    NEMA23 Geared Casun Motor

    ,

    1.2N.M Robot Arm Gearbox Stepper Motor

    ,

    Casun Motor 2.8A

  • Steper Angle
    1.8degree
  • Phase
    2
  • Rated Voltage
    2.52V
  • Rate Current
    2.8A
  • Holding Torque
    1.2N.m
  • Detent Torque
    0.04N.m
  • Ratio
    46.65:1
  • Place of Origin
    China
  • Brand Name
    Casun
  • Certification
    CE,ROHS,ISO
  • Model Number
    57SHD4425-46G
  • Minimum Order Quantity
    1PC
  • Price
    $22.49-$27
  • Packaging Details
    Carton:38x29x18cm
  • Delivery Time
    7-15 days
  • Payment Terms
    D/A, T/T, L/C, D/P
  • Supply Ability
    40000+PCS+Month

NEMA23 Geared Casun Motor 2.8A 1.2N.M Robot Arm Gearbox Stepper Motor

NEMA 23 Ratio 46.64:1 Geared Stepper Motor Casun 2.8A 1.2N.m Gearbox for Robotic Arm

NEMA 23 Planetary Gearbox Stepper Motor Gear Reduction Ratio 1:64 23HS22-280 for CNC Medical Appliance Robotic Arm

The 42mm Hybrid Stepper Motor Series offers powerful holding torque in a variety of sizes.

Use with a microstepping driver to reduce vibration and achieve higher step resolution.

Choose a baseline version or request your own customized configuration.



Features:

  • Bipolar or unipolar versions available

  • Hybrid stepper construction

  • Available in single or double shaft versions

  • CE and RoHS approved

  • Customizations on request

Dimensions

NEMA23 Geared Casun Motor 2.8A 1.2N.M Robot Arm Gearbox Stepper Motor 0







Motor Specifications



Step Angel



1.8 °

Fram Size



57 mm

Number of Phase



2 Phase

Rated Current



2.8 A

Holding Torque



1250mN.m

Resistance



0.9 hm

Inductance



2.5 mH

Rotor Inertia



260 g-cm²

Motor weight



1.1 kg

Gear Reduction Ratio





46.661

Connection



Bipolar



Operating Specifications



Motor



Step Angle: 1.8°

Maximum  Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min



Gear Box



Housing Material:Metal

Bearing at Output:Ball Bearings

Max.Radial Load(12mm from flange):≤250N

Max.Shaft Axial Load:≤100N

Radial Play of Shaft (near to Flange):≤0.08m

Axial Play of Shaft:≤0.4mm

Backlash at No-load:≤2.5°













Torque Curves









Submodels

Motor Length Length of Gearbox Raio Efficiency
41 mm

54 mm

76 mm

83 mm

100 mm


48 mm 3.6 90%
4.25
60 mm 12.96 80%
15.3
18.1
72 mm 46.66 70%
55.08
65.025
76.77




Download



If our standard motor cannot meet your needs,

we can customize the motor according to your needs


Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

FAQ

1. who are we?

We are based in Guangdong, China, start from 2011,sell to Domestic Market(63.00%),Western Europe(12.00%),North America(9.00%),Eastern Asia(8.00%),Northern Europe(2.00%),Eastern Europe(00.00%),Southeast Asia(00.00%),Oceania(00.00%),Mid East(00.00%),Southern Europe(00.00%),South Asia(00.00%). There are total about 51-100 people in our office.



2. how can we guarantee quality?

Always a pre-production sample before mass production;

Always final Inspection before shipment;



3.what can you buy from us?

Stepper Motor,BLDC Motor



4. why should you buy from us not from other suppliers?

We are specialized in producing and selling stepper motors for more than 11 years.



5. what services can we provide?

Accepted Delivery Terms: FOB,CFR,CIF,EXW,Express Delivery;

Accepted Payment Currency:USD,CNY;

Accepted Payment Type: T/T,L/C,D/P D/A,,PayPal;

Language Spoken:English,Chinese,Japanese



Options:
            Encoder          |               Brake           |              Gearbox            |           Shaft

NEMA23 Geared Casun Motor 2.8A 1.2N.M Robot Arm Gearbox Stepper Motor 1 NEMA23 Geared Casun Motor 2.8A 1.2N.M Robot Arm Gearbox Stepper Motor 2 NEMA23 Geared Casun Motor 2.8A 1.2N.M Robot Arm Gearbox Stepper Motor 3 NEMA23 Geared Casun Motor 2.8A 1.2N.M Robot Arm Gearbox Stepper Motor 4
