Home > products > Geared Stepper Motor > Casun 28*40.5mm NEMA 11 Gearbox Stepper Motor 0.95A stepping motor 3.6V AR3 Open Source Robot

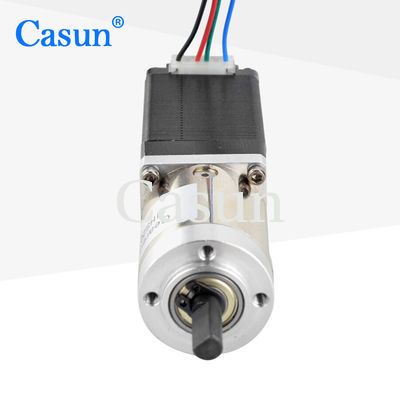

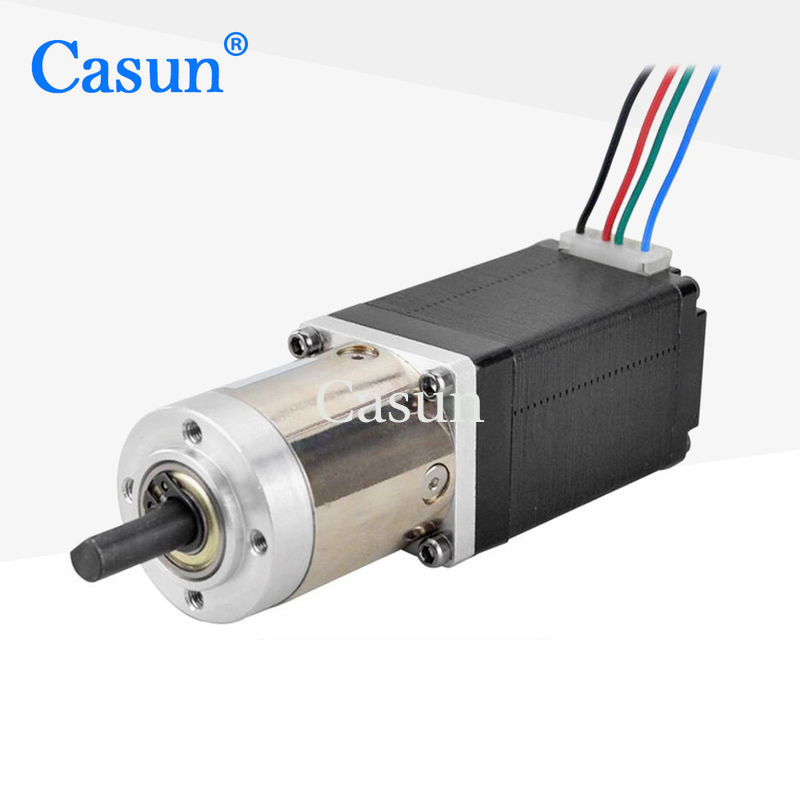

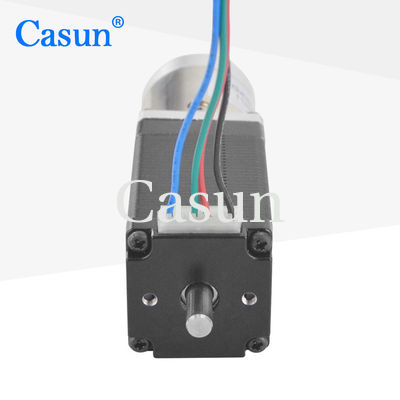

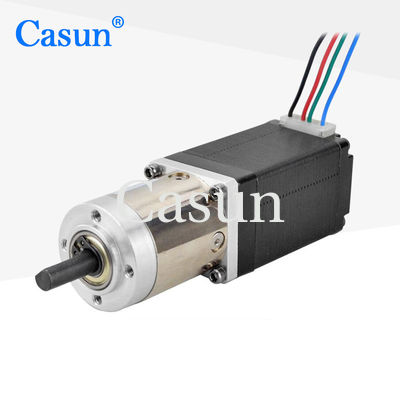

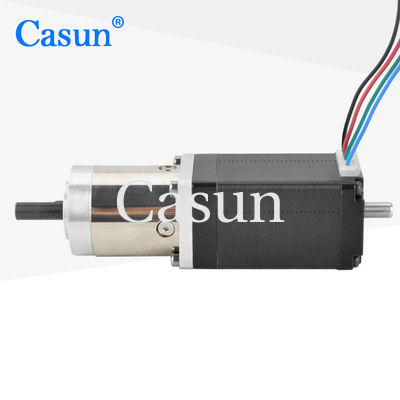

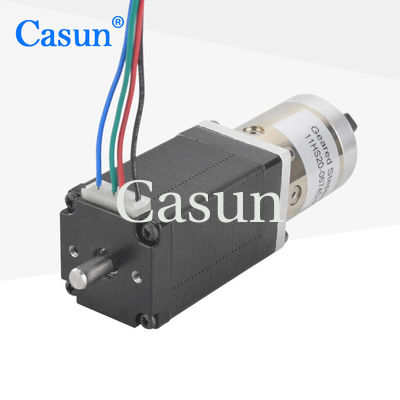

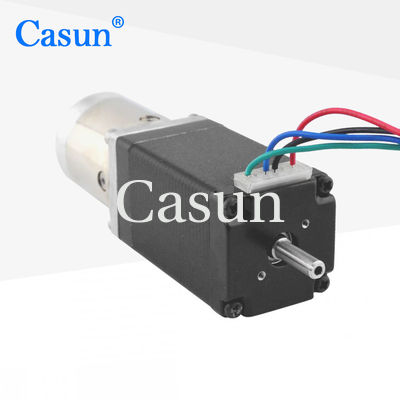

Casun 28*40.5mm NEMA 11 Gearbox Stepper Motor 0.95A stepping motor 3.6V AR3 Open Source Robot
Casun 28*40.5mm NEMA 11 Gearbox Stepper Motor 0.95A stepping motor 3.6V AR3 Open Source Robot
Casun 28*40.5mm NEMA 11 Gearbox Stepper Motor 0.95A stepping motor 3.6V AR3 Open Source Robot
Casun 28*40.5mm NEMA 11 Gearbox Stepper Motor 0.95A stepping motor 3.6V AR3 Open Source Robot
Casun 28*40.5mm NEMA 11 Gearbox Stepper Motor 0.95A stepping motor 3.6V AR3 Open Source Robot
Casun 28*40.5mm NEMA 11 Gearbox Stepper Motor 0.95A stepping motor 3.6V AR3 Open Source Robot
Casun 28*40.5mm NEMA 11 Gearbox Stepper Motor 0.95A stepping motor 3.6V AR3 Open Source Robot
Casun 28*40.5mm NEMA 11 Gearbox Stepper Motor 0.95A stepping motor 3.6V AR3 Open Source Robot

Casun 28*40.5mm NEMA 11 Gearbox Stepper Motor 0.95A stepping motor 3.6V AR3 Open Source Robot

Product Details

Place of Origin: China

Brand Name: Casun

Certification: CE,ROHS,ISO

Model Number: 28SHD4301-19G

Payment & Shipping Terms

Minimum Order Quantity: 1PC

Price: $24-$35

Packaging Details: Carton:36x29x14cm

Delivery Time: 7-15 days

Payment Terms: D/A, T/T, L/C, D/P

Supply Ability: 40000+PCS+Month

Get Best Price

Product Details

Product Description
Product Details
High Light:

NEMA 11 Geared Stepper Motor

,

0.67A Geared Stepper Motor

,

Open Source Robot Geared Stepper Motor

Stepper Motor:
NEMA11
Phase:
2
Holding Torque:
100mN.m
Rated Voltage:
2.6V
Rate Current:
0.95A
Phase Resistance:
3.8ohm
Weight:
0.25
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Stepper Motor:
NEMA11
Phase:
2
Holding Torque:
100mN.m
Rated Voltage:
2.6V
Rate Current:
0.95A
Phase Resistance:
3.8ohm
Weight:
0.25
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Product Description

CASUN Stufe stufe 28*28*40.5mm NEMA 11 Geared Stepper Motor 0.95A stepping motor 3.6V AR3 Open-Source Robot



Planetary Gearbox with 28*28*40.5mm Casun 0.95A Nema 11 Stepper Motor



Micro Geared Stepper Motor with Planetary Gearbox and Small Gear Stepper Motor 28*28*40.5mm NEMA 11



In a range of sizes, the 28mm Hybrid Stepper Motor Series provides strong holding torque.



To lessen vibration and achieve a greater step resolution, use with a microstepping driver.



Select a standard version or ask for a specially configured version.



Features:

  • Bipolar or unipolar versions available

  • Hybrid stepper construction

  • Available in single or double shaft versions

  • CE and RoHS approved

  • Customizations on request

Dimensions

Casun 28*40.5mm NEMA 11 Gearbox Stepper Motor 0.95A stepping motor 3.6V AR3 Open Source Robot 0







Motor Specifications



Step Angel



1.8 °

Fram Size



28 mm

Number of Phase



2 Phase

Rated Current



0.95 A

Holding Torque



100mN.m

Resistance



3.8 om

Inductance



2 mH

Rotor Inertia



12g-cm²

Motor weight



0.25kg

Gear Reduction Ratio




19:1

Connection



Bipolar



Operating Specifications



Motor



Step Angle: 1.8°

Maximum  Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min



Gear Box



Housing Material:Metal
Bearing at Output:Ball Bearings
Max.Radial Load(12mm from flange):≤80N
Max.Shaft Axial Load:≤30N
Radial Play of Shaft (near to Flange):≤0.06mm
Axial Play of Shaft:≤0.3mm
Backlash at No-load:1.5°











Torque Curves







Submodels

Motor Length Length of Gearbox Raio Efficiency
34 mm

40 mm

48 mm

60 mm		 27.2 mm 3.71 90%
5.18
35 mm 13.76 80%
19.2
26.8
42.7 mm 51 70%
71
99.5
139


Download





If our basic motor is unable to satisfy your needs, we can modify the motor to do so.



Special shafts, winding parameters, installation measurements, lead wires with unique specifications, connections, etc. are only a few examples of customized content.

Options:
            Encoder          |               Brake           |              Gearbox            |           Shaft

Casun 28*40.5mm NEMA 11 Gearbox Stepper Motor 0.95A stepping motor 3.6V AR3 Open Source Robot 1 Casun 28*40.5mm NEMA 11 Gearbox Stepper Motor 0.95A stepping motor 3.6V AR3 Open Source Robot 2 Casun 28*40.5mm NEMA 11 Gearbox Stepper Motor 0.95A stepping motor 3.6V AR3 Open Source Robot 3 Casun 28*40.5mm NEMA 11 Gearbox Stepper Motor 0.95A stepping motor 3.6V AR3 Open Source Robot 4





Please click the "Get  a quote" button below to tell us your requirements.
