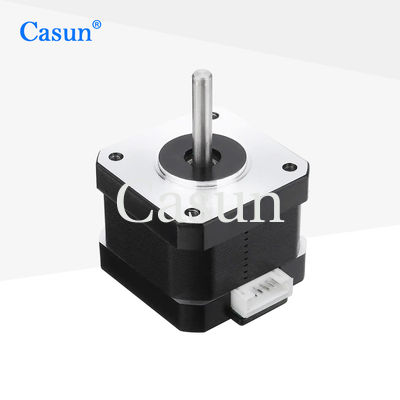

Nema17 Smart Stepper Motor 110mN.M 42X23mm Dc Motor For 3D Printer

Nema17 Smart Stepper Motor 110mN.M 42X23mm Dc Motor For 3D Printer

Brand Name:	Casun
Model Number:	42SHB4002-17H
MOQ:	1PC
Price:	$5.9-$9.99
Payment Terms:	D/A, T/T, L/C, D/P
Supply Ability:	40000+PCS+Month

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

CE,ROSH,ISO

Step Angel:

0.9 Degree

Holding Torque:

110mN.m

Current:

1.2A

Motor Length:

34mm

Shaft:

17mm Length

Customized:

The Motor Can Be Designed &manufactured With Customized Request.

Packaging Details:

Carton:36x29x14cm

Highlight:

Nema 17 Smart Stepper Motor

Smart Stepper Motor For 3D Printer

110mN.M NEMA 17 Stepper Motor

Product Description

Nema17 Smart Stepper Motor 110mN.M 42X23mm DC Motor For 3D Printer

The 42mm Hybrid Stepper Motor Series offers powerful holding torque in a variety of sizes. Use with a microstepping driver to reduce vibration and achieve higher step resolution. Choose a baseline version or request your own customized configuration.

Key Features

Bipolar or unipolar versions available
Accept contract manufacturing
Available in single or double shaft versions
Established in China for 12 years and has served more than 800 customers
Professional research and development manufacturing

Appearance

Dimensions

Motor Specifications

Step Angle	1.8°
Frame Size	42 mm
Number of Phase	2 Phase
Rated Current	1.2 A
Holding Torque	110mN.m
Resistance	1.65 ohm
Inductance	37 mH
Rotor Inertia	72 g-cm²
Motor Weight	0.38 kg
Number of Leads	4
Connection	Bipolar

Operating Specifications

Maximum Temperature	80°C maximum
Ambient Temperature	-20°C to 50°C
Storage Temperature	-20°C to 100°C
Humidity Range	85% or less, non-condensing
Magnet Wire Insulation	Class B 130 deg C
Insulation Resistance	100M Ohm at 500 VDC
Dielectric Strength	500 VDC for 1 min

Available Models

Model	Holding Torque	Step Angle	Motor Length	Type of Shaft	Rated Current
42SHD4950	0.13N.m	1.8°	20mm	D Shaft-20mm	1.0A
42SHD4003	0.26N.m	1.8°	34mm	D Shaft-20mm	0.4A
42SHD0261	0.45N.m	1.8°	40mm	D Shaft-20mm	1.68A
42SHD4425	0.59N.m	1.8°	48mm	D Shaft-24mm	2.0A
42SHD4813	0.8N.m	1.8°	60mm	D Shaft-24mm	2.1A

Customization Available

If our standard motor cannot meet your needs, we can customize the motor according to your requirements. Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Available Options

Encoder

Brake

Gearbox

Shaft

Please click the "Get a quote" button below to tell us your requirements.
