Home > products > Geared Stepper Motor > Gear Reducer 0.15 A Nema 17 Stepper Motor 1.8 Deg 2 Phase 1.2 N.M Holding Torque

Gear Reducer 0.15 A Nema 17 Stepper Motor 1.8 Deg 2 Phase 1.2 N.M Holding Torque

Product Details

Place of Origin: CHINA

Brand Name: Casun

Certification: CE,ROHS,ISO

Model Number: 42SHD0404-5G

Payment & Shipping Terms

Minimum Order Quantity: 1PC

Price: $12.41-$19.55

Packaging Details: Carton:36x29x14cm

Delivery Time: 7-15 days

Payment Terms: D/A, T/T, L/C, D/P

Supply Ability: 40000+PCS+Month

Get Best Price
Product Details
Highlight:

0.15 A Nema 17 Stepper Motor

,

2 Phase Nema 17 Stepper Motor

Holding Torque:
440mN.m
Lead Wire:
4
Length:
48mm
Rated Current:
1.5A
Rated Voltage:
3V
Gear Reduction Ratio:
5:1
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Holding Torque:
440mN.m
Lead Wire:
4
Length:
48mm
Rated Current:
1.5A
Rated Voltage:
3V
Gear Reduction Ratio:
5:1
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Product Description

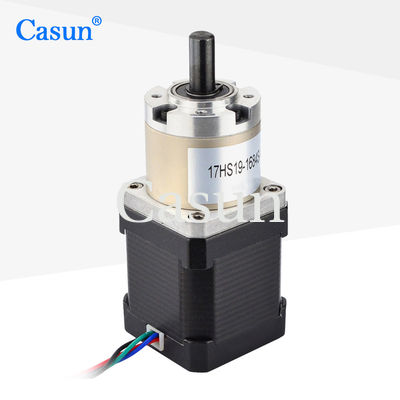

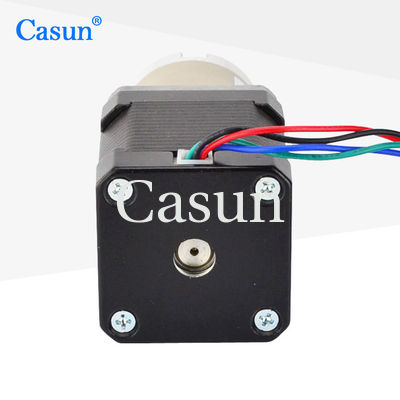

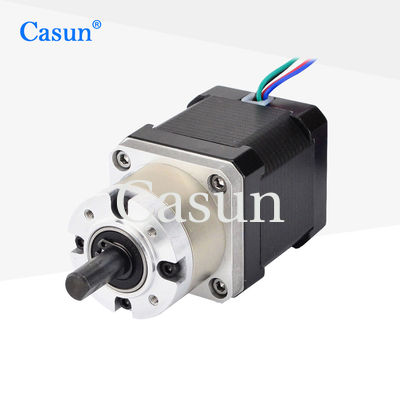

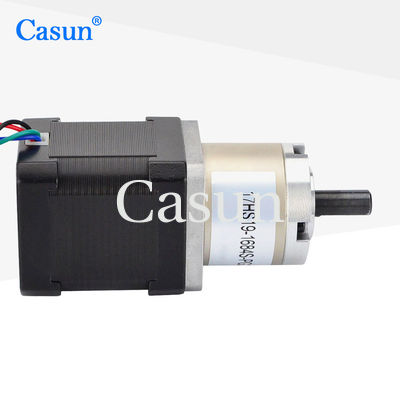

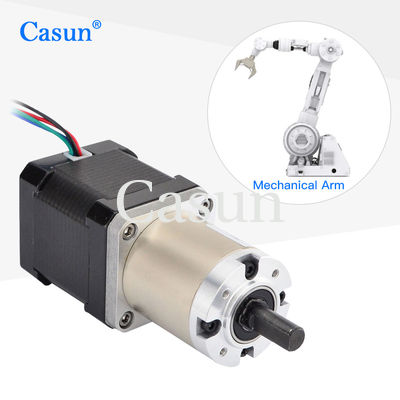

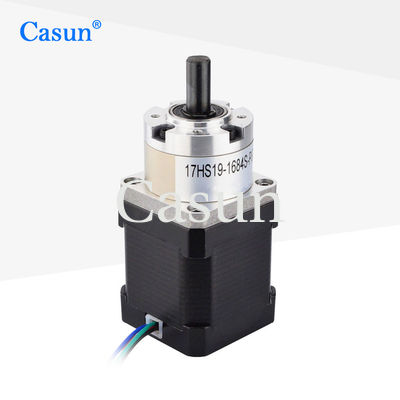

Nema 17 Gear Reducer Stepper Motor, 42x42x48mm, 1.8 Degree 2 Phase, 1.2 N.M. Holding Torque

The 42mm deceleration stepper motor combines the characteristics of stepper motors and reducers, enabling precise positioning control and being suitable for applications that require high-precision positioning.

Open-loop control eliminates the need for position feedback, thereby reducing power consumption.



Features:

  • Bipolar or unipolar versions available

  • We offer custom services and accept contract manufacturing. Wanted dealers! !

  • Available in single or double shaft versions

  • Professional drivetrain solution specialist

  • Customizations on request

Dimensions

Gear Reducer 0.15 A Nema 17 Stepper Motor 1.8 Deg 2 Phase 1.2 N.M Holding Torque 0







Motor Specifications



Step Angel



1.8 °

Fram Size



42 mm

Number of Phase



2 Phase

Rated Current



1.5 A

Holding Torque



1.2 N.m

Resistance



2 ohm

Inductance



2.8 mH

Rotor Inertia



38 g-cm²

Motor weight



0.86 kg

Gear Reduction Ratio





5:1

Connection



Bipolar



Operating Specifications



Motor



Step Angle: 1.8°

Maximum  Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min



Gear Box



Housing Material:Metal
Bearing at Output:Ball Bearings
Max.Radial Load(12mm from flange):≤80N
Max.Shaft Axial Load:≤30N
Radial Play of Shaft (near to Flange):≤0.06mm
Axial Play of Shaft:≤0.3mm
Backlash at No-load:1.5°











Torque Curves







Submodels

Motor Length Length of Gearbox Raio Efficiency
34 mm

40 mm

48 mm

60 mm
27.2 mm 3.71 90%
5.18
35 mm 13.76 80%
19.2
26.8
42.7 mm 51 70%
71
99.5
139


Download





If our standard motor cannot meet your needs,

we can customize the motor according to your needs


Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:
            Encoder          |               Brake           |              Gearbox            |           Shaft

Gear Reducer 0.15 A Nema 17 Stepper Motor 1.8 Deg 2 Phase 1.2 N.M Holding Torque 1 Gear Reducer 0.15 A Nema 17 Stepper Motor 1.8 Deg 2 Phase 1.2 N.M Holding Torque 2 Gear Reducer 0.15 A Nema 17 Stepper Motor 1.8 Deg 2 Phase 1.2 N.M Holding Torque 3 Gear Reducer 0.15 A Nema 17 Stepper Motor 1.8 Deg 2 Phase 1.2 N.M Holding Torque 4





Please click the "Get  a quote" button below to tell us your requirements.
