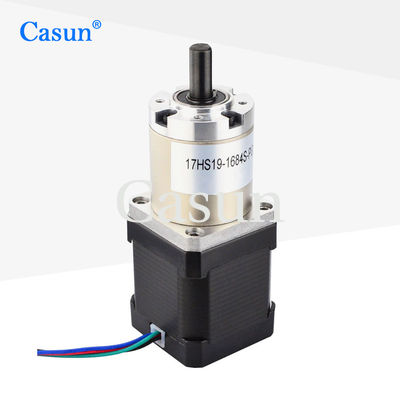

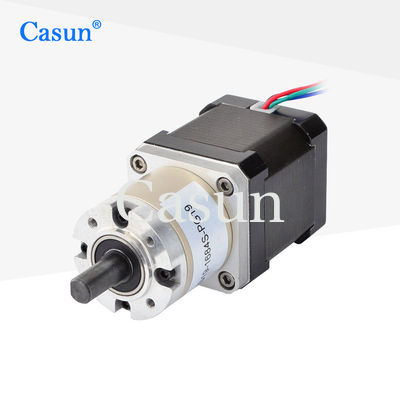

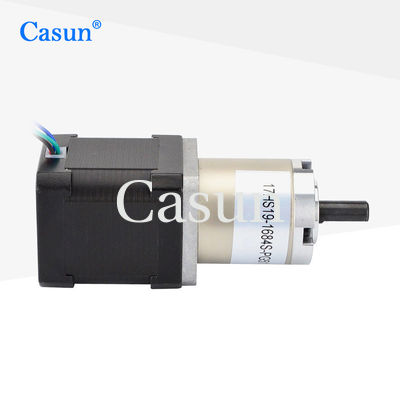

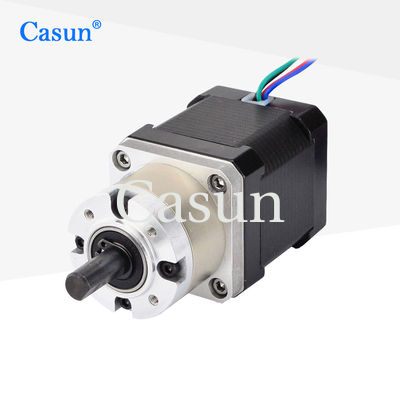

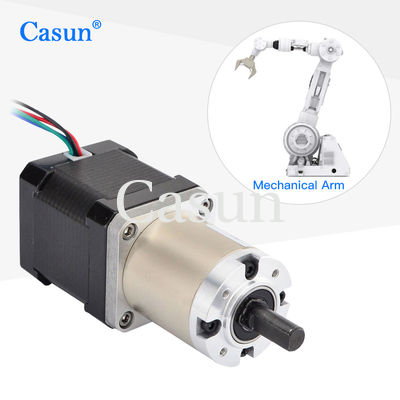

0.4A 12V NEMA 17 Geared Stepper Motor 2 Phase RoHS Approved Stepping Motor

Product Details

Place of Origin: China

Brand Name: Casun

Certification: CE,ROHS,ISO

Model Number: 42SHD4003-5G2H-2

Payment & Shipping Terms

Minimum Order Quantity: 1PC

Price: $18.56-$36.45

Packaging Details: Carton:36x29x14cm

Delivery Time: 7-15 days

Payment Terms: D/A, T/T, L/C, D/P

Supply Ability: 40000+PCS+Month

Get Best Price
Product Details
Highlight:

12V NEMA 17 Geared Stepper Motor

,

0.4A EMA 17 Geared Stepper Motor

Steper Angle:
1.8degree
Phase:
2
Rated Voltage:
12V
Rate Current:
0.4A
Holding Torque:
260mN.m
Detent Torque:
12mN.m
Ratio:
5.18: 1
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Steper Angle:
1.8degree
Phase:
2
Rated Voltage:
12V
Rate Current:
0.4A
Holding Torque:
260mN.m
Detent Torque:
12mN.m
Ratio:
5.18: 1
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Product Description

12V 42*42*34mm NEMA 17 Geared Stepper Motor 2 Phase RoHS Approved Stepping Motor

NEMA 17 Geared Stepper Motor 42x42x34mm ratio 5.18:1 Stepper Motor 2 Phase 12V

42x42x34mm 1.8 Degree 2 Phase Ratio 5.18: 1 Nema 17 Gear Reducer Stepper Motor

The 42mm Hybrid Stepper Motor Series offers powerful holding torque in a variety of sizes.

Use with a microstepping driver to reduce vibration and achieve higher step resolution.

Choose a baseline version or request your own customized configuration.



Features:

  • Bipolar or unipolar versions available

  • Hybrid stepper construction

  • Available in single or double shaft versions

  • CE and RoHS approved

  • Customizations on request

Dimensions

0.4A 12V NEMA 17 Geared Stepper Motor 2 Phase RoHS Approved Stepping Motor 0







Motor Specifications



Step Angel



1.8 °

Fram Size



42 mm

Number of Phase



2 Phase

Rated Current



0.4 A

Holding Torque



260 mN.m

Resistance



30 ohm

Inductance



37 mH

Rotor Inertia



38 g-cm²

Motor weight



0.2 kg

Gear Reduction Ratio





5.18 :1

Connection



Bipolar



Operating Specifications



Motor



Step Angle: 1.8°

Maximum  Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min



Gear Box



Housing Material:Metal
Bearing at Output:Ball Bearings
Max.Radial Load(12mm from flange):≤80N
Max.Shaft Axial Load:≤30N
Radial Play of Shaft (near to Flange):≤0.06mm
Axial Play of Shaft:≤0.3mm
Backlash at No-load:1.5°











Torque Curves







Submodels

Motor Length Length of Gearbox Raio Efficiency
34 mm

40 mm

48 mm

60 mm
27.2 mm 3.71 90%
5.18
35 mm 13.76 80%
19.2
26.8
42.7 mm 51 70%
71
99.5
139


Download





If our standard motor cannot meet your needs,

we can customize the motor according to your needs


Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

FAQ

1. who are we?

We are based in Guangdong, China, start from 2011,sell to Domestic Market(63.00%),Western Europe(12.00%),North America(9.00%),Eastern Asia(8.00%),Northern Europe(2.00%),Eastern Europe(00.00%),Southeast Asia(00.00%),Oceania(00.00%),Mid East(00.00%),Southern Europe(00.00%),South Asia(00.00%). There are total about 51-100 people in our office.



2. how can we guarantee quality?

Always a pre-production sample before mass production;

Always final Inspection before shipment;



3.what can you buy from us?

Stepper Motor,BLDC Motor



4. why should you buy from us not from other suppliers?

We are specialized in producing and selling stepper motors for more than 11 years.



5. what services can we provide?

Accepted Delivery Terms: FOB,CFR,CIF,EXW,Express Delivery;

Accepted Payment Currency:USD,CNY;

Accepted Payment Type: T/T,L/C,D/P D/A,,PayPal;

Language Spoken:English,Chinese,Japanese





Options:
            Encoder          |               Brake           |              Gearbox            |           Shaft

0.4A 12V NEMA 17 Geared Stepper Motor 2 Phase RoHS Approved Stepping Motor 1 0.4A 12V NEMA 17 Geared Stepper Motor 2 Phase RoHS Approved Stepping Motor 2 0.4A 12V NEMA 17 Geared Stepper Motor 2 Phase RoHS Approved Stepping Motor 3 0.4A 12V NEMA 17 Geared Stepper Motor 2 Phase RoHS Approved Stepping Motor 4





Please click the "Get  a quote" button below to tell us your requirements.
