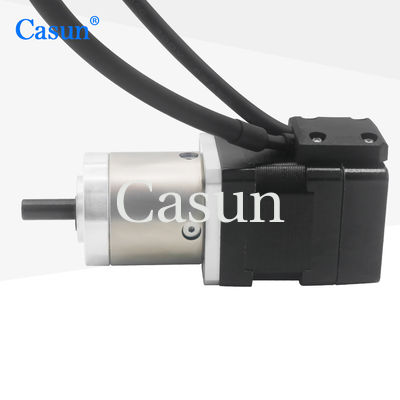

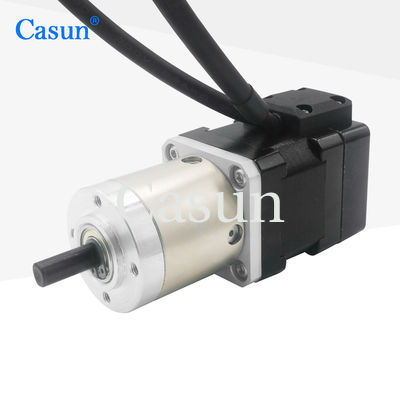

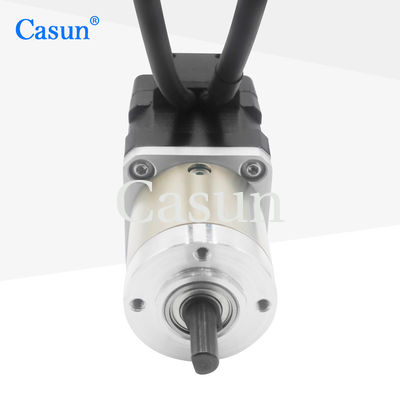

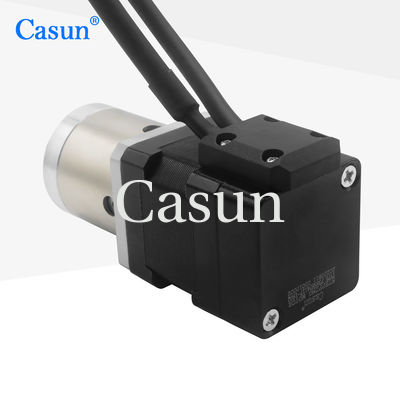

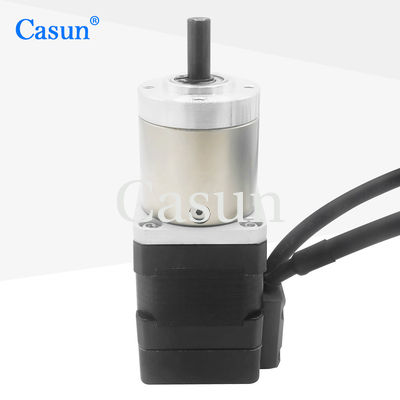

NEMA 14 Gear Box Stepping Motor With Encoder 0.18N.M 1.0A For PLC

NEMA 14 Gear Box Stepping Motor With Encoder 0.18N.M 1.0A For PLC

Brand Name:	Casun
Model Number:	P35SHD4127-19GQ
MOQ:	1PC
Price:	$18.9-$24
Payment Terms:	D/A, T/T, L/C, D/P
Supply Ability:	40000+PCS+Month

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

CE,ROHS,ISO

Gear Ratio:

1:19.2

Holding Torque:

180mN.m

Lead Wire:

4 Wire

Rated Current:

1.0A

Step Angle:

1.8°

Gear Efficiency:

80％

Customized:

The Motor Can Be Designed &manufactured With Customized Request.

Packaging Details:

Carton:38x29x18cm

Highlight:

NEMA 14 Gear Box Stepping Motor

1.0A Gear Box Stepping Motor

Geared Stepper Motor For PLC

Product Description

NEMA 14 Gear Box Stepping Motor With Encoder 0.18N.M 1.0A For PLC

NEMA 14 Gear Box Stepping Motor With Encoder 0.18N.M 1.0A For PLC. Compatible with existing control systems such as PLCs and motion controllers, making integration straightforward. Ideal for small automation systems, water pumps, electric door locks, image scanners, and precision positioning tools.

Features

Bipolar or unipolar versions available
Multiple international certifications for electrical and high-tech devices
Contract-based manufacturing services available
Engineering consultation within 48 hours
Adaptable to various applications

Dimensions

Motor Specifications

Step Angle	1.8°
Frame Size	35 mm
Number of Phase	2 Phase
Rated Current	1.0 A
Holding Torque	180 mN.m
Resistance	3.2 ohm
Inductance	4.5 mH
Rotor Inertia	18 g-cm²
Motor Weight	0.36 kg
Gear Reduction Ratio	19.2:1
Connection	Bipolar

Operating Specifications

Motor

Step Angle	1.8°
Maximum Temperature	80°C maximum
Ambient Temperature	-20°C to 50°C
Storage Temperature	-20°C to 100°C
Humidity Range	85% or less, non-condensing
Magnet Wire Insulation	Class B 130°C
Insulation Resistance	100M Ohm at 500 VDC
Dielectric Strength	500 VDC for 1 min

Gear Box

Housing Material	Metal
Bearing at Output	Ball Bearings
Max. Radial Load (12mm from flange)	≤80N
Max. Shaft Axial Load	≤30N
Radial Play of Shaft (near to Flange)	≤0.06m
Axial Play of Shaft	≤0.3mm
Backlash at No-load	≤1.5°

Submodels

Motor Length	Length of Gearbox	Ratio	Efficiency
26 mm
34 mm
40 mm	29.1 mm	3.71	90%
	36.8 mm	13.76	80%
	44.6 mm	51	70%

Customization Options

If our standard motor cannot meet your needs, we can customize the motor according to your requirements. Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Available Options

Encoder

Brake

Gearbox

Shaft

Please click the "Get a quote" button below to tell us your requirements.
