NEMA 17 42*42*48mm Gearbox Stepper Motor 1.5A Gear Ratio 1:19.2

name

NEMA 17 42*42*48mm Gearbox Stepper Motor 1.5A Gear Ratio 1:19.2

Brand Name: Casun
Model Number: 42SHD0404-19G
MOQ: 1PC
Price: $16.49-$24.14
Payment Terms: D/A, T/T, L/C, D/P
Supply Ability: 40000+PCS+Month
Detail Information
Product Description
Detail Information
Place of Origin:
CHINA
Certification:
CE,ROHS,ISO
Out Torque:
3.2N.m
Length:
48mm
Rated Current:
1.5A
Rated Voltage:
12V
Gear Reduction Ratio:
1：19.2
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Packaging Details:
Carton:36x29x14cm
Highlight:

NEMA 17 Gearbox Stepper Motor

,

12V NEMA 17 Gearbox Stepper Motor

,

1.5A NEMA 17 Gearbox Stepper Motor

Product Description

The 42mm deceleration stepper motor is widely used in various industrial applications, such as automation equipment, precision positioning systems, electronic equipment, etc.

The design of the gearbox can improve the durability and reliability of the motor, and extend its service life.



Features:

  • Bipolar or unipolar versions available

  • We offer customizable services and warmly welcome contract manufacturing

  • We possess expertise in drivetrain solutions

  • Professional drivetrain solution specialist

  • Dealers are actively sought out

Dimensions

NEMA 17 42*42*48mm Gearbox Stepper Motor 1.5A Gear Ratio 1:19.2 0







Motor Specifications



Step Angel



1.8 °

Fram Size



42 mm

Number of Phase



2 Phase

Rated Current



1.5 A

Out Torque (ref)



4.1N.m (at10RPM)

Resistance



1.65 hm

Inductance



2.8 mH

Rotor Inertia



38 g-cm²

Motor weight



0.85 kg

Gear Reduction Ratio



1:19.2

Connection



Bipolar



Operating Specifications



Motor



Step Angle: 1.8°

Maximum  Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min



Gear Box



Housing Material:Metal
Bearing at Output:Ball Bearings
Max.Radial Load(12mm from flange):≤80N
Max.Shaft Axial Load:≤30N
Radial Play of Shaft (near to Flange):≤0.06mm
Axial Play of Shaft:≤0.3mm
Backlash at No-load:1.5°











Torque Curves







Submodels

Motor Length Length of Gearbox Raio Efficiency
34 mm

40 mm

48 mm

60 mm		 27.2 mm 3.71 90%
5.18
35 mm 13.76 80%
19.2
26.8
42.7 mm 51 70%
71
99.5
139


Download





If our standard motor cannot meet your needs,

we can customize the motor according to your needs


Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:
            Encoder          |               Brake           |              Gearbox            |           Shaft

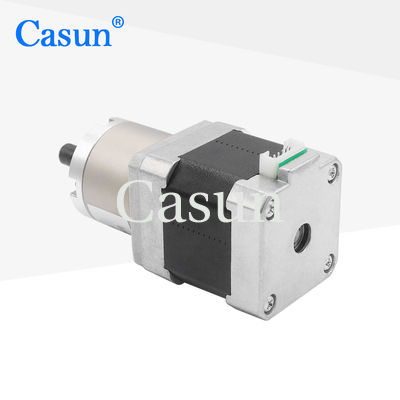

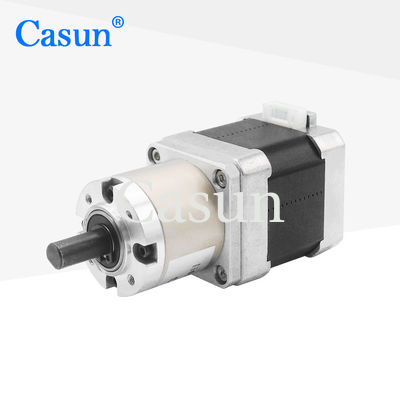

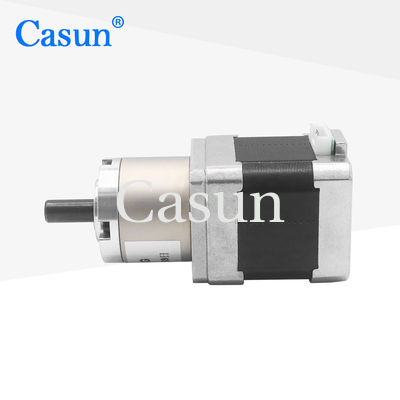

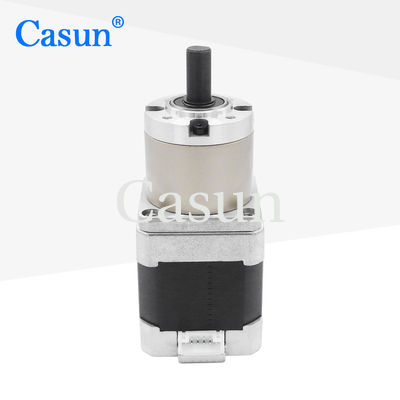

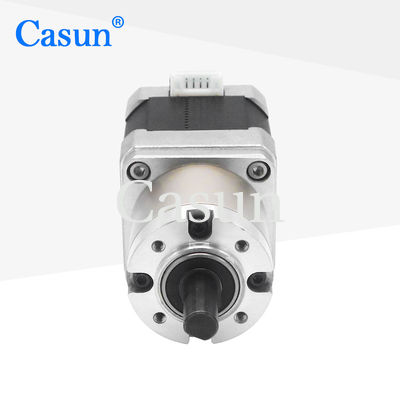

NEMA 17 42*42*48mm Gearbox Stepper Motor 1.5A Gear Ratio 1:19.2 1 NEMA 17 42*42*48mm Gearbox Stepper Motor 1.5A Gear Ratio 1:19.2 2 NEMA 17 42*42*48mm Gearbox Stepper Motor 1.5A Gear Ratio 1:19.2 3 NEMA 17 42*42*48mm Gearbox Stepper Motor 1.5A Gear Ratio 1:19.2 4
