32mm Stroke Length Casun SM0804 Micro Linear Guide for Medical Device and Scanner

Name: 32mm Stroke Length Casun SM0804 Micro Linear Guide for Medical Device and Scanner
Brand: GUANGZHOU FUDE ELECTRONIC TECHNOLOGY CO.,LTD
SKU: SM0804
Price: 5.60 USD
Availability: InStock

Brand Name:	Casun
Model Number:	SM0804
MOQ:	1PC
Price:	$2.6-$9
Payment Terms:	D/A, T/T, L/C, D/P
Supply Ability:	40000+PCS+Month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE,ROSH,ISO

Step Angel:

18°

Phase:

Pull Out:

500pps

Voltage:

5V DC

Stroke Length:

32mm

Pitch:

0.25*2N

Customized:

The Motor Can Be Designed &manufactured With Customized Request.

Packaging Details:

Carton:36x29x14cm

Highlight:

32mm Stroke Length Micro Linear Guide

Scanner Micro Linear Guide

Medical Device Micro Linear Guide

Product Description

SM08 Series Linear Stepper Motors

Main applications: scanners, printing, medical equipment, automotive instrumentation, flash lights, security systems, fibre optic welding equipment

Ambient temperature: 0°- 55°
Insulation Resistance: 100VDC 1MΩMIN
Insulation Class: CLASS E
Maximum Continuous Response Frequency: -
Maximum Self-start Frequency: 1200PPS

Features:

Bipolar models available
Suitable for high-tech industrial and automated electronics
Customisable service available
Our engineers will contact you within 48 hours to provide the best solution.
Professional research and development manufacturing

Motor Specifications

Step angel	18°
Phase	2
Voltage	5VDC
Current	0.3A
Resistance	16.3Ω
Pull-out	500pps
Model	SM0804

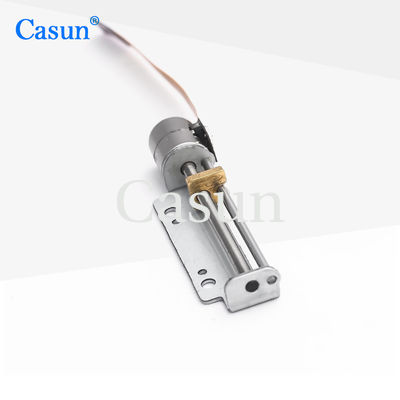

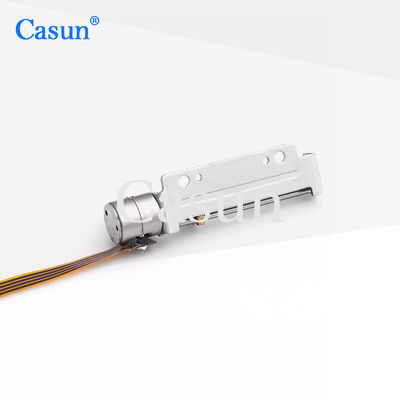

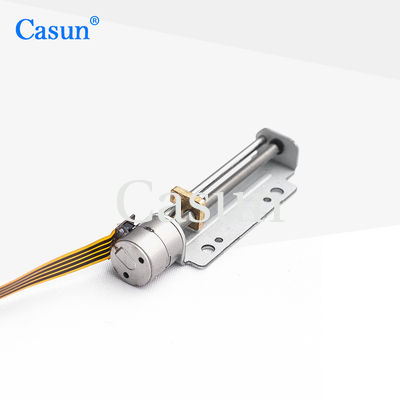

Appearance

32mm Stroke Length Casun SM0804 Micro Linear Guide for Medical Device and Scanner 0

Dimensions

32mm Stroke Length Casun SM0804 Micro Linear Guide for Medical Device and Scanner 1

Torque Curves

Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs

Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:

Encoder	Brake	Gearbox	Shaft

Please click the "Get a quote" button below to tell us your requirements.
