Casun Micro Linear Stepper Motor SM1504 0.8A For Medical Equipment And Scanner With CE ISO ROHS

Name: Casun Micro Linear Stepper Motor SM1504 0.8A For Medical Equipment And Scanner With CE ISO ROHS
Brand: GUANGZHOU FUDE ELECTRONIC TECHNOLOGY CO.,LTD
SKU: SM1504
Price: 5.60 USD
Availability: InStock

Brand Name:	Casun
Model Number:	SM1504
MOQ:	1PC
Price:	$2.6-$9
Payment Terms:	D/A, T/T, L/C, D/P
Supply Ability:	40000+PCS+Month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE,ROSH,ISO

Step Angel:

18°

Phase:

Pull Out:

1250pps

Voltage:

12V DC

Stroke Length:

90mm

Pitch:

M3*0.5P

Customized:

The Motor Can Be Designed &manufactured With Customized Request.

Packaging Details:

Carton:36x29x14cm

Highlight:

Scanner micro linear stepper motor

CE micro linear stepper motor

Medical equipment micro linear stepper motor

Product Description

SM1504 Series Linear Stepper Motors

Main applications: scanners, printing, medical equipment, automotive instrumentation, flash lights, security systems, fibre optic welding equipment

Ambient temperature: 0°- 55°
Insulation Resistance: 500VDC 1MΩMIN
Insulation Class: CLASS E
Maximum Continuous Response Frequency: -
Maximum Self-start Frequency: 1100PPS

Features:

Bipolar models available
Suitable for high-tech industrial and automated electronics
Customisable service available
Our engineers will contact you within 48 hours to provide the best solution.
Professional research and development manufacturing

Motor Specifications

Step angel	18°
Phase	2
Voltage	12VDC
Current	0.8A
Resistance	15Ω
Pull-out	1250pps
Model	SM1504

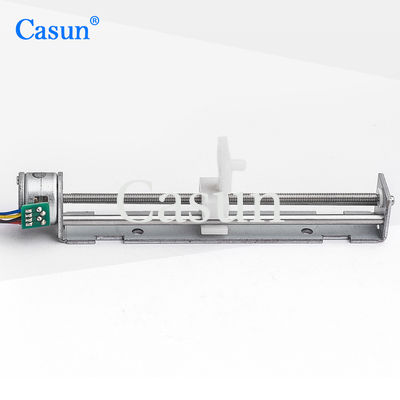

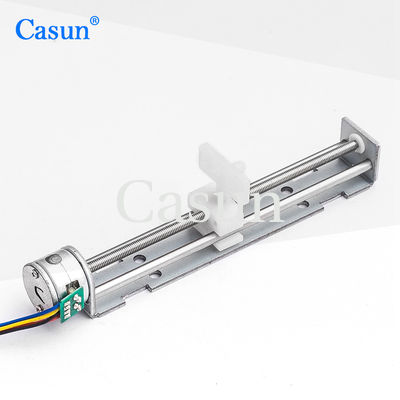

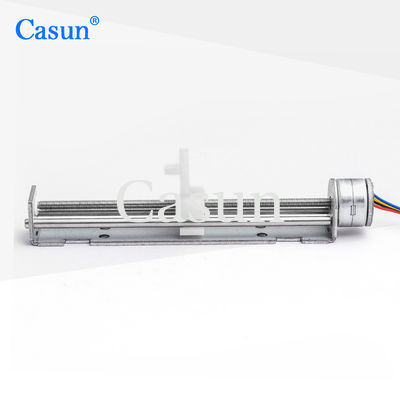

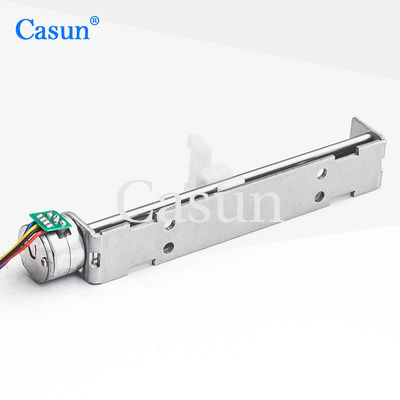

Appearance

Casun Micro Linear Stepper Motor SM1504 0.8A For Medical Equipment And Scanner With CE ISO ROHS 0

Dimensions

Casun Micro Linear Stepper Motor SM1504 0.8A For Medical Equipment And Scanner With CE ISO ROHS 1

Torque Curves

Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs

Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:

Encoder	Brake	Gearbox	Shaft

Please click the "Get a quote" button below to tell us your requirements.
