2 Phase 0.27A Micro Stepper Motor SM1063 For Automotive Instrumentation Casun Motors

Name: 2 Phase 0.27A Micro Stepper Motor SM1063 For Automotive Instrumentation Casun Motors
Brand: GUANGZHOU FUDE ELECTRONIC TECHNOLOGY CO.,LTD
SKU: SM1063
Price: 4.60 USD
Availability: InStock

Brand Name:	Casun
Model Number:	SM1063
MOQ:	1PC
Price:	$2.6-$8
Payment Terms:	D/A, T/T, L/C, D/P
Supply Ability:	40000+PCS+Month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE,ROSH,ISO

Step Angel:

18°

Phase:

Pull Out:

1250pps

Voltage:

5V DC

Stroke Length:

56.5mm

Pitch:

1.25mm

Customized:

The Motor Can Be Designed &manufactured With Customized Request.

Packaging Details:

Carton:36x29x14cm

Highlight:

Casun micro stepper motor

2 Phase micro stepper motor

0.27A micro stepper motor

Product Description

SM1063 Series Linear Stepper Motors

Main applications: scanners, printing, medical equipment, automotive instrumentation, flash lights, security systems,

Ambient temperature: -10°- 55°
Insulation Resistance: 500VDC 100MΩMIN
Insulation Class: CLASS E
Maximum Continuous Response Frequency: 1500pps
Maximum Self-start Frequency: 1000PPS

Features:

Bipolar models available
Suitable for high-tech industrial and automated electronics
Customisable service available
Our engineers will contact you within 48 hours to provide the best solution.
Professional research and development manufacturing

Motor Specifications

Step angel	18°
Phase	2
Voltage	5VDC
Current	0.27A
Resistance	18Ω
Pull-out	500pps
Model	SM1063

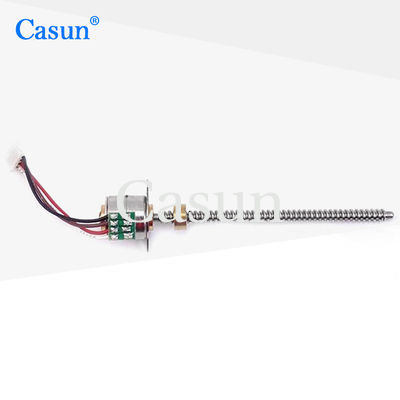

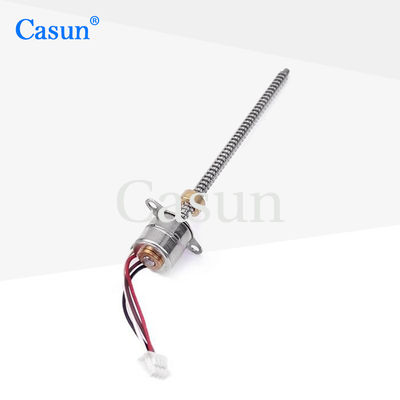

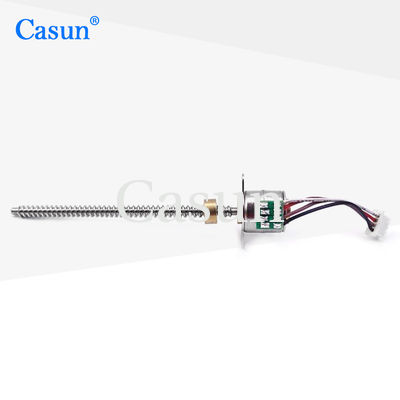

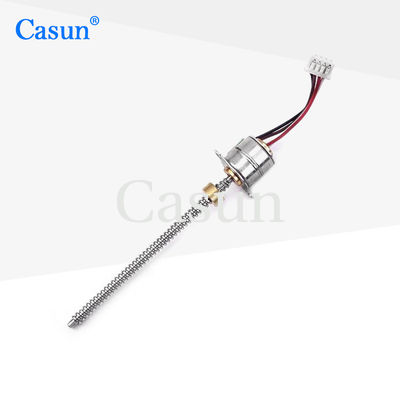

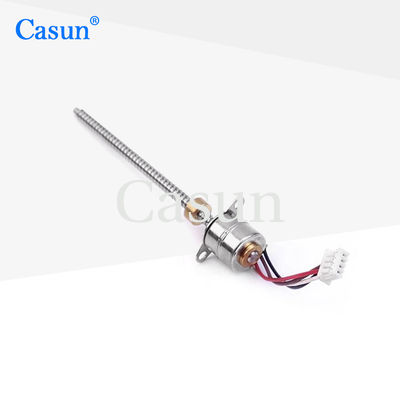

Appearance

2 Phase 0.27A Micro Stepper Motor SM1063 For Automotive Instrumentation Casun Motors 0

Dimensions

2 Phase 0.27A Micro Stepper Motor SM1063 For Automotive Instrumentation Casun Motors 1

Torque Curves

Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs

Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:

Encoder	Brake	Gearbox	Shaft

Please click the "Get a quote" button below to tell us your requirements.
