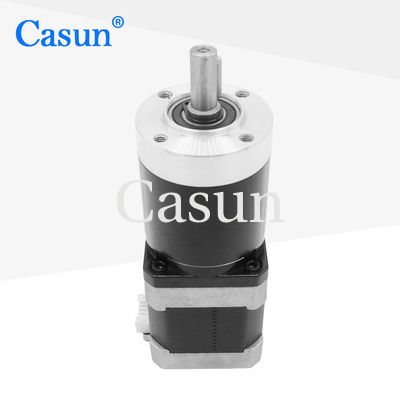

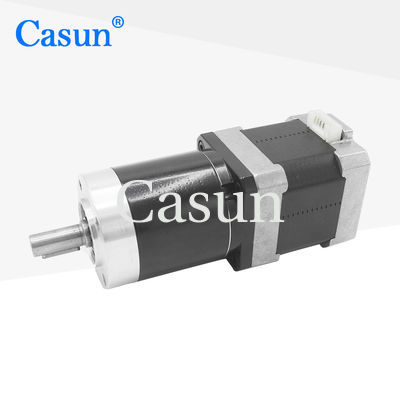

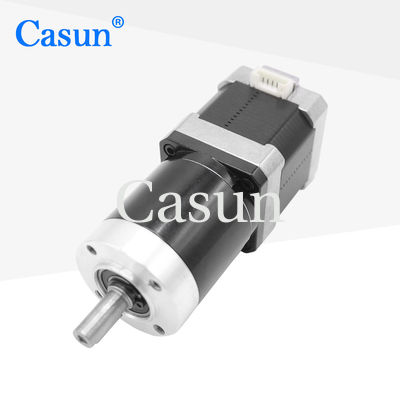

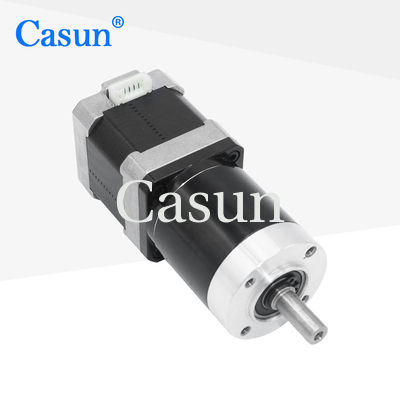

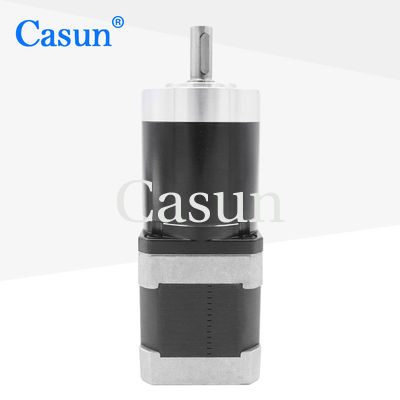

NEMA17 Ratio 40/1 Planetary Gearbox Stepper Motor 1.5A For Robot Arm 3d Printer

NEMA17 Ratio 40/1 Planetary Gearbox Stepper Motor 1.5A For Robot Arm 3d Printer

Brand Name:	Casun
Model Number:	42SHD0404-40G
MOQ:	1PC
Price:	$31.46.3-$34.46
Payment Terms:	D/A, T/T, L/C, D/P
Supply Ability:	40000+PCS+Month

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

CE,ROHS,ISO

Motor Length:

46.8mm

Customized:

The Motor Can Be Designed &manufactured With Customized Request.

Gear Redution Ratio:

1：40

Rated Current:

1.5A

Packaging Details:

Carton:36x29x14cm

Highlight:

robot arm Planetary Gearbox Stepper Motor

3d printer Planetary Gearbox Stepper Motor

1.5A Planetary Gearbox Stepper Motor

Product Description

Due to the function of the reducer, the deceleration stepper motor can provide smoother motion.

It can operate smoothly within a wide speed range, thus meeting the speed requirements of different application scenarios.

Features:

Bipolar or unipolar versions available
Our high-tech and electronic industry equipment boast multiple international certifications
Available in single or double shaft versions
Our engineers will contact you within 48 hours to offer the optimal solution
Customizations on request

Dimensions

Motor Specifications

Step Angel	1.8 °
Fram Size	42 mm
Number of Phase	2 Phase
Rated Current	1.5 A
Holding Torque	6.0N.m
Resistance	2.0om
Inductance	2.8 mH
Rotor Inertia	72 g-cm²
Motor weight	0.95kg
Gear Reduction Ratio	40:1
Connection	Bipolar

Operating Specifications

Motor

Step Angle: 1.8°

Maximum Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min

Gear Box

Housing Material:Metal
Bearing at Output:Ball Bearings
Max.Radial Load(12mm from flange):≤80N
Max.Shaft Axial Load:≤30N
Radial Play of Shaft (near to Flange):≤0.06mm
Axial Play of Shaft:≤0.3mm
Backlash at No-load:1.5°

Torque Curves

Submodels

Motor Length	Length of Gearbox	Raio	Efficiency
34 mm 40 mm 48 mm 60 mm	27.2 mm	3.71	90%
		5.18
	35 mm	13.76	80%
		19.2
		26.8
	42.7 mm	51	70%
		71
		99.5
		139

Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs

Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:
Encoder | Brake | Gearbox | Shaft

NEMA17 Ratio 40/1 Planetary Gearbox Stepper Motor 1.5A For Robot Arm 3d Printer 1

Please click the "Get a quote" button below to tell us your requirements.
