Home > products > Geared Stepper Motor > Reduction Ratio NEMA 8 Geared Stepper Motor 0.2A 14mN.m for Industrial automation field

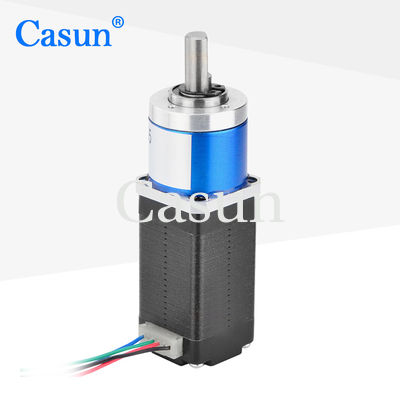

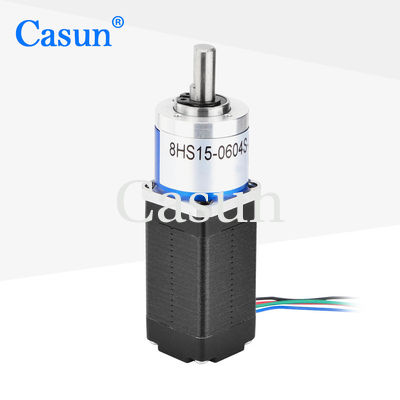

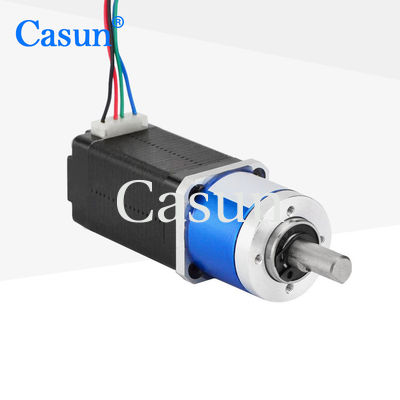

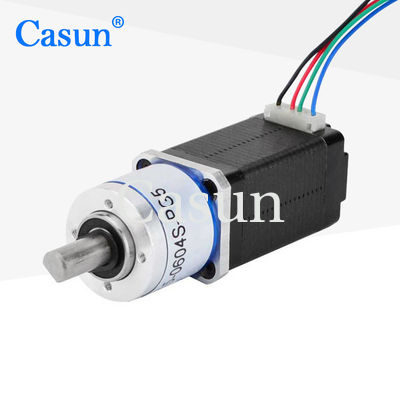

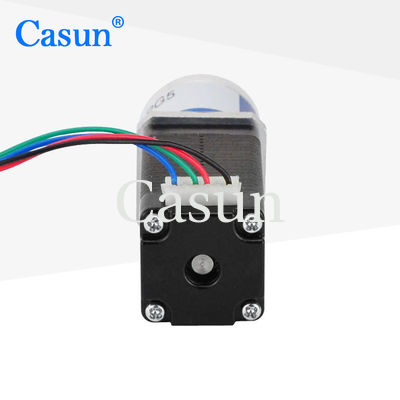

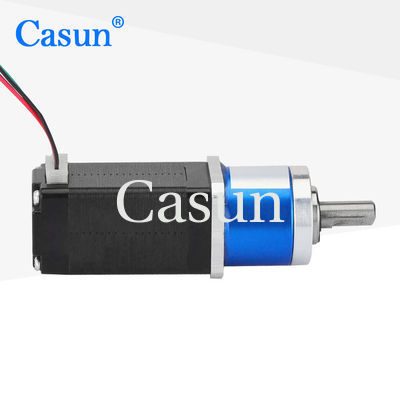

Reduction Ratio NEMA 8 Geared Stepper Motor 0.2A 14mN.m for Industrial automation field

Product Details

Place of Origin: CHINA

Brand Name: Casun

Certification: CE,ROHS,ISO

Model Number: 20SHD4303-5G-2

Payment & Shipping Terms

Minimum Order Quantity: 1PC

Price: $23.8-$26.9

Packaging Details: Carton:36x29x14cm

Delivery Time: 7-15 days

Payment Terms: D/A, T/T, L/C, D/P

Supply Ability: 40000+PCS+Month

Get Best Price
Product Details
Highlight:
Current / Phase:
0.2Amp
Product Name:
Stepper Motor With Geared
Motor Length:
28mm
Holding Torque:
14mN.m
Gear Redution Ratio:
4.75:1
Current / Phase:
0.2Amp
Product Name:
Stepper Motor With Geared
Motor Length:
28mm
Holding Torque:
14mN.m
Gear Redution Ratio:
4.75:1
Product Description

The deceleration stepper motor has high holding force in a stationary state and can maintain a stable position.

The deceleration stepper motor provides more options to meet the needs of different application scenarios.



Features:

  • Bipolar or unipolar versions available

  • Hybrid stepper construction

  • With 12 years of experience in China, we have served over 800 satisfied customers

  • Enjoy a ten-year warranty and buy with confidence

  • Customizations on request

Dimensions

Reduction Ratio NEMA 8 Geared Stepper Motor 0.2A 14mN.m for Industrial automation field 0







Motor Specifications



Step Angel



1.8 °

Fram Size



20mm

Number of Phase



2 Phase

Rated Current



0.2 Amp

Holding Torque



14 mN.m

Resistance



22om

Inductance



6.0mH

Rotor Inertia



2g-cm²

Motor weight



0.1kg

Gear Reduction Ratio



4.75:1

Connection



Bipolar



Operating Specifications



Motor



Step Angle: 1.8°

Maximum  Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min



Gear Box



Housing Material:Metal
Bearing at Output:Ball Bearings
Max.Radial Load(12mm from flange):≤80N
Max.Shaft Axial Load:≤30N
Radial Play of Shaft (near to Flange):≤0.06mm
Axial Play of Shaft:≤0.3mm
Backlash at No-load:1.5°











Torque Curves







Submodels

Motor Length Length of Gearbox Raio Efficiency
34 mm

40 mm

48 mm

60 mm
27.2 mm 3.71 90%
5.18
35 mm 13.76 80%
19.2
26.8
42.7 mm 51 70%
71
99.5
139
