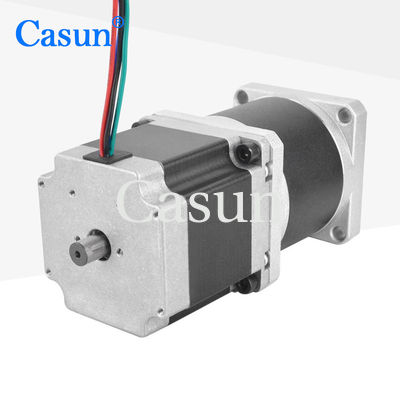

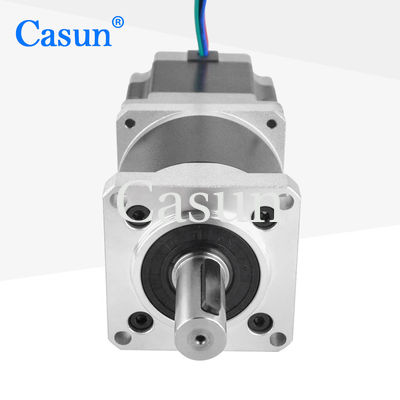

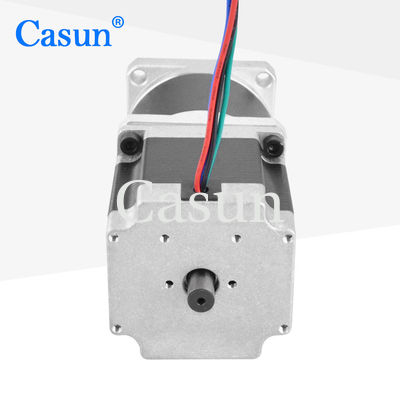

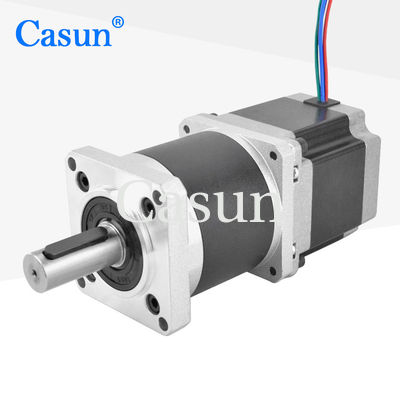

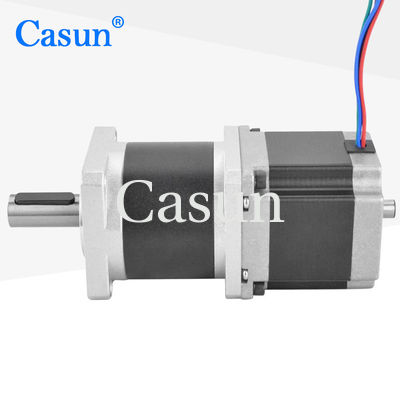

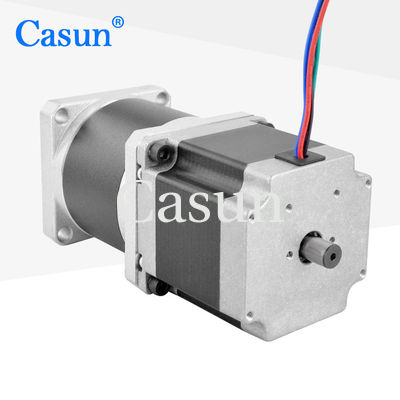

57*57*54mm NEMA 23 Planetary Gear Stepping Motor Dual Shaft 50/1 For Extrusion Machine

name

57*57*54mm NEMA 23 Planetary Gear Stepping Motor Dual Shaft 50/1 For Extrusion Machine

Brand Name: Casun
Model Number: 57SHD4425-50PLSH
MOQ: 1PC
Price: $26.46-$29.46
Payment Terms: D/A, T/T, L/C, D/P
Supply Ability: 40000+PCS+Month
Detail Information
Product Description
Detail Information
Place of Origin:
CHINA
Certification:
CE,ROHS,ISO
Key Words:
Geared Stepper Motor
Torque Force:
1.02N.m
Step Angle(degrees):
1.8 Degree
Ratio:
50:1
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Packaging Details:
Carton:36x29x14cm
Highlight:

NEMA 23 Planetary Gear Stepping Motor

,

Dual Shaft Planetary Gear Stepping Motor

Product Description

The reducer reduces the output speed of the motor through mechanisms such as gears or worm gears, while proportionally increasing the output torque.

The deceleration stepper motor has a simple structure, relatively easy maintenance and upkeep, and high reliability.



Features:

  • Bipolar or unipolar versions available

  • Delivering high torque and accuracy

  • Available in single or double shaft versions

  • Specialist in professional drivetrain solutions

  • Supply various international accreditations for the tech and electronics sectors

Dimensions

57*57*54mm NEMA 23 Planetary Gear Stepping Motor Dual Shaft 50/1 For Extrusion Machine 0







Motor Specifications

Step Angel



1.8 °

Fram Size



57mm

Number of Phase



2 Phase

Rated Current



2.8Amp

Holding Torque



1020 mN.m

Resistance



0.9 0hm

Inductance



2.5 mH

Rotor Inertia



260g-cm²

Motor weight



-kg

Gear Reduction Ratio



50:1

Connection



Bipolar



Operating Specifications



Motor



Step Angle: 1.8°

Maximum  Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min



Gear Box



Housing Material:Metal
Bearing at Output:Ball Bearings
Max.Radial Load(12mm from flange):≤80N
Max.Shaft Axial Load:≤30N
Radial Play of Shaft (near to Flange):≤0.06mm
Axial Play of Shaft:≤0.3mm
Backlash at No-load:1.5°











Torque Curves







Submodels

Motor Length Length of Gearbox Raio Efficiency
34 mm

40 mm

48 mm

60 mm		 27.2 mm 3.71 90%
5.18
35 mm 13.76 80%
19.2
26.8
42.7 mm 51 70%
71
99.5
139


Download





If our standard motor cannot meet your needs,

we can customize the motor according to your needs


Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:
            Encoder          |               Brake           |              Gearbox            |           Shaft

57*57*54mm NEMA 23 Planetary Gear Stepping Motor Dual Shaft 50/1 For Extrusion Machine 1 57*57*54mm NEMA 23 Planetary Gear Stepping Motor Dual Shaft 50/1 For Extrusion Machine 2 57*57*54mm NEMA 23 Planetary Gear Stepping Motor Dual Shaft 50/1 For Extrusion Machine 3 57*57*54mm NEMA 23 Planetary Gear Stepping Motor Dual Shaft 50/1 For Extrusion Machine 4





Please click the "Get  a quote" button below to tell us your requirements.
