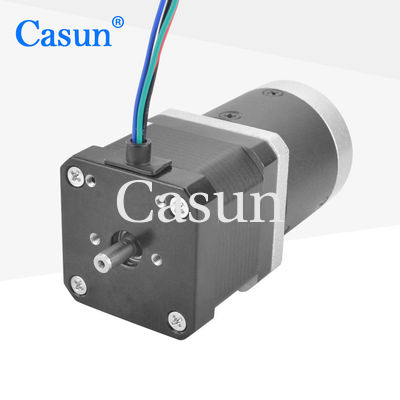

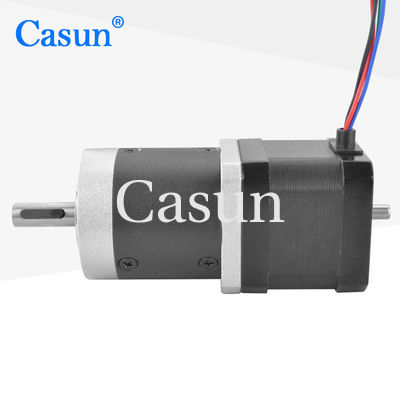

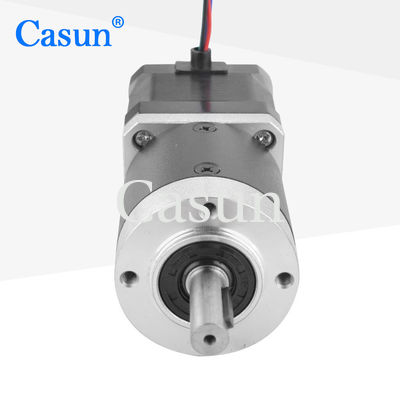

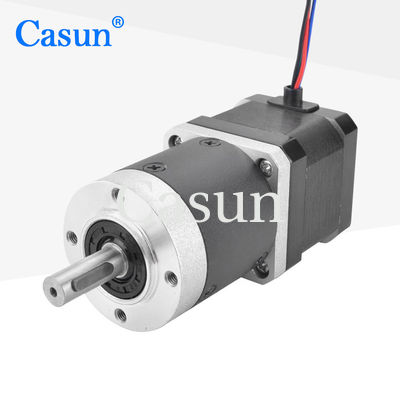

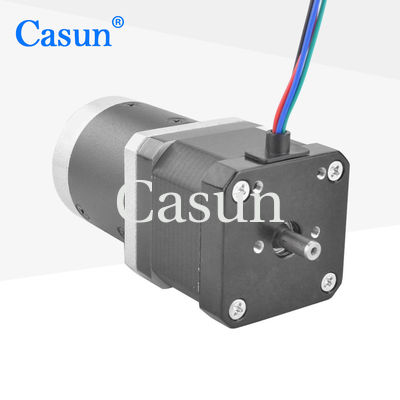

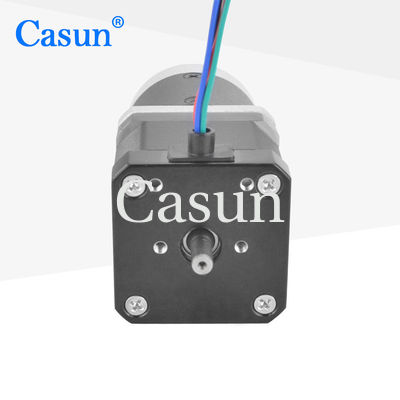

NEMA 17 Ratio 50/1 Planetary Gear Reducer Geared Stepper Motor For Intelligent Vehicle

NEMA 17 Ratio 50/1 Planetary Gear Reducer Geared Stepper Motor For Intelligent Vehicle

Brand Name:	Casun
Model Number:	42SHD4229-50PLSH
MOQ:	1PC
Price:	$24-$27
Payment Terms:	D/A, T/T, L/C, D/P
Supply Ability:	40000+PCS+Month

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

CE,ROHS,ISO

Key Words:

Geared Stepper Motor

Voltage:

2.8V DC

Weight:

0.9KG

Step Angle(degrees):

1.8 Degree

Ratio:

50:1

Customized:

The Motor Can Be Designed &manufactured With Customized Request.

Packaging Details:

Carton:36x29x14cm

Highlight:

Intelligent Vehicle Geared Stepper Motor

Planetary Gear Reducer Geared Stepper Motor

NEMA 17 Geared Stepper Motor

Product Description

Deceleration stepper motors have high reliability due to their relatively simple mechanical structure and low maintenance costs.

The reducer can effectively absorb the vibration and impact generated during the operation of the stepper motor.

Features:

Bipolar or unipolar versions available
Each model of stepper motor is suitable for various applications
Available in single or double shaft versions
We offer personalized services and accept manufacturing contracts
Customizations on request

Dimensions

Motor Specifications

Step Angel	1.8 °
Fram Size	42mm
Number of Phase	2 Phase
Rated Current	1.68Amp
Holding Torque	390mN.m
Resistance	1.65 ohm
Inductance	3.2 mH
Rotor Inertia	57g-cm²
Motor weight	0.9kg
Gear Reduction Ratio	50:1
Connection	Bipolar

Operating Specifications

Motor

Step Angle: 1.8°

Maximum Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min

Gear Box

Housing Material:Metal
Bearing at Output:Ball Bearings
Max.Radial Load(12mm from flange):≤80N
Max.Shaft Axial Load:≤30N
Radial Play of Shaft (near to Flange):≤0.06mm
Axial Play of Shaft:≤0.3mm
Backlash at No-load:1.5°

Torque Curves

Submodels

Motor Length	Length of Gearbox	Raio	Efficiency
34 mm 40 mm 48 mm 60 mm	27.2 mm	3.71	90%
		5.18
	35 mm	13.76	80%
		19.2
		26.8
	42.7 mm	51	70%
		71
		99.5
		139

Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs

Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:
Encoder | Brake | Gearbox | Shaft

NEMA 17 Ratio 50/1 Planetary Gear Reducer Geared Stepper Motor For Intelligent Vehicle 1

Please click the "Get a quote" button below to tell us your requirements.
