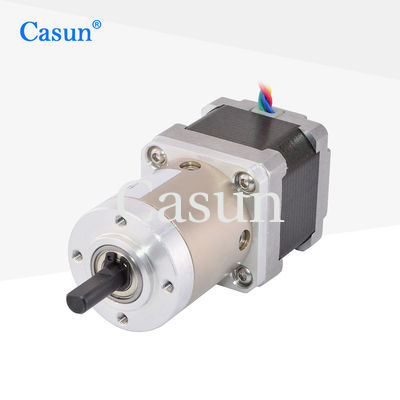

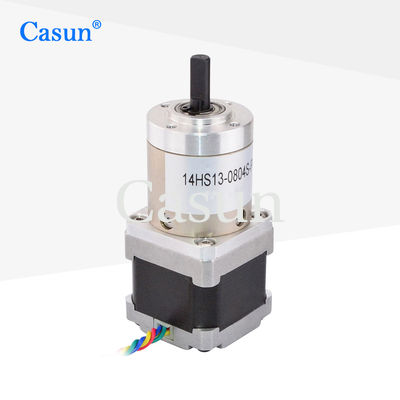

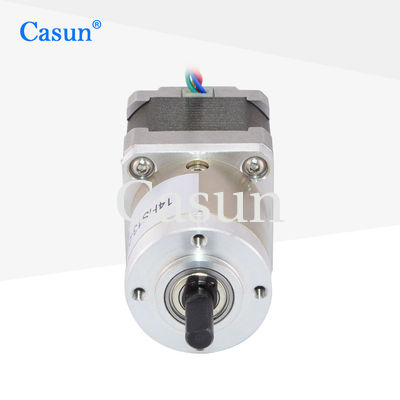

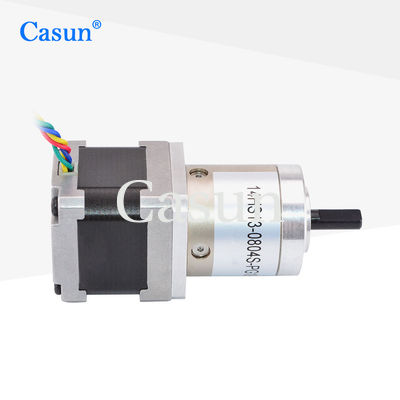

NEMA 14 Double Shaft Stepper Motor With Gearbox 19/1 35*35*28mm

name

NEMA 14 Double Shaft Stepper Motor With Gearbox 19/1 35*35*28mm

Brand Name: Casun
Model Number: 14HS13-0804S-PG19
MOQ: 1PC
Price: $18.9-$24
Payment Terms: D/A, T/T, L/C, D/P
Supply Ability: 40000+PCS+Month
Detail Information
Product Description
Detail Information
Place of Origin:
CHINA
Certification:
CE,ROHS,ISO
Gear Ratio:
1:19.2
Holding Torque:
180mN.m
Lead Wire:
4 Wire
Rated Current:
1.0A
Step Angle:
1.8°
Weight:
0.36kg
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Packaging Details:
Carton:38x29x18cm
Highlight:

Double Shaft NEMA 14 Stepper Motor

,

Customizable NEMA 14 Stepper Motor

,

1.0A NEMA 14 Stepper Motor

Product Description

The deceleration stepper motor can move at a fixed step angle to achieve precise positioning control.

The deceleration stepper motor can provide smooth acceleration and deceleration characteristics during start and stop, avoiding instantaneous impact forces and protecting the mechanical structure and load.



Features:

  • Bipolar or unipolar versions available

  • Contract manufacturing acceptance

  • Available in single or double shaft versions

  • Within 48 hours, one of our engineers will contact you with the best option.

  • We have a proven track record of success, serving over 800 customers in China for the past 12 years

Dimensions

NEMA 14 Double Shaft Stepper Motor With Gearbox 19/1 35*35*28mm 0







Motor Specifications



Step Angel



1.8 °

Fram Size



35 mm

Number of Phase



2 Phase

Rated Current



1.0 A

Holding Torque



180 mN.m

Resistance



6.8 hm

Inductance



10 mH

Rotor Inertia



180 g-cm²

Motor weight



0.4 kg

Gear Reduction Ratio





19.2:1

Connection



Bipolar



Operating Specifications



Motor



Step Angle: 1.8°

Maximum  Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min



Gear Box




Housing Material:Metal

Bearing at Output:Ball Bearings

Max.Radial Load(12mm from flange):≤80N

Max.Shaft Axial Load:≤30N

Radial Play of Shaft (near to Flange):≤0.06m

Axial Play of Shaft:≤0.3mm

Backlash at No-load:≤1.5°













Torque Curves









Submodels

Motor Length Length of Gearbox Raio Efficiency
26 mm

34 mm

40 mm		 29.1 mm 3.71 90%
5.18
36.8 mm 13.76 80%
19.2
26.8
44.6 mm 51 70%
71
99.5
139

Download



If our standard motor cannot meet your needs,

we can customize the motor according to your needs


Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:
            Encoder          |               Brake           |              Gearbox            |           Shaft

NEMA 14 Double Shaft Stepper Motor With Gearbox 19/1 35*35*28mm 1 NEMA 14 Double Shaft Stepper Motor With Gearbox 19/1 35*35*28mm 2 NEMA 14 Double Shaft Stepper Motor With Gearbox 19/1 35*35*28mm 3 NEMA 14 Double Shaft Stepper Motor With Gearbox 19/1 35*35*28mm 4
