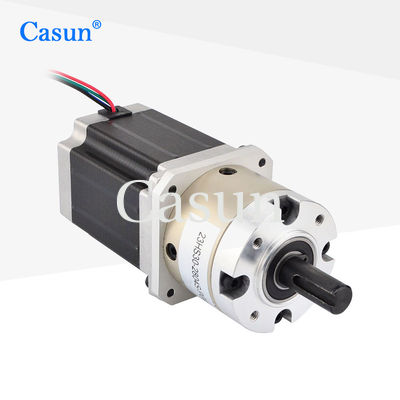

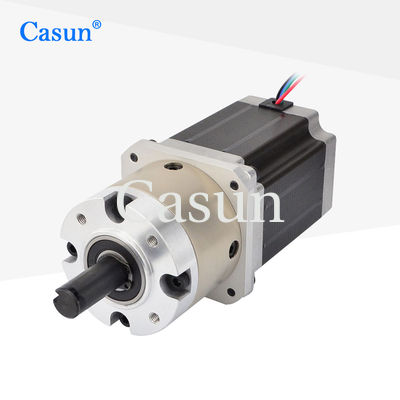

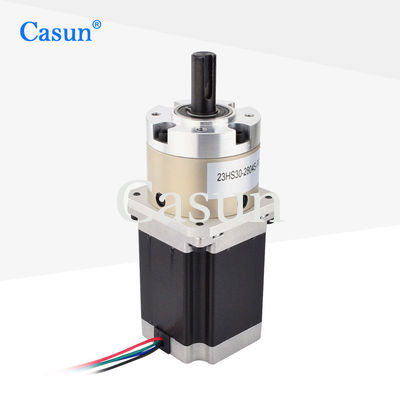

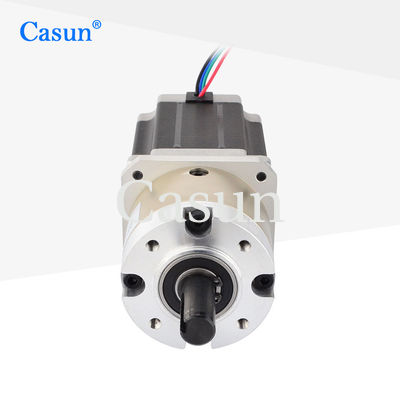

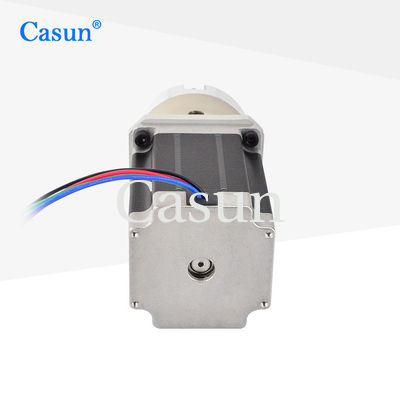

NEMA 23 Planetary Gearbox Stepper Motor Gear Reduction Ratio 4/1 For Automation Home Appliance Medical Appliance

NEMA 23 Planetary Gearbox Stepper Motor Gear Reduction Ratio 4/1 For Automation Home Appliance Medical Appliance

Brand Name:	Casun
Model Number:	23HS30-2804S-PG4
MOQ:	1PC
Price:	$27.38.38-$30.38
Payment Terms:	D/A, T/T, L/C, D/P
Supply Ability:	40000+PCS+Month

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

CE,ROHS,ISO

Current / Phase:

2.8Amp

Product Name:

Stepper Motor With Geared

Motor Length:

76mm

Customized:

The Motor Can Be Designed &manufactured With Customized Request.

Packaging Details:

Carton:36x29x14cm

Highlight:

NEMA 23 Planetary Gearbox Stepper Motor

Medical Appliance Planetary Gearbox Stepper Motor

Automation Planetary Gearbox Stepper Motor

Product Description

The integrated design of motor and reducer saves space, reduces external transmission components, and facilitates installation and maintenance.

It has a wide range of applications in various fields, such as CNC machine tools, robots, automation equipment, precision instruments, etc.

Features:

Bipolar or unipolar versions available
Providing tailored solutions and open to OEM collaborations. Seeking distributors!
Available in single or double shaft versions
CE and RoHS approved
We offer high-torque, high-precision solutions

Dimensions

Motor Specifications

Step Angel	1.8 °
Fram Size	57mm
Number of Phase	2 Phase
Rated Current	2.8Amp
Holding Torque	1.89N.m
Resistance	1.13om
Inductance	5.6mH
Rotor Inertia	460g-cm²
Motor weight	1.4kg
Gear Reduction Ratio	4.25:1
Connection	Bipolar

Operating Specifications

Motor

Step Angle: 1.8°

Maximum Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min

Gear Box

Housing Material:Metal
Bearing at Output:Ball Bearings
Max.Radial Load(12mm from flange):≤80N
Max.Shaft Axial Load:≤30N
Radial Play of Shaft (near to Flange):≤0.06mm
Axial Play of Shaft:≤0.3mm
Backlash at No-load:1.5°

Torque Curves

Submodels

Motor Length	Length of Gearbox	Raio	Efficiency
34 mm 40 mm 48 mm 60 mm	27.2 mm	3.71	90%
		5.18
	35 mm	13.76	80%
		19.2
		26.8
	42.7 mm	51	70%
		71
		99.5
		139

Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs

Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:
Encoder | Brake | Gearbox | Shaft

NEMA 23 Planetary Gearbox Stepper Motor Gear Reduction Ratio 4/1 For Automation Home Appliance Medical Appliance 1

Please click the "Get a quote" button below to tell us your requirements.
