NEMA 23 Ratio 4/1 Planetary Gearbox Stepper Motor With Gearbox with CE ISO

name

NEMA 23 Ratio 4/1 Planetary Gearbox Stepper Motor With Gearbox with CE ISO

Brand Name: Casun
Model Number: 23HS22-2804S-PG4
MOQ: 1PC
Price: $22.49-$27
Payment Terms: D/A, T/T, L/C, D/P
Supply Ability: 40000+PCS+Month
Detail Information
Product Description
Detail Information
Place of Origin:
CHINA
Certification:
CE,ROSH,ISO
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Body:
54mm
Holding Torque:
1.25N.m
Rated Current:
2.8A
Packaging Details:
Carton:38x29x18cm
Highlight:

NEMA 23 Planetary Gearbox Stepper Motor

,

Planetary Gearbox Stepper Motor

Product Description

The stepper motor itself has the characteristic of open-loop control, which can achieve precise step angle control.

The deceleration stepper motor can provide sufficient force to drive heavy loads without causing motor overload or stall.



Features:

  • Versions in unipolar or bipolar are offered.

  • Deliver "multiple international certifications" for electrical and high-tech devices.

  • Our products are backed by a ten-year warranty, giving you peace of mind

  • Each model of stepper motor can be suitable for different scenarios

  • Customizations on request

Dimensions

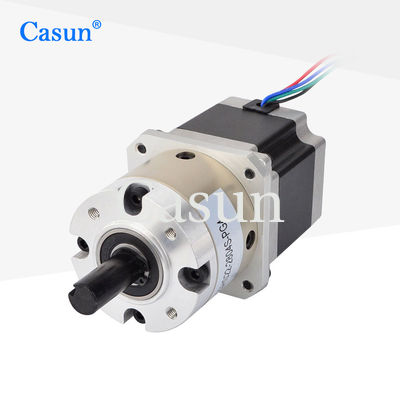

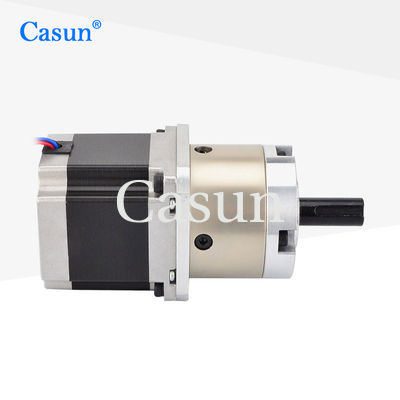

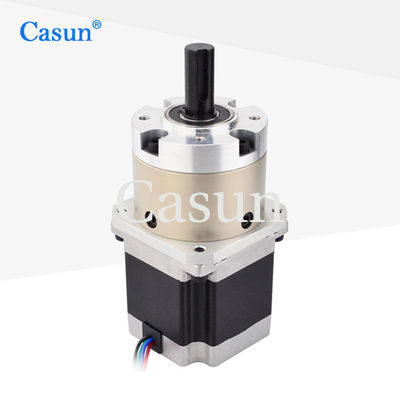

NEMA 23 Ratio 4/1 Planetary Gearbox Stepper Motor With Gearbox with CE ISO 0







Motor Specifications



Step Angel



1.8 °

Fram Size



57 mm

Number of Phase



2 Phase

Rated Current



2.8 A

Holding Torque



1250mN.m

Resistance



0.9 hm

Inductance



2.5 mH

Rotor Inertia



260 g-cm²

Motor weight



1.1 kg

Gear Reduction Ratio



4.25:1

Connection



Bipolar



Operating Specifications



Motor



Step Angle: 1.8°

Maximum  Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min



Gear Box



Housing Material:Metal

Bearing at Output:Ball Bearings

Max.Radial Load(12mm from flange):≤250N

Max.Shaft Axial Load:≤100N

Radial Play of Shaft (near to Flange):≤0.08m

Axial Play of Shaft:≤0.4mm

Backlash at No-load:≤2.5°













Torque Curves









Submodels

Motor Length Length of Gearbox Raio Efficiency
41 mm

54 mm

76 mm

83 mm

100 mm
 		 48 mm 3.6 90%
4.25
60 mm 12.96 80%
15.3
18.1
72 mm 46.66 70%
55.08
65.025
76.77




Download



If our standard motor cannot meet your needs,

we can customize the motor according to your needs


Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:
            Encoder          |               Brake           |              Gearbox            |           Shaft

NEMA 23 Ratio 4/1 Planetary Gearbox Stepper Motor With Gearbox with CE ISO 1 NEMA 23 Ratio 4/1 Planetary Gearbox Stepper Motor With Gearbox with CE ISO 2 NEMA 23 Ratio 4/1 Planetary Gearbox Stepper Motor With Gearbox with CE ISO 3 NEMA 23 Ratio 4/1 Planetary Gearbox Stepper Motor With Gearbox with CE ISO 4





Please click the "Get  a quote" button below to tell us your requirements.











Tags:

NEMA 23 Planetary Gearbox Stepper Motor

Planetary Gearbox Stepper Motor
