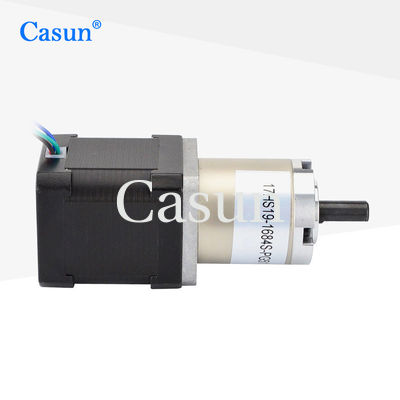

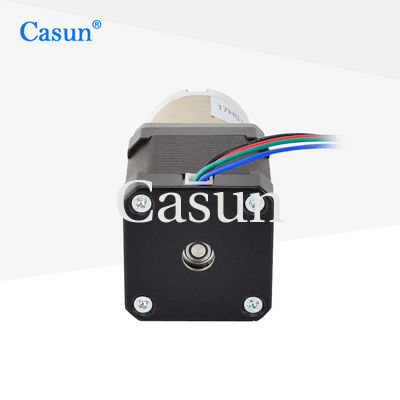

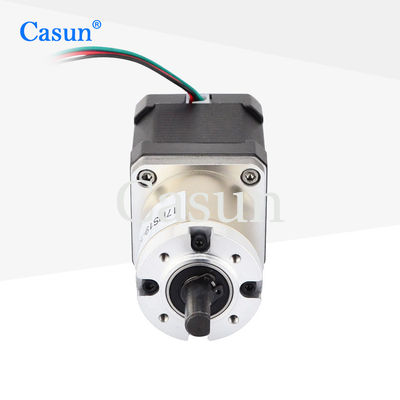

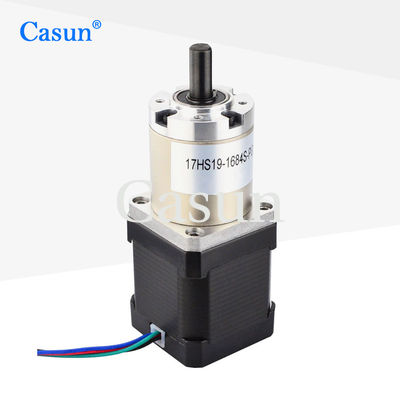

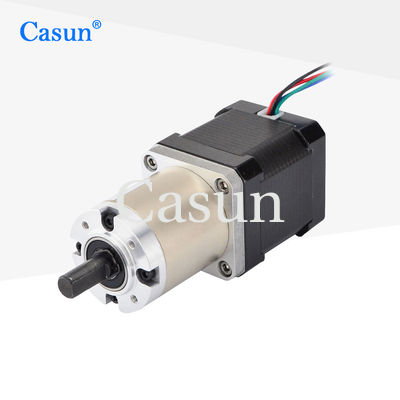

Gear reduction ratio 99.5/1 Planetary Stepper Motor 0.44mN.m NEMA 17 for Cnc Robot Arm

Gear reduction ratio 99.5/1 Planetary Stepper Motor 0.44mN.m NEMA 17 for Cnc Robot Arm

Brand Name:	Casun
Model Number:	17HS19-1684S-PG100
MOQ:	1PC
Price:	$16.49-$24.14
Payment Terms:	D/A, T/T, L/C, D/P
Supply Ability:	40000+PCS+Month

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

CE,ROHS,ISO

Holding Torque:

440mN.m

Lead Wire:

Length:

48mm

Rated Current:

1.68A

Rated Voltage:

12V

Gear Reduction Ratio:

99.5：1

Customized:

The Motor Can Be Designed &manufactured With Customized Request.

Packaging Details:

Carton:36x29x14cm

Highlight:

0.44mN.m Planetary Stepper Motor

NEMA 17 Planetary Stepper Motor

Cnc Robot Arm Planetary Stepper Motor

Product Description

Stepper motors can be programmed to achieve complex motion control, providing flexibility for automation and robotics technology.

The deceleration stepper motor can adjust its speed by changing the input pulse frequency, adapting to different work requirements and providing flexible operation modes.

Features:

Bipolar or unipolar versions available
We offer custom services and accept contract manufacturing. Wanted dealers! !
Provide "multiple international certifications" for high-tech industry and electronic industry equipment
offer custom services
Customizations on request

Dimensions

Motor Specifications

Step Angel	1.8 °
Fram Size	42 mm
Number of Phase	2 Phase
Rated Current	1.68 A
Holding Torque	440 mN.m
Resistance	1.65 hm
Inductance	2.8 mH
Rotor Inertia	38 g-cm²
Motor weight	0.56 kg
Gear Reduction Ratio	99.5:1
Connection	Bipolar

Operating Specifications

Motor

Step Angle: 1.8°

Maximum Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min

Gear Box

Housing Material:Metal
Bearing at Output:Ball Bearings
Max.Radial Load(12mm from flange):≤80N
Max.Shaft Axial Load:≤30N
Radial Play of Shaft (near to Flange):≤0.06mm
Axial Play of Shaft:≤0.3mm
Backlash at No-load:1.5°

Torque Curves

Submodels

Motor Length	Length of Gearbox	Raio	Efficiency
34 mm 40 mm 48 mm 60 mm	27.2 mm	3.71	90%
		5.18
	35 mm	13.76	80%
		19.2
		26.8
	42.7 mm	51	70%
		71
		99.5
		139

Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs

Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:
Encoder | Brake | Gearbox | Shaft

Gear reduction ratio 99.5/1 Planetary Stepper Motor 0.44mN.m NEMA 17 for Cnc Robot Arm 1

Please click the "Get a quote" button below to tell us your requirements.
