Home > products > Hybrid Stepper Motor > NEMA17 42X42X34mm 1.33A 22Ncm Stepper Motor for DIY 3D Printer CNC XYZ Printer

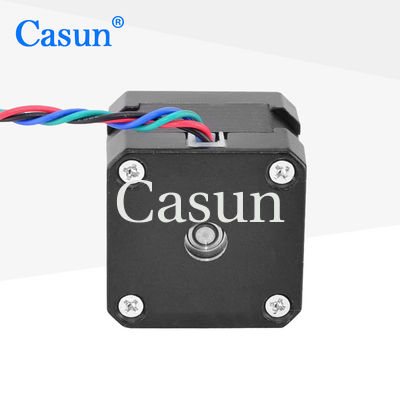

NEMA17 42X42X34mm 1.33A 22Ncm Stepper Motor for DIY 3D Printer CNC XYZ Printer
NEMA17 42X42X34mm 1.33A 22Ncm Stepper Motor for DIY 3D Printer CNC XYZ Printer
NEMA17 42X42X34mm 1.33A 22Ncm Stepper Motor for DIY 3D Printer CNC XYZ Printer
NEMA17 42X42X34mm 1.33A 22Ncm Stepper Motor for DIY 3D Printer CNC XYZ Printer
NEMA17 42X42X34mm 1.33A 22Ncm Stepper Motor for DIY 3D Printer CNC XYZ Printer
NEMA17 42X42X34mm 1.33A 22Ncm Stepper Motor for DIY 3D Printer CNC XYZ Printer

NEMA17 42X42X34mm 1.33A 22Ncm Stepper Motor for DIY 3D Printer CNC XYZ Printer

Product Details

Place of Origin: CHINA

Brand Name: Casun

Certification: CE,ROSH,ISO

Model Number: 42SHD4046-24BH

Payment & Shipping Terms

Minimum Order Quantity: 1PC

Price: $3.14-$5

Packaging Details: Carton:36x29x14cm

Delivery Time: 7-15 days

Payment Terms: D/A, T/T, L/C, D/P

Supply Ability: 40000+PCS+Month

Get Best Price

Product Details

Product Description
Product Details
Highlight:
Step Angel:
1.8°
Holding Torque:
220mN.m
Current:
1.33A
Motor Length:
34mm
Shaft:
Milling Flat Shaft 24mm Length
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Step Angel:
1.8°
Holding Torque:
220mN.m
Current:
1.33A
Motor Length:
34mm
Shaft:
Milling Flat Shaft 24mm Length
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Product Description

The 42mm Hybrid Stepper Motor Series offers powerful holding torque in a variety of sizes.

Widely used in various automation equipment, robots, and precision control systems.



Features:

  • Bipolar or unipolar versions available

  • Hybrid stepper construction

  • Available in single or double shaft versions

  • With 12 years of operations in China, we have successfully served more than 800 customers

  • Specializing in delivering personalized services is our area of expertise

Appearance

NEMA17 42X42X34mm 1.33A 22Ncm Stepper Motor for DIY 3D Printer CNC XYZ Printer 0

Dimensions

NEMA17 42X42X34mm 1.33A 22Ncm Stepper Motor for DIY 3D Printer CNC XYZ Printer 1

Motor Specifications



Step Angel

1.8 °

Fram Size

42 mm

Number of Phase

2 Phase

Rated Current

1.33 A

Holding Torque

220 mN.m

Resistance

2.1 ohm

Inductance

2.5 mH

Rotor Inertia

38 g-cm²

Motor weight

0.2 kg

Number of leads

4

Connection

Bipolar

Operating Specifications

Step Angle: 1.8°

Maximum  Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min







Torque Curves













Submodels

Model Holding Torque Step Angle Motor Length Type of Shaft Rated Current
42SHD4950 0.13N.m 1.8° 20mm D Shaft-20mm 1.0A
42SHD4003 0.26N.m 1.8° 34mm D Shaft-20mm 0.4A
42SHD0261 0.45N.m 1.8° 40mm D Shaft-20mm 1.68A
42SHD4425 0.59N.m 1.8° 48mm D Shaft-24mm 2.0A
42SHD4813 0.8N.m 1.8° 60mm D Shaft-24mm 2.1A





Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs


Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:

Encoder

Brake

Gearbox

Shaft
NEMA17 42X42X34mm 1.33A 22Ncm Stepper Motor for DIY 3D Printer CNC XYZ Printer 2 NEMA17 42X42X34mm 1.33A 22Ncm Stepper Motor for DIY 3D Printer CNC XYZ Printer 3 NEMA17 42X42X34mm 1.33A 22Ncm Stepper Motor for DIY 3D Printer CNC XYZ Printer 4 NEMA17 42X42X34mm 1.33A 22Ncm Stepper Motor for DIY 3D Printer CNC XYZ Printer 5



Please click the "Get a quote" button below to tell us your requirements.
