Casun 2 Phase Nema 34 hybrid stepper motor 86x86x69mm 4N.m high torque 4.0A with 4 axis / 3axis for CNC for Engraving machine

Casun 2 Phase Nema 34 hybrid stepper motor 86x86x69mm 4N.m high torque 4.0A with 4 axis / 3axis for CNC for Engraving machine

Casun 2 Phase Nema 34 hybrid stepper motor 86x86x69mm 4N.m high torque 4.0A with 4 axis / 3axis for CNC for Engraving machine

Brand Name: Casun
Model Number: 86SHD4003-32
MOQ: 1pcs
Price: $100-$390
Payment Terms: L/C, D/P, D/A, T/T
Supply Ability: 100000/pcs per month
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
CE, ISO, ROHS
Phase:
2
Type:
Hybrid
Holding Torque:
4Nm
Current / Phase:
4A
Step Angle(degrees):
1.8
Shaft:
32mm
Body:
69mm
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Packaging Details:
Carton:36x29x14cm
Highlight:

NEMA 34 hybrid stepper motor 4N.m high torque

,

86x86x69mm stepper motor for CNC machines

,

4 axis stepper motor for engraving machines

Product Description
Casun 2 Phase Nema 34 Hybrid Stepper Motor
86x86x69mm high torque 4N.m stepper motor with 4.0A rating, ideal for CNC and engraving machine applications.
Product Overview
Nema 34 Hybrid Stepper Motor, 86×86×69mm, 1.8 degree step angle, 2 phase design with 4N.m holding torque. This precision motor combines the characteristics of stepper motors, enabling precise positioning control for applications requiring high-precision positioning.
Package Includes

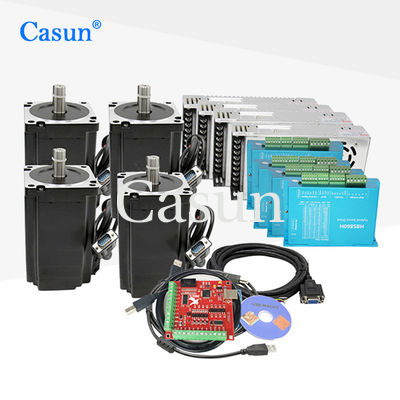

4 motors + 4 drivers + 4 power supplies + 1 controller
Key Features
  • Bipolar or unipolar versions available
  • Custom services and contract manufacturing available
  • Single- or double-shaft versions
  • Professional drivetrain solution specialist
  • Customizations available on request
Dimensions
Casun 2 Phase Nema 34 hybrid stepper motor 86x86x69mm 4N.m high torque 4.0A with 4 axis / 3axis for CNC for Engraving machine 0
Motor Specifications
ParameterSpecification
Step Angle1.8°
Frame Size86 mm
Number of Phase2 Phase
Rated Current4.0 A
Holding Torque4 N.m
Resistance1.1 ohm
Inductance8.5 mH
Rotor Inertia1000 g-cm²
Motor Weight2 kg
Shaft32 mm
ConnectionBipolar
Operating Specifications
Motor Operating Conditions
  • Maximum Temperature: 80°C maximum
  • Ambient Temperature: -20°C to 50°C
  • Storage Temperature: -20°C to 100°C
  • Humidity Range: 85% or less, non-condensing
  • Magnet Wire Insulation: Class B 130°C
  • Insulation Resistance: 100M Ohm at 500 VDC
  • Dielectric Strength: 500 VDC for 1 minute
Customization Options
If our standard motor cannot meet your requirements, we can customize the motor according to your specific needs. Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, and more.
Available Options
Casun 2 Phase Nema 34 hybrid stepper motor 86x86x69mm 4N.m high torque 4.0A with 4 axis / 3axis for CNC for Engraving machine 1
Encoder
Casun 2 Phase Nema 34 hybrid stepper motor 86x86x69mm 4N.m high torque 4.0A with 4 axis / 3axis for CNC for Engraving machine 2
Brake
Casun 2 Phase Nema 34 hybrid stepper motor 86x86x69mm 4N.m high torque 4.0A with 4 axis / 3axis for CNC for Engraving machine 3
Gearbox
Casun 2 Phase Nema 34 hybrid stepper motor 86x86x69mm 4N.m high torque 4.0A with 4 axis / 3axis for CNC for Engraving machine 4
Shaft
Please click the button below to tell us your requirements and get a customized quote.
Get a Quote
