1.8 Degree NEMA 17 High-precision Bipolar Stepper Motor 42*42*60mm 0.7N.m for CNC
  • 1.8 Degree NEMA 17 High-precision Bipolar Stepper Motor 42*42*60mm 0.7N.m for CNC
  • 1.8 Degree NEMA 17 High-precision Bipolar Stepper Motor 42*42*60mm 0.7N.m for CNC
  • 1.8 Degree NEMA 17 High-precision Bipolar Stepper Motor 42*42*60mm 0.7N.m for CNC
  • 1.8 Degree NEMA 17 High-precision Bipolar Stepper Motor 42*42*60mm 0.7N.m for CNC
  • 1.8 Degree NEMA 17 High-precision Bipolar Stepper Motor 42*42*60mm 0.7N.m for CNC
  • 1.8 Degree NEMA 17 High-precision Bipolar Stepper Motor 42*42*60mm 0.7N.m for CNC

1.8 Degree NEMA 17 High-precision Bipolar Stepper Motor 42*42*60mm 0.7N.m for CNC

Place of Origin CHINA
Brand Name Casun
Certification CE,ROHS,ISO
Model Number 42SHD0811-25BH
Product Details
Step Angel:
1.8°
Holding Torque:
700mN.m
Current:
0.8A
Motor Length:
60mm
Shaft:
Milling Flat Shaft 25mm Length
Payment & Shipping Terms
Minimum Order Quantity
1PC
Price
$3.14-$5
Packaging Details
Carton:36x29x14cm
Delivery Time
7-15 days
Payment Terms
D/A, T/T, L/C, D/P
Supply Ability
40000+PCS+Month
Product Description

NEMA 17 stepper motors typically have medium power output and are suitable for small to medium-sized applications.

Printers, engraving machines, 3D printers, and robots.



Features:

  • High torque and high precision

  • Each model of our stepper motor is suitable for various scenarios

  • Offer "multiple international certifications" for high-tech industry and electronic industry equipment

  • Offer custom services

  • Operating in China for 12 years, we have served over 800 customers





Motor Specifications



Step Angel

1.8 °

Fram Size

42 mm

Number of Phase

2 Phase

Rated Current

0.8 A

Holding Torque

700 mN.m

Resistance

20 ohm

Inductance

42.5 mH

Rotor Inertia

102 g-cm²

Motor weight

0.45 kg

Number of leads

4

Connection

Bipolar

Appearance

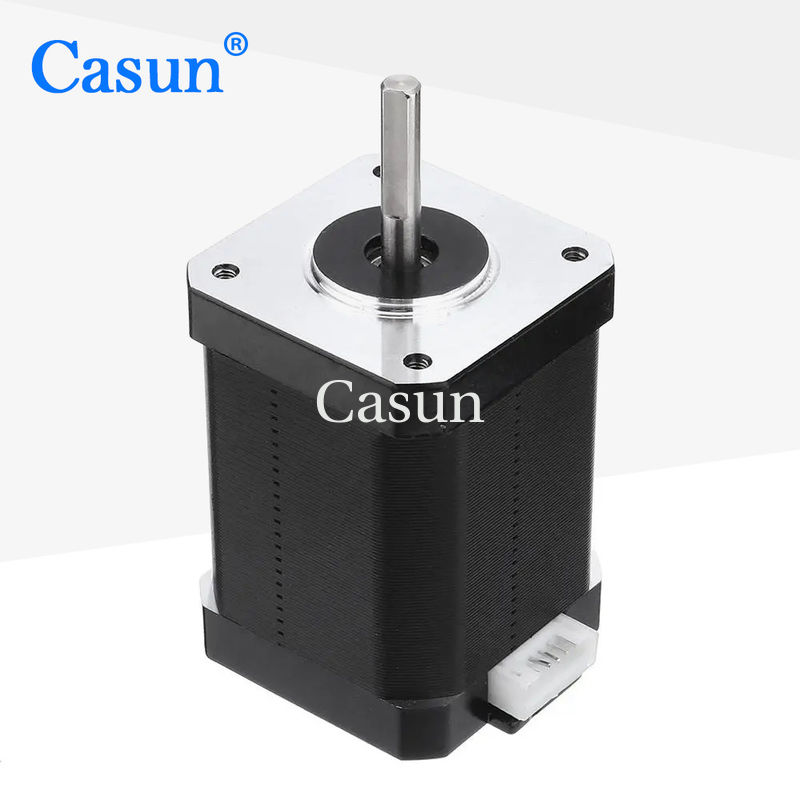

1.8 Degree NEMA 17 High-precision Bipolar Stepper Motor 42*42*60mm 0.7N.m for CNC 0

Dimensions

1.8 Degree NEMA 17 High-precision Bipolar Stepper Motor 42*42*60mm 0.7N.m for CNC 1


Operating Specifications

Step Angle: 1.8°

Maximum  Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min







Torque Curves













Submodels

Model Holding Torque Step Angle Motor Length Type of Shaft Rated Current
42SHD4950 0.13N.m 1.8° 20mm D Shaft-20mm 1.0A
42SHD4003 0.26N.m 1.8° 34mm D Shaft-20mm 0.4A
42SHD0261 0.45N.m 1.8° 40mm D Shaft-20mm 1.68A
42SHD4425 0.59N.m 1.8° 48mm D Shaft-24mm 2.0A
42SHD4813 0.8N.m 1.8° 60mm D Shaft-24mm 2.1A





Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs


Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:

Encoder

Brake

Gearbox

Shaft

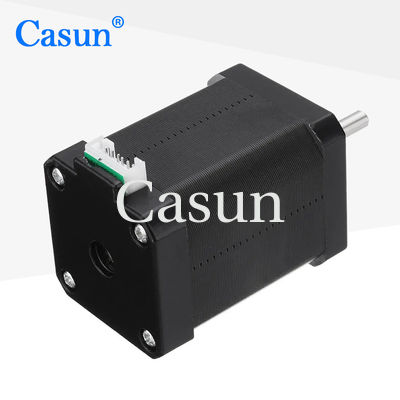

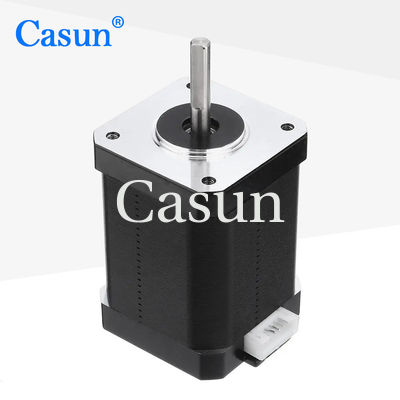

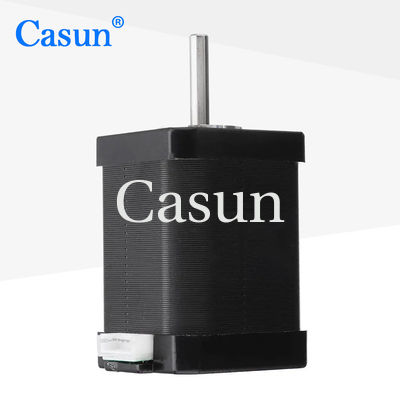

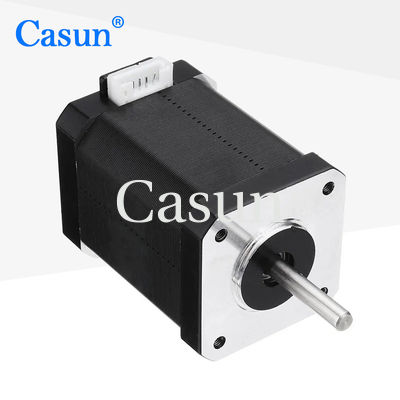

1.8 Degree NEMA 17 High-precision Bipolar Stepper Motor 42*42*60mm 0.7N.m for CNC 2 1.8 Degree NEMA 17 High-precision Bipolar Stepper Motor 42*42*60mm 0.7N.m for CNC 3 1.8 Degree NEMA 17 High-precision Bipolar Stepper Motor 42*42*60mm 0.7N.m for CNC 4 1.8 Degree NEMA 17 High-precision Bipolar Stepper Motor 42*42*60mm 0.7N.m for CNC 5
