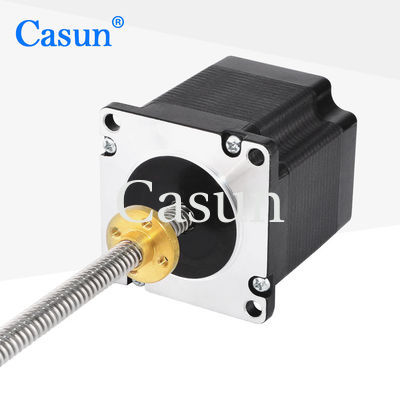

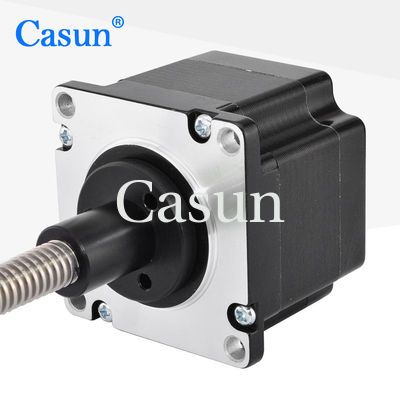

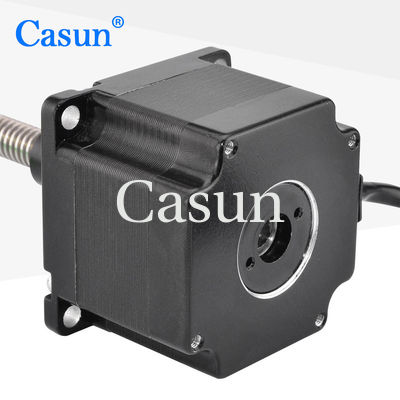

2.8A Nema 23 Stepper Motor With 4 Lead Screw Captive Stepper Motor
  • 2.8A Nema 23 Stepper Motor With 4 Lead Screw Captive Stepper Motor
  • 2.8A Nema 23 Stepper Motor With 4 Lead Screw Captive Stepper Motor
  • 2.8A Nema 23 Stepper Motor With 4 Lead Screw Captive Stepper Motor
  • 2.8A Nema 23 Stepper Motor With 4 Lead Screw Captive Stepper Motor
  • 2.8A Nema 23 Stepper Motor With 4 Lead Screw Captive Stepper Motor

2.8A Nema 23 Stepper Motor With 4 Lead Screw Captive Stepper Motor

Place of Origin China
Brand Name Casun
Certification CE,ROHS,ISO
Model Number 57SHD0408-160NT
Product Details
Step Angel:
1.8°
Holding Torque:
1000mN.m
Current:
2.8A
Motor Length:
54mm
Shaft:
Screw Shaft 81mm Length
Phase:
2
Rated Voltage:
3.36V
Detent Torque:
40mN.m
High Light:

2.8A Nema 23 Stepper Motor

,

Captive Nema 23 Stepper Motor

Payment & Shipping Terms
Minimum Order Quantity
1PC
Price
$9.68-$14
Packaging Details
Carton:38x29xc14m
Delivery Time
7-15 days
Payment Terms
D/A, T/T, L/C, D/P
Supply Ability
40000+PCS+Month
Product Description

57*57mm Casun 2.8A Nema 23 Stepper Motor with 4-Lead Screw Captive Stepper Motor

57*57*54mm NEMA 23 Captive Stepper Motor 2.8A 1.0N.m with CE

The 57mm Hybrid Stepper Motor Series offers powerful holding torque in a variety of sizes.

Use with a microstepping driver to reduce vibration and achieve higher step resolution.

Choose a baseline version or request your own customized configuration.



Features:

  • Bipolar or unipolar versions available

  • Hybrid stepper construction

  • Available in single or double shaft versions

  • CE and RoHS approved

  • Our engineers will be in touch within 48 hours to provide the best solution

Dimensions

2.8A Nema 23 Stepper Motor With 4 Lead Screw Captive Stepper Motor 0

















Motor Specifications

Step Angel

1.8 °

Fram Size

57 mm

Number of Phase

2 Phase

Rated Current

2.8 A

Holding Torque

1000 mN.m

Resistance

1.2 ohm

Inductance

4.2 mH

Rotor Inertia

260 g-cm²

Motor weight

0.8 kg

Number of leads

4

Connection

Bipolar


Operating Specifications



Step Angle: 1.8°

Maximum  Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min

Shaft Radial Play:0.02Max. (450g-load)

Shaft Axial Play:0.08Max. (450g-load)

Max. radial force:28N (20mm from the flange)

Max. axial force):10N







Submodels



Body Length



Diameter of Screw Pitch Length of Screw

41mm



54mm



76mm



83mm



100mm

8 1 20 ~ 1000m
2
4
8
9.53 1.5875
3.175
25.4
10 2
4
10
20
12 4
15 4
8





Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs


Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

FAQ

1. who are we?

We are based in Guangdong, China, start from 2011,sell to Domestic Market(63.00%),Western Europe(12.00%),North America(9.00%),Eastern Asia(8.00%),Northern Europe(2.00%),Eastern Europe(00.00%),Southeast Asia(00.00%),Oceania(00.00%),Mid East(00.00%),Southern Europe(00.00%),South Asia(00.00%). There are total about 51-100 people in our office.



2. how can we guarantee quality?

Always a pre-production sample before mass production;

Always final Inspection before shipment;



3.what can you buy from us?

Stepper Motor,BLDC Motor



4. why should you buy from us not from other suppliers?

We are specialized in producing and selling stepper motors for more than 11 years.



5. what services can we provide?

Accepted Delivery Terms: FOB,CFR,CIF,EXW,Express Delivery;

Accepted Payment Currency:USD,CNY;

Accepted Payment Type: T/T,L/C,D/P D/A,,PayPal;

Language Spoken:English,Chinese,Japanese

Options:

Encoder

Brake

Gearbox

Shaft

2.8A Nema 23 Stepper Motor With 4 Lead Screw Captive Stepper Motor 1 2.8A Nema 23 Stepper Motor With 4 Lead Screw Captive Stepper Motor 2 2.8A Nema 23 Stepper Motor With 4 Lead Screw Captive Stepper Motor 3 2.8A Nema 23 Stepper Motor With 4 Lead Screw Captive Stepper Motor 4
