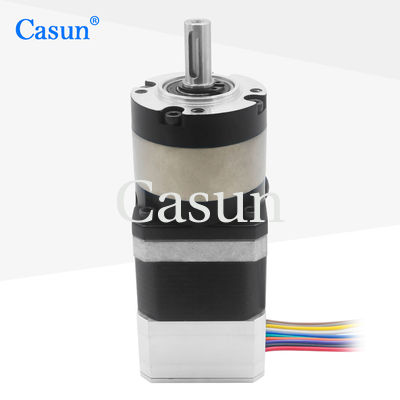

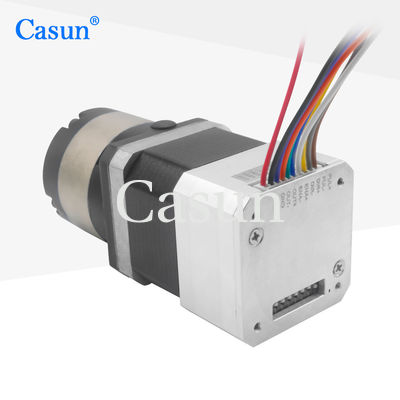

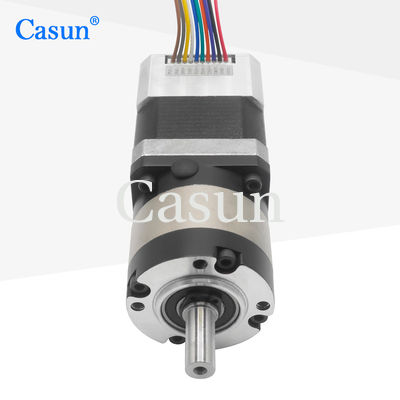

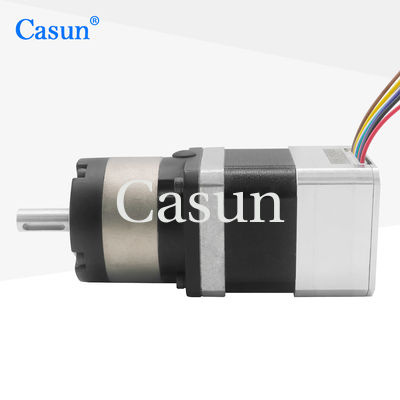

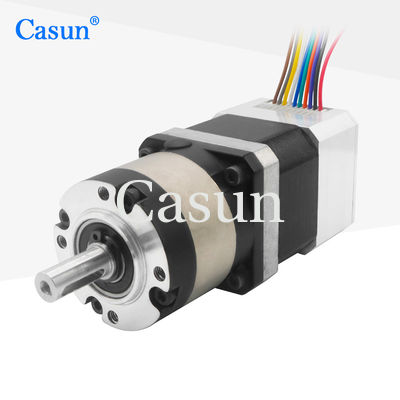

NEMA 17 Gearbox 5:1 Stepper Motor With Encoder 2.0A For Automation Equipment
NEMA 17 Gearbox 5:1 Stepper Motor With Encoder 2.0A For Automation Equipment
NEMA 17 Gearbox 5:1 Stepper Motor With Encoder 2.0A For Automation Equipment
NEMA 17 Gearbox 5:1 Stepper Motor With Encoder 2.0A For Automation Equipment
NEMA 17 Gearbox 5:1 Stepper Motor With Encoder 2.0A For Automation Equipment
NEMA 17 Gearbox 5:1 Stepper Motor With Encoder 2.0A For Automation Equipment
NEMA 17 Gearbox 5:1 Stepper Motor With Encoder 2.0A For Automation Equipment

NEMA 17 Gearbox 5:1 Stepper Motor With Encoder 2.0A For Automation Equipment

Product Details

Place of Origin: CHINA

Brand Name: Casun

Certification: CE,ROHS,ISO

Model Number: 42SHD0244-5PLE-PSM42

Payment & Shipping Terms

Minimum Order Quantity: 1PC

Price: $23.3-$26.3

Packaging Details: Carton:36x29x14cm

Delivery Time: 7-15 days

Payment Terms: D/A, T/T, L/C, D/P

Supply Ability: 40000+PCS+Month

Get Best Price

Product Details

Product Description
Product Details
Highlight:

Gearbox Stepper Motor

,

NEMA 17 Stepper Motor

,

Automation Equipment Stepper Motor

Body:
40mm
Step Angle(degrees):
1.8 Degree
Reduction Ratio:
5:1
Current:
2.0A
Weight:
0.85kg
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Body:
40mm
Step Angle(degrees):
1.8 Degree
Reduction Ratio:
5:1
Current:
2.0A
Weight:
0.85kg
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Product Description

The encoder provides precise position and speed feedback, allowing the motor to achieve more precise motion control in a closed-loop control system.

The combination of stepper motor and reducer provides high-precision motion control.



Features:

  • Bipolar or unipolar versions available

  • We offer tailored services and invite contract manufacturing

  • A decade-long warranty for assured purchasing

  • We are looking for dealers!

  • In search of distributors!

Dimensions

NEMA 17 Gearbox 5:1 Stepper Motor With Encoder 2.0A For Automation Equipment 0







Motor Specifications

Step Angel



1.8 °

Fram Size



42 mm

Number of Phase



2 Phase

Rated Current



2.0 A

Holding Torque



450 mN.m

Resistance



1.1 ohm

Inductance



2.6 mH

Rotor Inertia



57 g-cm²

Motor weight



0.6kg

Gear Reduction Ratio



5:1

Connection



Bipolar





Operating Specifications



Motor



Step Angle: 1.8°

Maximum  Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min



Gear Box



Housing Material:Metal
Bearing at Output:Ball Bearings
Max.Radial Load(12mm from flange):≤80N
Max.Shaft Axial Load:≤30N
Radial Play of Shaft (near to Flange):≤0.06mm
Axial Play of Shaft:≤0.3mm
Backlash at No-load:1.5°











Torque Curves







Submodels

Motor Length Length of Gearbox Raio Efficiency
34 mm

40 mm

48 mm

60 mm		 27.2 mm 3.71 90%
5.18
35 mm 13.76 80%
19.2
26.8
42.7 mm 51 70%
71
99.5
139


Download





If our standard motor cannot meet your needs,

we can customize the motor according to your needs


Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:
            Encoder          |               Brake           |              Gearbox            |           Shaft

NEMA 17 Gearbox 5:1 Stepper Motor With Encoder 2.0A For Automation Equipment 1 NEMA 17 Gearbox 5:1 Stepper Motor With Encoder 2.0A For Automation Equipment 2 NEMA 17 Gearbox 5:1 Stepper Motor With Encoder 2.0A For Automation Equipment 3 NEMA 17 Gearbox 5:1 Stepper Motor With Encoder 2.0A For Automation Equipment 4





Please click the "Get  a quote" button below to tell us your requirements.
